SPEC® ACCEL_ACC Result

Copyright 2014-2015 Standard Performance Evaluation Corporation

Dell (Test Sponsor: Technische Universitaet Dresden)

NVIDIA Tesla K40c

Precision T5600

SPECaccel_acc_base = 1.91

SPECaccel_acc_energy_base = 2.94

SPECaccel_acc_peak = Not Run

SPECaccel_acc_energy_peak = --

ACCEL license: 37A Test date: Sep-2014
Test sponsor: Technische Universitaet Dresden Hardware Availability: Apr-2013
Tested by: Technische Universitaet Dresden Software Availability: Aug-2014

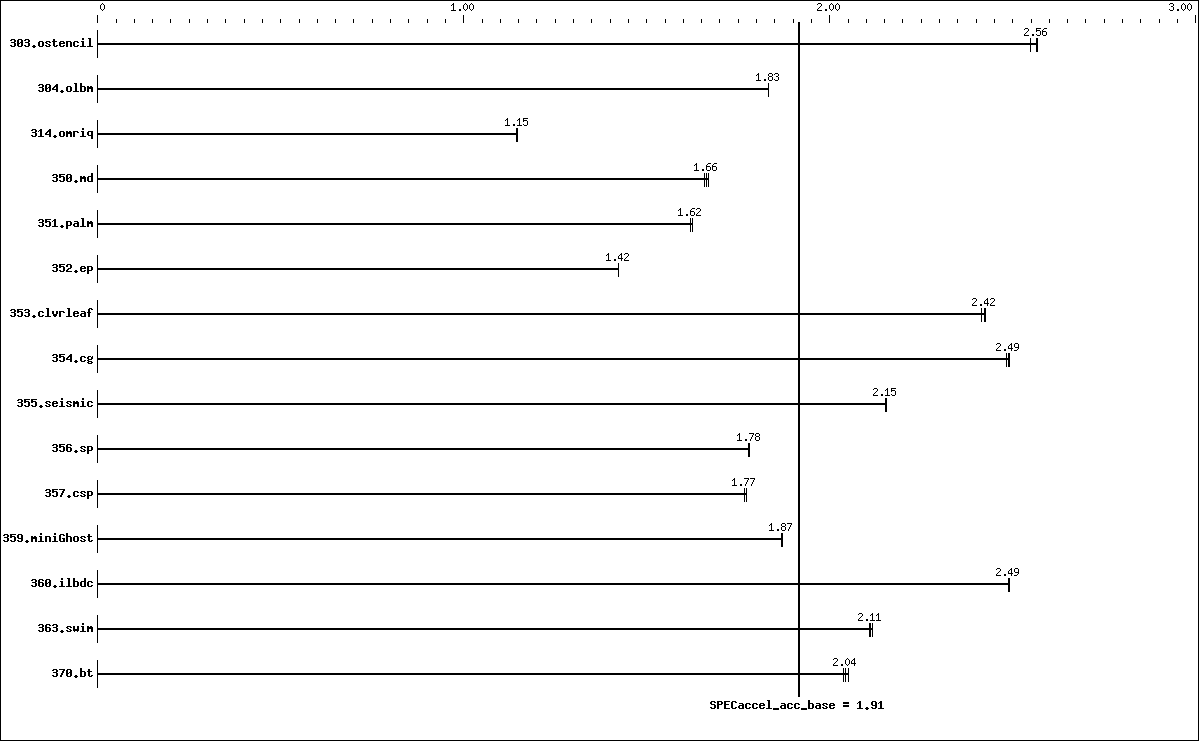

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2667
CPU Characteristics:
CPU MHz: 2900
CPU MHz Maximum: 3500
FPU: Integrated
CPU(s) enabled: 6 cores, 1 chip, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (4 x 4 GB 2Rx4 PC3-12800R-9, ECC)
Disk Subsystem: 1 TB SATA disk on Dell PERC H310 PCIe host-based
RAID card
Other Hardware: None
Accelerator
Accel Model Name: Tesla K40c
Accel Vendor: NVIDIA
Accel Name: NVIDIA Tesla K40c
Type of Accel: GPU
Accel Connection: PCIe 3.0 16x
Does Accel Use ECC: yes
Accel Description: NVIDIA Tesla K40c GPU, 2880 CUDA cores, 745MHz -
875MHz, 12 GB GDDR5 RAM
Accel Driver: NVIDIA UNIX x86_64 Kernel Module 340.32
Software
Operating System: SLES11 SP3
SUSE Linux Enterprise Server 11 (x86_64)
3.0.101-0.35-default
Compiler: PGI Accelerator Fortran/C/C++ Workstation,
Release 14.9
File System: ext3
System State: Run level 3 (multi user)
Other Software: NVIDIA CUDA 6.0.9, driver 340.32
Power
Power Supply: 825 W
Power Supply Details: Dell D825EF-00
Max. Power (W): 269.81
Idle Power (W): 86.53
Min. Temperature (C): 23.06
Power Analyzer
Power Analyzer: Power Analyzer
Hardware Vendor: ZES Zimmer
Model: LMG450
Serial Number: 07510905
Input Connection: RS232 via USB-adapter
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Calibration By: ZES Zimmer
Calibration Label: 04300751001
Calibration Date: 11.05.2013
PTDaemon Version: 1.6.2 (372e138a; 2013-12-04)
Setup Description: connected to the single power supply that powers
the system
Current Ranges Used: 1.2A, 2.5A
Voltage Range Used: 250V
Temperature Meter
Temperature Meter: Temperature Meter
Hardware Vendor: Digi
Model: Watchport/H
Serial Number: W00513713
Input Connection: USB
PTDaemon Version: 1.6.2 (372e138a; 2013-12-04)
Setup Description: positioned in front of intake fan

Base Results Table

Benchmark Seconds Ratio Energy
(kJ)
Maximum
Power
Average
Power
Energy
Ratio
Seconds Ratio Energy
(kJ)
Maximum
Power
Average
Power
Energy
Ratio
Seconds Ratio Energy
(kJ)
Maximum
Power
Average
Power
Energy
Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
303.ostencil 56.5  2.57  14.7  268   261   3.59  56.5  2.56  14.9  270   264   3.54  56.9  2.55  14.9  269   262   3.55
304.olbm 248    1.83  55.0  225   222   2.84  248    1.83  55.1  226   222   2.83  248    1.83  55.0  225   222   2.84
314.omriq 833    1.15  205    247   246   1.86  836    1.14  206    247   246   1.86  833    1.15  205    248   246   1.86
350.md 152    1.66  35.7  239   235   2.63  152    1.66  35.6  239   235   2.64  151    1.67  35.5  239   235   2.65
351.palm 228    1.62  41.7  191   182   2.56  229    1.62  41.7  191   183   2.56  228    1.63  41.5  192   182   2.58
352.ep 373    1.42  72.0  196   193   2.28  373    1.42  72.1  195   193   2.28  372    1.42  72.0  196   193   2.28
353.clvrleaf 184    2.42  44.9  251   245   3.51  183    2.43  44.9  251   245   3.51  184    2.41  45.0  251   244   3.50
354.cg 164    2.49  36.5  245   222   3.84  164    2.49  36.4  245   222   3.84  164    2.48  36.5  244   222   3.83
355.seismic 172    2.16  39.7  241   231   3.25  172    2.15  39.7  241   231   3.25  172    2.15  39.7  242   231   3.25
356.sp 155    1.78  33.9  221   218   2.74  155    1.78  34.0  222   219   2.73  155    1.78  34.0  222   219   2.73
357.csp 153    1.77  31.7  212   207   2.78  152    1.77  31.7  213   208   2.77  153    1.77  31.9  213   209   2.76
359.miniGhost 197    1.87  41.9  234   212   2.83  198    1.87  41.9  235   212   2.84  197    1.87  41.9  234   212   2.84
360.ilbdc 147    2.49  35.3  248   240   3.68  148    2.49  35.2  248   239   3.69  147    2.49  35.3  248   240   3.68
363.swim 109    2.11  22.8  211   209   3.33  109    2.11  22.8  211   210   3.32  109    2.12  22.8  212   210   3.33
370.bt 109    2.04  23.6  219   216   3.21  109    2.05  23.5  219   217   3.21  110    2.04  23.6  219   216   3.20

Operating System Notes

 continuously upgraded via SLES update manager

Platform Notes

 Sysinfo program /home/alex/accel-1.0/Docs/sysinfo
 $Rev: 6874 $ $Date:: 2013-11-20 #$ 0953404ef7e75a5f9bbb534c6de3f831
 running on playground Fri Sep 12 19:19:59 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2667 0 @ 2.90GHz
       1 "physical id"s (chips)
       12 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 6
       siblings  : 12
       physical 0: cores 0 1 2 3 4 5
    cache size : 15360 KB

 From /proc/meminfo
    MemTotal:       16256140 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 11 (x86_64)

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 11 (x86_64)
       VERSION = 11
       PATCHLEVEL = 3

 uname -a:
    Linux playground 3.0.101-0.35-default #1 SMP Wed Jul 9 11:43:04 UTC 2014
    (c36987d) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Sep 12 17:34 last=S

 SPEC is set to: /home/alex/accel-1.0
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda3      ext3  866G   82G  740G  10% /home

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

Base Compiler Invocation

C benchmarks:

 pgcc

Fortran benchmarks:

 pgfortran

Benchmarks using both Fortran and C:

 pgcc   pgfortran

Base Optimization Flags

C benchmarks:

 -acc   -fast   -ta=tesla

Fortran benchmarks:

 -acc   -fast   -ta=tesla

Benchmarks using both Fortran and C:

353.clvrleaf:  -acc   -fast   -ta=tesla
359.miniGhost:  -acc   -fast   -ta=tesla   -Mnomain

The flags file that was used to format this result can be browsed at
http://www.spec.org/accel/flags/pgi2014_flags.20150303.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/accel/flags/pgi2014_flags.20150303.00.xml.
