SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL385 (AMD Opteron 254)

SPECfp®2006 = 13.0

CPU2006 license: 3 Test date: Apr-2006
Test sponsor: Hewlett-Packard Company Hardware Availability: Oct-2005
Tested by: Hewlett-Packard Company Software Availability: Apr-2006

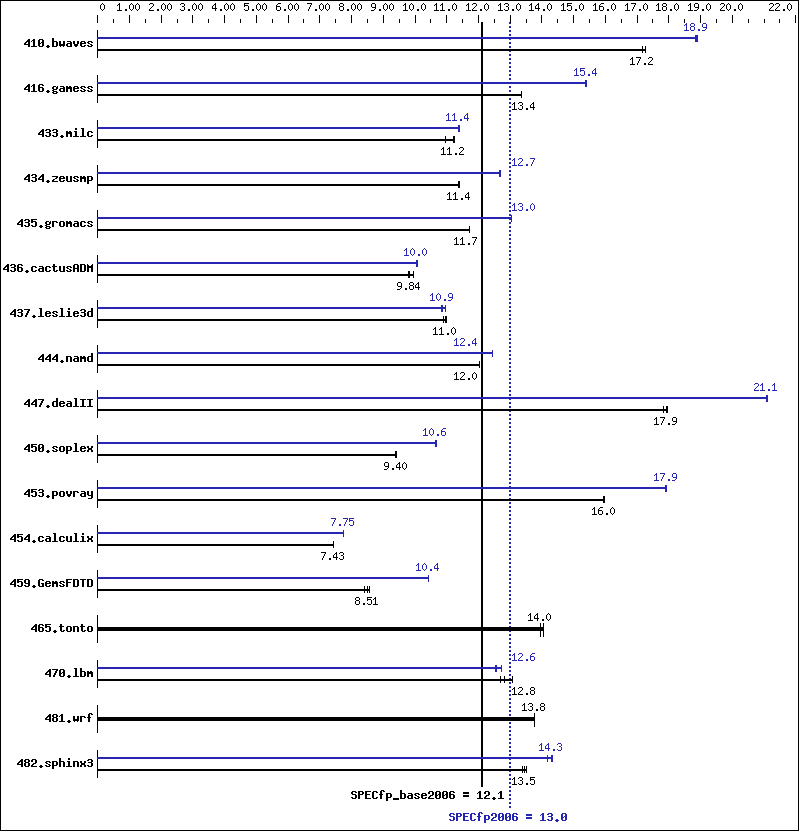

Benchmark results graph
Hardware
CPU Name: AMD Opteron 254
CPU Characteristics: 2.8GHz, 1MB L2 cache
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 1 core/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per chip
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2048 MB PC3200 CL3.0)
Disk Subsystem: 1x146GB 10K Ultra320 SCSI
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 9 (x86_64) SP 3
SuSE kernel 2.6.5-7.244-smp
Compiler: PathScale EKO Compiler Suite, Release 2.4
PGI C Compiler 6.1-3 for Linux (64-bit)
PGI Fortran Compiler 6.1-3 for Linux (64-bit)
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 787 17.3  791 17.2  792 17.2  720 18.9  719 18.9  721 18.8
416.gamess 1467 13.4  1465 13.4  1466 13.4  1273 15.4  1272 15.4  1272 15.4
433.milc 837 11.0  819 11.2  816 11.3  808 11.4  806 11.4  806 11.4
434.zeusmp 799 11.4  799 11.4  800 11.4  718 12.7  717 12.7  718 12.7
435.gromacs 610 11.7  609 11.7  609 11.7  548 13.0  548 13.0  548 13.0
436.cactusADM 1200 9.96 1218 9.81 1215 9.84 1189 10.0  1189 10.0  1185 10.1
437.leslie3d 857 11.0  856 11.0  862 10.9  858 11.0  865 10.9  867 10.8
444.namd 667 12.0  667 12.0  667 12.0  645 12.4  645 12.4  645 12.4
447.dealII 638 17.9  642 17.8  637 18.0  543 21.1  543 21.1  542 21.1
450.soplex 884 9.43 887 9.40 890 9.37 782 10.7  784 10.6  784 10.6
453.povray 333 16.0  333 16.0  334 15.9  297 17.9  297 17.9  297 17.9
454.calculix 1109 7.44 1110 7.43 1110 7.43 1065 7.75 1065 7.75 1065 7.75
459.GemsFDTD 1261 8.41 1247 8.51 1240 8.56 1017 10.4  1016 10.4  1018 10.4
465.tonto 701 14.0  705 14.0  706 13.9  701 14.0  705 14.0  706 13.9
470.lbm 1052 13.1  1071 12.8  1082 12.7  1080 12.7  1093 12.6  1097 12.5
481.wrf 811 13.8  812 13.8  811 13.8  811 13.8  812 13.8  811 13.8
482.sphinx3 1441 13.5  1448 13.5  1457 13.4  1361 14.3  1363 14.3  1376 14.2

General Notes

 BIOS Configuration Notes
   Node Interleaving is Disabled
 Other Configuration Notes
    Taskset utility used to bind process to CPU(s)

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast

Benchmarks using both Fortran and C:

 -Ofast

Peak Compiler Invocation

C benchmarks (except as noted below):

 pgcc
470.lbm:  pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks (except as noted below):

 pathf95
434.zeusmp:  pgf90
459.GemsFDTD:  pgf90

Benchmarks using both Fortran and C (except as noted below):

 pathcc   pathf95
454.calculix:  pgcc   pgf90

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -c9x   -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mipa=nolocalarg(pass 2)   -Mipa=vestigial(pass 2)   -Mpfo(pass 2)   -tp k8-64   -fastsse
470.lbm:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
482.sphinx3:  -c9x   -tp k8-64   -fastsse   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -Msignextend

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
447.dealII:  -Ofast   -m32   -fno-exceptions
450.soplex:  -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2
434.zeusmp:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -tp k8-64   -fastsse   -Mfprelaxed   -Mvect=fuse
437.leslie3d:  -O3   -OPT:Ofast
459.GemsFDTD:  -tp k8-64   -fastsse   -Munroll=n:4
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -c9x   -tp k8-64   -fastsse   -Mnolre   -Mipa=fast   -Mipa=inline
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks (except as noted below):

 -w
470.lbm:  No flags used

Fortran benchmarks:

434.zeusmp:  -w
459.GemsFDTD:  -w

Benchmarks using both Fortran and C:

454.calculix:  -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.04.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.04.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2016 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v91.
Report generated on Tue Sep 13 11:17:01 2016 by SPEC CPU2006 HTML formatter v6932.
Originally published on 24 August 2006.
