SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X2100

SPECfp®2006 = 12.4

CPU2006 license: 6 Test date: Apr-2006
Test sponsor: Sun Microsystems Hardware Availability: May-2006
Tested by: Sun Microsystems Software Availability: Jul-2006

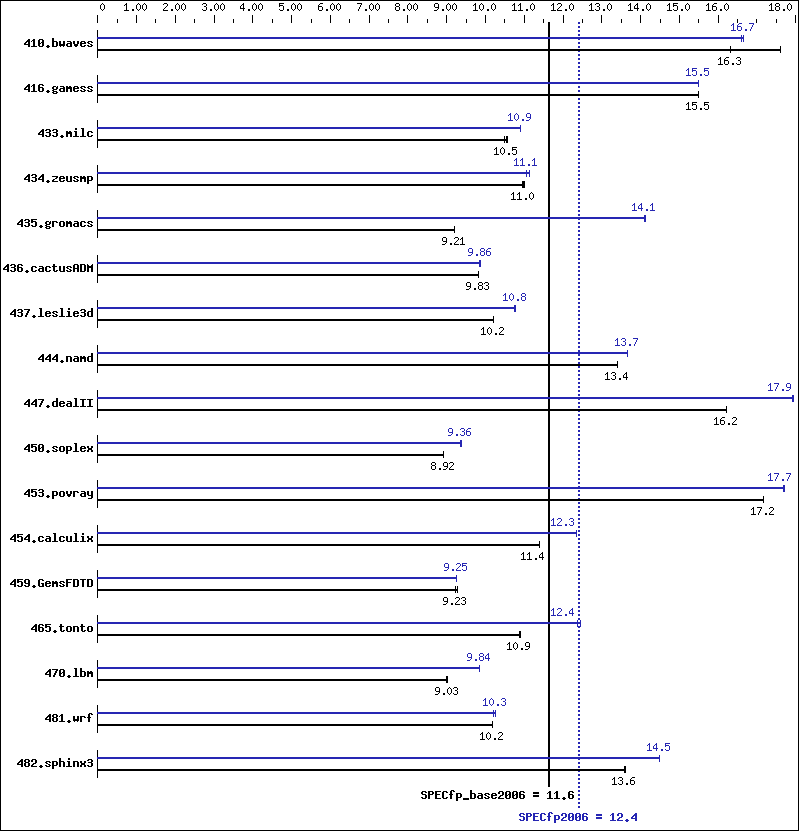

Benchmark results graph
Hardware
CPU Name: AMD Opteron 156
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 1 core/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per chip
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB, PC3200 CL3 ECC)
Disk Subsystem: SATA,80GB,10K RPM
Other Hardware: None
Software
Operating System: Solaris 10 1/06
Compiler: Sun Studio 11 with patch 120759-06
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 772 17.6  832 16.3  833 16.3  819 16.6  816 16.7  816 16.7
416.gamess 1264 15.5  1264 15.5  1264 15.5  1264 15.5  1264 15.5  1264 15.5
433.milc 876 10.5  871 10.5  870 10.6  842 10.9  842 10.9  842 10.9
434.zeusmp 830 11.0  830 11.0  828 11.0  818 11.1  824 11.0  823 11.1
435.gromacs 775 9.21 775 9.21 775 9.21 507 14.1  507 14.1  506 14.1
436.cactusADM 1216 9.83 1216 9.82 1216 9.83 1215 9.83 1212 9.86 1211 9.87
437.leslie3d 920 10.2  920 10.2  920 10.2  874 10.8  873 10.8  873 10.8
444.namd 599 13.4  599 13.4  599 13.4  587 13.7  587 13.7  587 13.7
447.dealII 705 16.2  706 16.2  706 16.2  638 17.9  638 17.9  638 17.9
450.soplex 936 8.91 935 8.92 934 8.93 889 9.38 891 9.36 892 9.35
453.povray 310 17.2  310 17.2  310 17.2  301 17.7  301 17.7  301 17.7
454.calculix 724 11.4  724 11.4  724 11.4  668 12.3  668 12.3  668 12.3
459.GemsFDTD 1144 9.28 1150 9.23 1151 9.22 1148 9.25 1148 9.25 1148 9.25
465.tonto 902 10.9  904 10.9  904 10.9  791 12.4  795 12.4  795 12.4
470.lbm 1526 9.01 1522 9.03 1522 9.03 1396 9.84 1396 9.84 1396 9.84
481.wrf 1097 10.2  1097 10.2  1097 10.2  1096 10.2  1088 10.3  1088 10.3
482.sphinx3 1434 13.6  1435 13.6  1433 13.6  1346 14.5  1346 14.5  1346 14.5

Operating System Notes


 ulimit -s 131072  (shell): increases stack


 /etc/system parameters
    tune_t_fsflushr=1
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=900
       Causes pages older than the listed number of seconds to
       be written by fsflush.

Platform Notes


 Default BIOS settings were used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xarch=amd64a

C++ benchmarks:

 -fast   -xipo=2   -xarch=amd64a   -library=stlport4

Fortran benchmarks:

 -fast   -xipo=2   -xarch=amd64a

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a

Base Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Fortran benchmarks:

 -V

Benchmarks using both Fortran and C:

 -V

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

436.cactusADM:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xarch=amd64a   -xipo=2   -xprefetch=auto   -xprefetch_level=3   -xpagesize=2m
470.lbm:  -fast   -xarch=amd64a   -xpagesize=2m   -W2,-Ainline:inc=200   -W2,-Ainline:cs=500   -xprefetch_level=3
482.sphinx3:  -fast   -xarch=amd64a   -xrestrict   -xipo=2   -xprefetch=auto   -xpagesize=2m   -Wd,-iropt-prof   -W2,-Ashort_ldst:ldld   -W2,-Ainline:rs=50   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xipo=2   -library=stlport4
447.dealII:  -fast   -xarch=amd64a   -xipo=2   -xvector   -Qoption iropt -Abcopy   -xalias_level   -xrestrict   -xregs=frameptr   -library=stlport4
450.soplex:  -fast   -xipo=2   -xarch=sse2a   -library=stlport4
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  -fast   -xarch=amd64a   -unroll=5   -stackvar   -xO4   -xipo=2   -xprefetch_level=3   -Qoption iropt -Rloop_dist
416.gamess:  -fast   -xarch=amd64a   -xipo=2   -xprefetch_level=3
434.zeusmp:  -fast   -xarch=amd64a   -xipo=2   -xregs=frameptr
437.leslie3d:  -fast   -xipo=2   -xarch=sse2a
459.GemsFDTD:  -fast   -xarch=amd64a   -xipo=2   -xprefetch_level=3   -xpagesize=2m
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xipo=2   -xvector=lib   -xalias   -xdepend   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a   -Wu,-fsimple=3   -Qoption ube -fsimple=3
436.cactusADM:  -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a
454.calculix:  -fast(cc)   -fast(f90)   -xarch=amd64a   -xpagesize=2m   -xprefetch=auto   -xprefetch_level=3   -W2,-Ainline:inc=200   -W2,-Ainline:cs=500   -unroll=5   -stackvar   -xO4   -xipo=2   -Qoption iropt -Rloop_dist
481.wrf:  Same as 436.cactusADM

Peak Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Fortran benchmarks:

 -V

Benchmarks using both Fortran and C:

 -V

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio-Opteron.20090715.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio-Opteron.20090715.02.xml.
