SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X4200

CPU2006 license: 6 Test date: Apr-2006
Test sponsor: Sun Microsystems Hardware Availability: Dec-2005
Tested by: Sun Microsystems Software Availability: Jul-2006

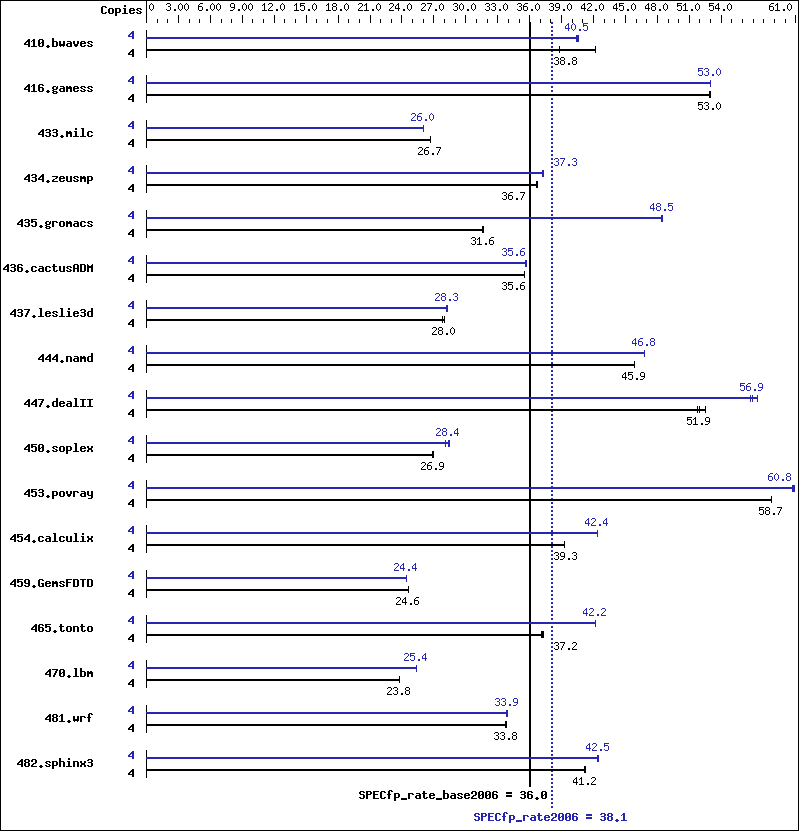

Benchmark results graph
Hardware
CPU Name: AMD Opteron 285
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB, PC3200 CL3 DDR ECC Reg)
Disk Subsystem: SAS,36GB,10K RPM
Other Hardware: None
Software
Operating System: Solaris 10 1/06
Compiler: Sun Studio 11 with patch 120759-06
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1287 42.2 1400 38.8 1401 38.8 4 1346 40.4 1340 40.6 1342 40.5
416.gamess 4 1478 53.0 1479 53.0 1480 52.9 4 1478 53.0 1478 53.0 1479 53.0
433.milc 4 1375 26.7 1374 26.7 1375 26.7 4 1411 26.0 1410 26.0 1411 26.0
434.zeusmp 4 991 36.7 991 36.7 993 36.7 4 978 37.2 975 37.3 976 37.3
435.gromacs 4 903 31.6 903 31.6 903 31.6 4 590 48.4 589 48.5 589 48.5
436.cactusADM 4 1345 35.5 1344 35.6 1344 35.6 4 1344 35.6 1340 35.7 1343 35.6
437.leslie3d 4 1343 28.0 1352 27.8 1342 28.0 4 1333 28.2 1330 28.3 1331 28.3
444.namd 4 699 45.9 699 45.9 699 45.9 4 686 46.7 685 46.8 685 46.8
447.dealII 4 871 52.5 884 51.8 881 51.9 4 806 56.8 804 56.9 797 57.4
450.soplex 4 1238 26.9 1238 27.0 1240 26.9 4 1186 28.1 1177 28.4 1171 28.5
453.povray 4 362 58.7 363 58.7 362 58.7 4 351 60.7 350 60.9 350 60.8
454.calculix 4 840 39.3 840 39.3 840 39.3 4 779 42.4 779 42.4 779 42.4
459.GemsFDTD 4 1726 24.6 1724 24.6 1726 24.6 4 1737 24.4 1741 24.4 1738 24.4
465.tonto 4 1060 37.1 1056 37.3 1057 37.2 4 933 42.2 932 42.2 933 42.2
470.lbm 4 2311 23.8 2311 23.8 2309 23.8 4 2167 25.4 2168 25.4 2170 25.3
481.wrf 4 1321 33.8 1322 33.8 1325 33.7 4 1319 33.9 1319 33.9 1322 33.8
482.sphinx3 4 1894 41.2 1891 41.2 1892 41.2 4 1840 42.4 1836 42.5 1837 42.5

Operating System Notes


 Processes were bound to cores using "submit" and "pbind".


 ulimit -s 131072  (shell): increases stack


 /etc/system parameters
    tune_t_fsflushr=1
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=900
       Causes pages older than the listed number of seconds to
       be written by fsflush.

Platform Notes


 Default BIOS settings were used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xarch=amd64a

C++ benchmarks:

 -fast   -xipo=2   -xarch=amd64a   -library=stlport4

Fortran benchmarks:

 -fast   -xipo=2   -xarch=amd64a

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a

Base Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Fortran benchmarks:

 -V

Benchmarks using both Fortran and C:

 -V

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

436.cactusADM:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xarch=amd64a   -xipo=2   -xprefetch=auto   -xprefetch_level=3   -xpagesize=2m
470.lbm:  -fast   -xarch=amd64a   -xpagesize=2m   -W2,-Ainline:inc=200   -W2,-Ainline:cs=500   -xprefetch_level=3
482.sphinx3:  -fast   -xarch=amd64a   -xrestrict   -xipo=2   -xprefetch=auto   -xpagesize=2m   -Wd,-iropt-prof   -W2,-Ashort_ldst:ldld   -W2,-Ainline:rs=50   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xipo=2   -library=stlport4
447.dealII:  -fast   -xarch=amd64a   -xipo=2   -xvector   -Qoption iropt -Abcopy   -xalias_level   -xrestrict   -xregs=frameptr   -library=stlport4
450.soplex:  -fast   -xipo=2   -xarch=sse2a   -library=stlport4
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  -fast   -xarch=amd64a   -unroll=5   -stackvar   -xO4   -xipo=2   -xprefetch_level=3   -Qoption iropt -Rloop_dist
416.gamess:  -fast   -xarch=amd64a   -xipo=2   -xprefetch_level=3
434.zeusmp:  -fast   -xarch=amd64a   -xipo=2   -xregs=frameptr
437.leslie3d:  -fast   -xipo=2   -xarch=sse2a
459.GemsFDTD:  -fast   -xarch=amd64a   -xipo=2   -xprefetch_level=3   -xpagesize=2m
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xipo=2   -xvector=lib   -xalias   -xdepend   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a   -Wu,-fsimple=3   -Qoption ube -fsimple=3
436.cactusADM:  -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a
454.calculix:  -fast(cc)   -fast(f90)   -xarch=amd64a   -xpagesize=2m   -xprefetch=auto   -xprefetch_level=3   -W2,-Ainline:inc=200   -W2,-Ainline:cs=500   -unroll=5   -stackvar   -xO4   -xipo=2   -Qoption iropt -Rloop_dist
481.wrf:  Same as 436.cactusADM

Peak Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Fortran benchmarks:

 -V

Benchmarks using both Fortran and C:

 -V

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio-Opteron.20090715.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio-Opteron.20090715.02.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v91.
Report generated on Tue Jul 22 09:57:45 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 24 August 2006.
