SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity rx2620 (1.6GHz/18MB Dual-Core
Intel Itanium 2)

SPECfp®2006 = 15.8

CPU2006 license: 03 Test date: Sep-2006
Test sponsor: Hewlett-Packard Company Hardware Availability: Sep-2006
Tested by: Hewlett-Packard Company Software Availability: Sep-2006

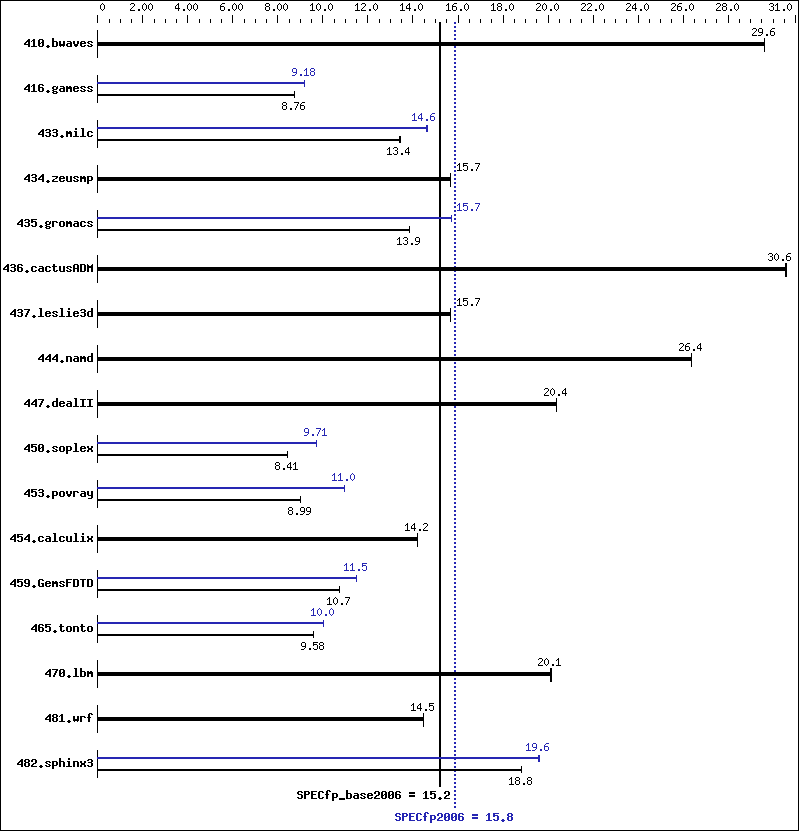

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9040
CPU Characteristics: 1.6GHz/18MB, 400MHz FSB
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 9 MB I+D on chip per core
Other Cache: None
Memory: 24 GB (12x2GB DIMMs)
Disk Subsystem: 36GB 15K RPM SCSI
Other Hardware: None
Software
Operating System: HPUX11i-TCOE B.11.23.0609
Compiler: HP C/aC++ Developer's Bundle C.11.23.12
HP Fortran90 Compiler B.11.23.32
Auto Parallel: No
File System: vxfs
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 459 29.6  459 29.6  459 29.6  459 29.6  459 29.6  459 29.6
416.gamess 2237 8.75 2236 8.76 2236 8.76 2133 9.18 2133 9.18 2135 9.17
433.milc 684 13.4  684 13.4  683 13.4  628 14.6  628 14.6  629 14.6
434.zeusmp 581 15.7  581 15.7  581 15.7  581 15.7  581 15.7  581 15.7
435.gromacs 515 13.9  515 13.9  515 13.9  454 15.7  454 15.7  455 15.7
436.cactusADM 391 30.6  391 30.6  391 30.6  391 30.6  391 30.6  391 30.6
437.leslie3d 600 15.7  601 15.7  600 15.7  600 15.7  601 15.7  600 15.7
444.namd 304 26.4  304 26.4  304 26.4  304 26.4  304 26.4  304 26.4
447.dealII 561 20.4  561 20.4  561 20.4  561 20.4  561 20.4  561 20.4
450.soplex 991 8.42 991 8.41 992 8.41 858 9.72 859 9.71 859 9.71
453.povray 592 8.99 592 8.98 592 8.99 485 11.0  485 11.0  485 11.0
454.calculix 580 14.2  581 14.2  581 14.2  580 14.2  581 14.2  581 14.2
459.GemsFDTD 989 10.7  990 10.7  990 10.7  922 11.5  923 11.5  924 11.5
465.tonto 1027 9.59 1027 9.58 1027 9.58 982 10.0  983 10.0  983 10.0
470.lbm 683 20.1  683 20.1  682 20.1  683 20.1  683 20.1  682 20.1
481.wrf 771 14.5  771 14.5  771 14.5  771 14.5  771 14.5  771 14.5
482.sphinx3 1036 18.8  1036 18.8  1036 18.8  993 19.6  996 19.6  995 19.6

Operating System Notes

   The system had the September 2006 HP-UX 11i v2 Technical Computing
   Operating Environment (TCOE) and compilers installed, along with
   the following patches:

   PHSS_34858  linker + fdp cumulative patch
   PHSS_34853  Math Library Cumulative Patch
   PHSS_34854  Integrity Unwind Library
   PHSS_34855  HP C Compiler (A.06.12)
   PHSS_34856  aC++ Compiler (A.06.12)
   PHSS_34857  u2comp/be/plugin library patch
   PHSS_34395  FORTRAN I/O Library [libIO77]
   PHSS_34397  FORTRAN Intrinsics [libF90 B.11.23.17]
   PHSS_34399  Fortran Product Patch, v3.1 to v3.1.1
   PHKL_34020  Perfmon enhancements and Itanium Dual-Core

   The following kernel tunables were set, in addition to the defaults
   set by the Technical Computing OE:

   dbc_max_pct=20
   dbc_min_pct=20
   maxdsiz=3221225472
   maxssiz=401604608

Platform Notes

 The "cpuconfig" EFI command was used prior to booting
   to deconfigure processors.

 Although two cores were enabled during testing,
   the SPEC CPU2006 benchmarks used only one core.

Base Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Fortran benchmarks:

 /opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

 /opt/ansic/bin/cc -Ae   /opt/fortran90/bin/f90

Base Portability Flags

453.povray:  -DSPEC_CPU_NEED_INVHYP
454.calculix:  -DSPEC_CPU_NOZMODIFIER
481.wrf:  -DNOUNDERSCORE   +noppu

Base Optimization Flags

C benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

C++ benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

Fortran benchmarks:

 +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

Benchmarks using both Fortran and C:

 +Ofaster(-hp_cc)   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Ofaster(-hp_f90)   -Wl,-N

Peak Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Fortran benchmarks:

 /opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

 /opt/ansic/bin/cc -Ae   /opt/fortran90/bin/f90

Peak Portability Flags

453.povray:  -DSPEC_CPU_NEED_INVHYP
454.calculix:  -DSPEC_CPU_NOZMODIFIER
481.wrf:  -DNOUNDERSCORE   +noppu

Peak Optimization Flags

C benchmarks:

433.milc:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   -Wl,-N
470.lbm:  basepeak = yes
482.sphinx3:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  basepeak = yes
450.soplex:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   -Wl,-N
453.povray:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct   -Wl,-N
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct   -Wl,-N
465.tonto:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct

Benchmarks using both Fortran and C:

435.gromacs:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster(-hp_cc)   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   +Ofaster(-hp_f90)
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.06.xml.
