SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity rx2620
(1.4GHz/12MB Dual-Core Intel Itanium 2)

SPECfp®2006 = 14.3

CPU2006 license: 03 Test date: Oct-2006
Test sponsor: Hewlett-Packard Company Hardware Availability: Sep-2006
Tested by: Hewlett-Packard Company Software Availability: Sep-2006

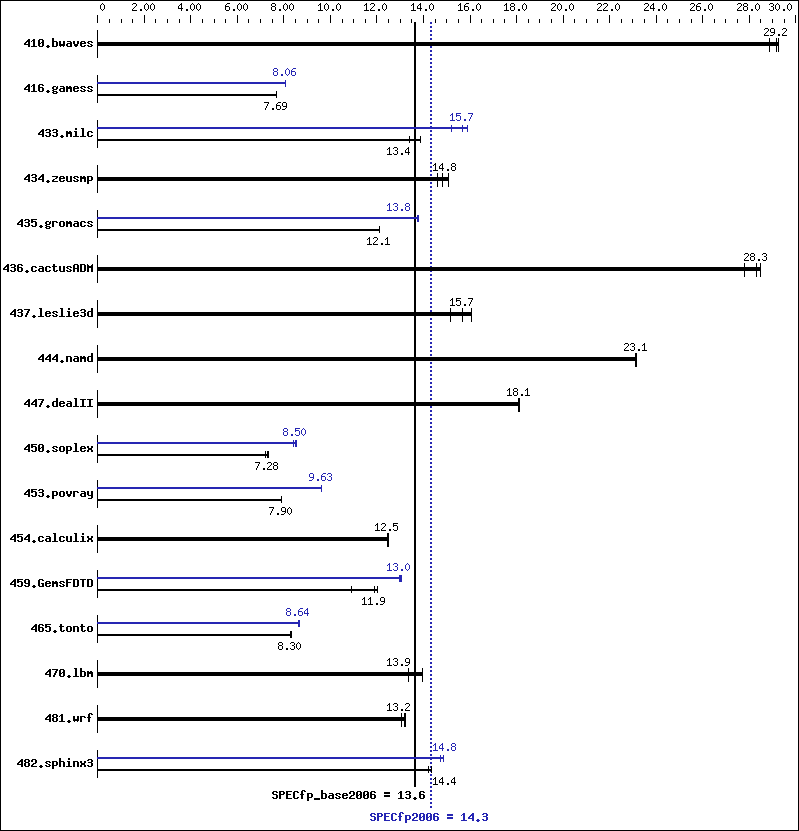

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9015
CPU Characteristics: 1.4GHz/12MB, 400MHz FSB
CPU MHz: 1400
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 6 MB I+D on chip per core
Other Cache: None
Memory: 24 GB (12x2GB DIMMs)
Disk Subsystem: 146GB 10K RPM SCSI
Other Hardware: None
Software
Operating System: HPUX11i-TCOE B.11.23.0609
Compiler: HP C/aC++ Developer's Bundle C.11.23.12
HP Fortran90 Compiler B.11.23.32
Auto Parallel: No
File System: vxfs
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 471 28.9  466 29.2  465 29.3  471 28.9  466 29.2  465 29.3
416.gamess 2549 7.68 2547 7.69 2547 7.69 2430 8.06 2431 8.05 2430 8.06
433.milc 684 13.4  685 13.4  662 13.9  604 15.2  586 15.7  578 15.9
434.zeusmp 604 15.1  623 14.6  615 14.8  604 15.1  623 14.6  615 14.8
435.gromacs 590 12.1  590 12.1  590 12.1  518 13.8  519 13.8  519 13.8
436.cactusADM 430 27.8  420 28.5  422 28.3  430 27.8  420 28.5  422 28.3
437.leslie3d 620 15.2  586 16.0  599 15.7  620 15.2  586 16.0  599 15.7
444.namd 347 23.1  347 23.1  347 23.1  347 23.1  347 23.1  347 23.1
447.dealII 632 18.1  631 18.1  632 18.1  632 18.1  631 18.1  632 18.1
450.soplex 1156 7.22 1134 7.35 1145 7.28 982 8.50 977 8.54 992 8.41
453.povray 674 7.90 674 7.89 674 7.90 552 9.63 552 9.63 553 9.63
454.calculix 663 12.4  661 12.5  661 12.5  663 12.4  661 12.5  661 12.5
459.GemsFDTD 971 10.9  884 12.0  892 11.9  813 13.0  815 13.0  819 13.0
465.tonto 1185 8.31 1185 8.30 1186 8.30 1140 8.63 1136 8.67 1139 8.64
470.lbm 1030 13.3  983 14.0  985 13.9  1030 13.3  983 14.0  985 13.9
481.wrf 857 13.0  845 13.2  848 13.2  857 13.0  845 13.2  848 13.2
482.sphinx3 1358 14.4  1357 14.4  1371 14.2  1325 14.7  1313 14.8  1311 14.9

Operating System Notes

   The system had the September 2006 HP-UX 11i v2 Technical Computing
   Operating Environment (TCOE) and compilers installed, along with
   the following patches:

   PHSS_34858  linker + fdp cumulative patch
   PHSS_34853  Math Library Cumulative Patch
   PHSS_34854  Integrity Unwind Library
   PHSS_34855  HP C Compiler (A.06.12)
   PHSS_34856  aC++ Compiler (A.06.12)
   PHSS_34857  u2comp/be/plugin library patch
   PHSS_34395  FORTRAN I/O Library [libIO77]
   PHSS_34397  FORTRAN Intrinsics [libF90 B.11.23.17]
   PHSS_34399  Fortran Product Patch, v3.1 to v3.1.1
   PHKL_34020  Perfmon enhancements and Itanium Dual-Core

   The following kernel tunables were set, in addition to the defaults
   set by the Technical Computing OE:

   dbc_max_pct=20
   dbc_min_pct=20
   maxdsiz=3221225472
   maxssiz=401604608

Platform Notes

 The "cpuconfig" EFI command was used prior to booting
   to deconfigure processors.

 Although two cores were enabled during testing,
   the SPEC CPU2006 benchmarks used only one core.

Base Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Fortran benchmarks:

 /opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

 /opt/ansic/bin/cc -Ae   /opt/fortran90/bin/f90

Base Portability Flags

453.povray:  -DSPEC_CPU_NEED_INVHYP
454.calculix:  -DSPEC_CPU_NOZMODIFIER
481.wrf:  -DNOUNDERSCORE   +noppu

Base Optimization Flags

C benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

C++ benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

Fortran benchmarks:

 +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

Benchmarks using both Fortran and C:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

Peak Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Fortran benchmarks:

 /opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

 /opt/ansic/bin/cc -Ae   /opt/fortran90/bin/f90

Peak Portability Flags

453.povray:  -DSPEC_CPU_NEED_INVHYP
454.calculix:  -DSPEC_CPU_NOZMODIFIER
481.wrf:  -DNOUNDERSCORE   +noppu

Peak Optimization Flags

C benchmarks:

433.milc:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   -Wl,-N
470.lbm:  basepeak = yes
482.sphinx3:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  basepeak = yes
450.soplex:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   -Wl,-N
453.povray:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct   -Wl,-N
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct   -Wl,-N
465.tonto:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct

Benchmarks using both Fortran and C:

435.gromacs:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.11.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.11.xml.
