SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3800

SPECint®2006 = Not Run

CPU2006 license: 11 Test date: Dec-2006
Test sponsor: IBM Corporation Hardware Availability: Oct-2006
Tested by: IBM Corporation Software Availability: Aug-2006

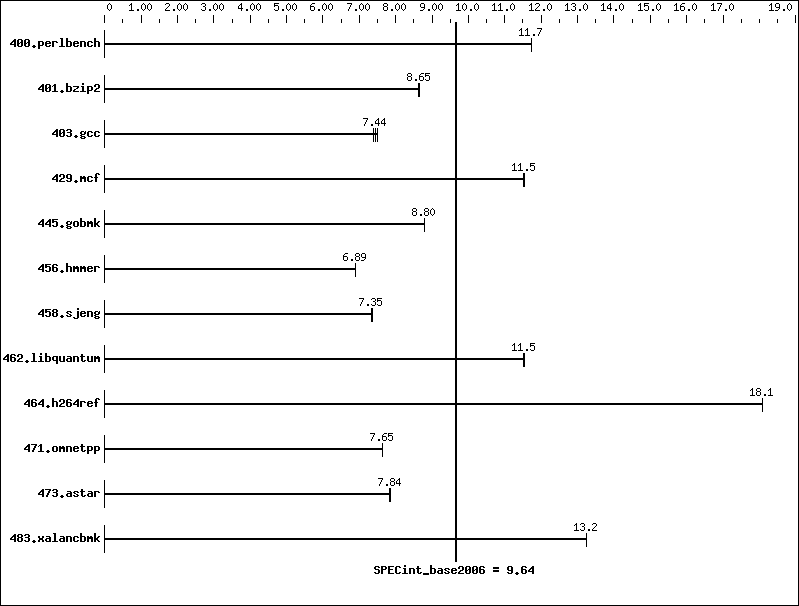

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7130N
CPU Characteristics: 667 MHz bus
CPU MHz: 3133
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16 x 2048 MB ECC PC2-3200)
Disk Subsystem: 73 GB SAS, 10k RPM
Other Hardware: None
Software
Operating System: Microsoft Windows Server 2003 Enterprise x64
Edition + SP1 (64-bit)
Compiler: Intel C++ Compiler for IA32 version 9.1
Build no 20060816
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: Smart Heap Library, Version 8

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 833 11.7  834 11.7  833 11.7
401.bzip2 1117 8.64 1116 8.65 1116 8.65
403.gcc 1082 7.44 1088 7.40 1075 7.49
429.mcf 791 11.5  792 11.5  791 11.5
445.gobmk 1192 8.80 1192 8.80 1192 8.80
456.hmmer 1354 6.89 1355 6.88 1354 6.89
458.sjeng 1647 7.35 1647 7.35 1647 7.35
462.libquantum 1794 11.5  1797 11.5  1798 11.5
464.h264ref 1223 18.1  1223 18.1  1223 18.1
471.omnetpp 817 7.65 818 7.64 817 7.65
473.astar 895 7.84 894 7.85 896 7.83
483.xalancbmk 521 13.2  521 13.2  521 13.2

General Notes

Bios Settings
  Hardware Prefetch enabled
  Memory Array set to High-Performance Memory Array

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.01.xml.
