| CPU2006 license: | 55 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jan-2007 |
| Tested by: | Dell Inc. | Software Availability: | Oct-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3220 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB 533MHz ECC DDR2 SDRAM) |
| Disk Subsystem: | 1 x 73GB SAS 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise x64 Edition |
| Compiler: | Intel C++ Compiler 9.1 for EM64T (20060925Z) Intel FORTRAN Compiler 9.1 for EM64T (20060925Z) Microsoft Visual Studio 2005 (8.0.50727.42) MicroQuill SmartHeap Library 8.0 for x64 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

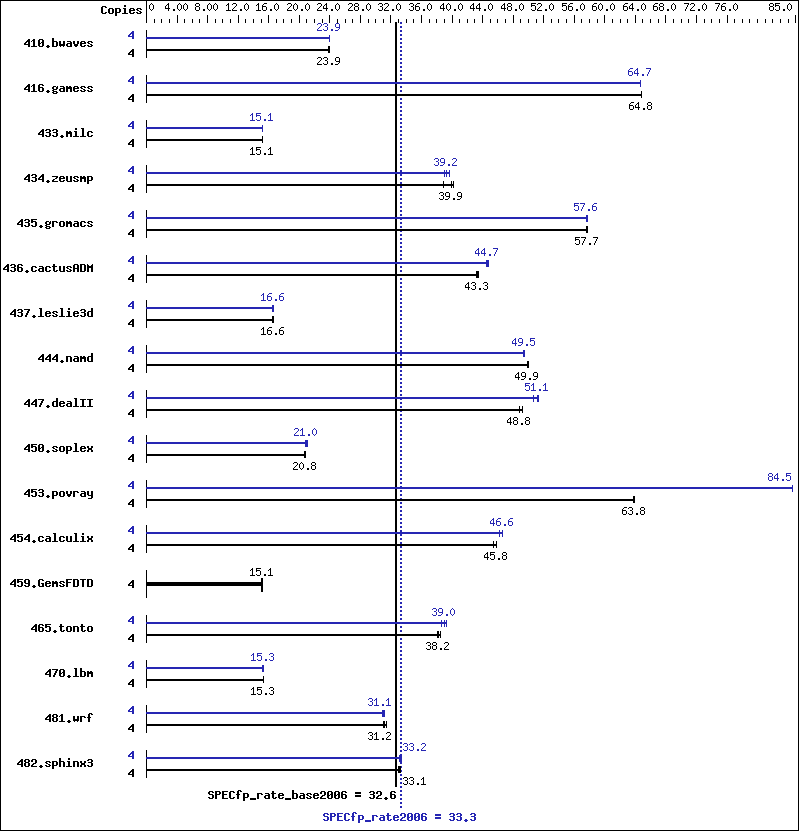

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 2285 | 23.8 | 2269 | 24.0 | 2270 | 23.9 | 4 | 2270 | 23.9 | 2272 | 23.9 | 2270 | 23.9 |
| 416.gamess | 4 | 1209 | 64.8 | 1209 | 64.8 | 1209 | 64.8 | 4 | 1211 | 64.7 | 1211 | 64.7 | 1211 | 64.7 |
| 433.milc | 4 | 2426 | 15.1 | 2426 | 15.1 | 2428 | 15.1 | 4 | 2427 | 15.1 | 2428 | 15.1 | 2416 | 15.2 |
| 434.zeusmp | 4 | 904 | 40.2 | 935 | 38.9 | 912 | 39.9 | 4 | 928 | 39.2 | 932 | 39.1 | 919 | 39.6 |
| 435.gromacs | 4 | 495 | 57.6 | 495 | 57.7 | 495 | 57.7 | 4 | 496 | 57.6 | 496 | 57.6 | 495 | 57.7 |
| 436.cactusADM | 4 | 1106 | 43.2 | 1101 | 43.4 | 1104 | 43.3 | 4 | 1073 | 44.6 | 1067 | 44.8 | 1069 | 44.7 |
| 437.leslie3d | 4 | 2264 | 16.6 | 2267 | 16.6 | 2271 | 16.6 | 4 | 2273 | 16.5 | 2269 | 16.6 | 2265 | 16.6 |
| 444.namd | 4 | 642 | 49.9 | 642 | 50.0 | 642 | 49.9 | 4 | 650 | 49.4 | 648 | 49.5 | 648 | 49.5 |
| 447.dealII | 4 | 938 | 48.8 | 937 | 48.8 | 930 | 49.2 | 4 | 892 | 51.3 | 903 | 50.7 | 895 | 51.1 |
| 450.soplex | 4 | 1607 | 20.8 | 1610 | 20.7 | 1603 | 20.8 | 4 | 1598 | 20.9 | 1584 | 21.1 | 1590 | 21.0 |
| 453.povray | 4 | 333 | 63.8 | 333 | 63.8 | 333 | 63.8 | 4 | 252 | 84.5 | 252 | 84.5 | 252 | 84.5 |
| 454.calculix | 4 | 720 | 45.8 | 719 | 45.9 | 725 | 45.5 | 4 | 707 | 46.7 | 708 | 46.6 | 714 | 46.2 |
| 459.GemsFDTD | 4 | 2806 | 15.1 | 2801 | 15.2 | 2808 | 15.1 | 4 | 2806 | 15.1 | 2801 | 15.2 | 2808 | 15.1 |
| 465.tonto | 4 | 1033 | 38.1 | 1023 | 38.5 | 1030 | 38.2 | 4 | 1019 | 38.6 | 1001 | 39.3 | 1010 | 39.0 |
| 470.lbm | 4 | 3602 | 15.3 | 3602 | 15.3 | 3601 | 15.3 | 4 | 3602 | 15.3 | 3605 | 15.2 | 3600 | 15.3 |
| 481.wrf | 4 | 1440 | 31.0 | 1422 | 31.4 | 1433 | 31.2 | 4 | 1447 | 30.9 | 1436 | 31.1 | 1438 | 31.1 |
| 482.sphinx3 | 4 | 2361 | 33.0 | 2353 | 33.1 | 2347 | 33.2 | 4 | 2353 | 33.1 | 2337 | 33.4 | 2346 | 33.2 |
General Notes
Adjacent Sector Prefetch disabled in BIOS, default enabled Binaries were built on Windows XP Professional x64 Edition
Base Compiler Invocation
C benchmarks:
| icl -Qc99 |
C++ benchmarks:
| icl |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlW64M.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qc99 |
C++ benchmarks:
| icl |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qauto_ilp32 /F950000000 shlW64M.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qauto_ilp32 -Qcxx_features /F950000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qauto_ilp32 /F950000000 -link /FORCE:MULTIPLE |
| 416.gamess: | ONESTEP -fast -Qauto_ilp32 /F950000000 -link /FORCE:MULTIPLE |
| 434.zeusmp: | Same as 410.bwaves |
| 437.leslie3d: | Same as 410.bwaves |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -fast -Qauto_ilp32 /F950000000 -link /FORCE:MULTIPLE |
| 436.cactusADM: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qauto_ilp32 /F950000000 -link /FORCE:MULTIPLE |
| 454.calculix: | Same as 436.cactusADM |
| 481.wrf: | Same as 435.gromacs |
