| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5110 |
| CPU Characteristics: | 1.60 GHz, 4MB L2, 1066MHz bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (1GB DIMMx8, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

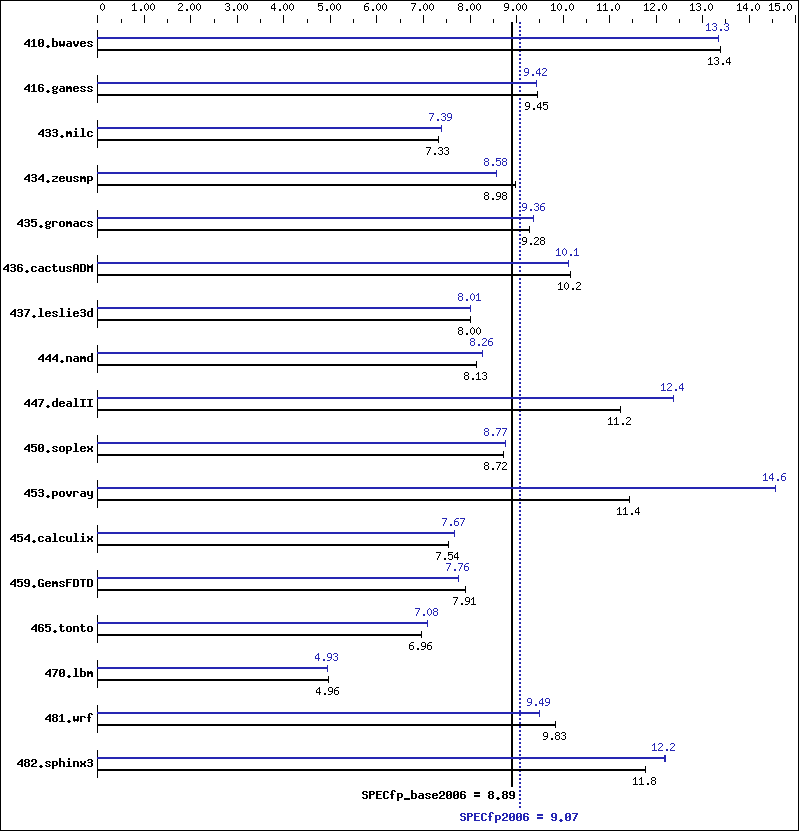

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 1015 | 13.4 | 1015 | 13.4 | 1015 | 13.4 | 1018 | 13.3 | 1018 | 13.3 | 1018 | 13.3 |
| 416.gamess | 2071 | 9.45 | 2071 | 9.45 | 2071 | 9.45 | 2078 | 9.42 | 2078 | 9.42 | 2078 | 9.42 |
| 433.milc | 1252 | 7.33 | 1254 | 7.32 | 1253 | 7.33 | 1243 | 7.39 | 1243 | 7.38 | 1243 | 7.39 |
| 434.zeusmp | 1014 | 8.98 | 1014 | 8.98 | 1014 | 8.98 | 1061 | 8.58 | 1061 | 8.58 | 1061 | 8.58 |
| 435.gromacs | 769 | 9.29 | 769 | 9.28 | 769 | 9.28 | 763 | 9.36 | 763 | 9.36 | 763 | 9.35 |
| 436.cactusADM | 1175 | 10.2 | 1175 | 10.2 | 1175 | 10.2 | 1182 | 10.1 | 1182 | 10.1 | 1182 | 10.1 |
| 437.leslie3d | 1174 | 8.00 | 1174 | 8.01 | 1174 | 8.00 | 1174 | 8.01 | 1174 | 8.01 | 1174 | 8.01 |
| 444.namd | 986 | 8.14 | 986 | 8.13 | 986 | 8.13 | 971 | 8.26 | 971 | 8.26 | 971 | 8.26 |
| 447.dealII | 1018 | 11.2 | 1019 | 11.2 | 1018 | 11.2 | 925 | 12.4 | 925 | 12.4 | 925 | 12.4 |
| 450.soplex | 957 | 8.72 | 957 | 8.72 | 957 | 8.72 | 951 | 8.77 | 951 | 8.77 | 951 | 8.77 |
| 453.povray | 466 | 11.4 | 466 | 11.4 | 466 | 11.4 | 365 | 14.6 | 365 | 14.6 | 365 | 14.6 |
| 454.calculix | 1094 | 7.54 | 1094 | 7.54 | 1094 | 7.54 | 1075 | 7.67 | 1075 | 7.67 | 1075 | 7.67 |
| 459.GemsFDTD | 1344 | 7.89 | 1341 | 7.91 | 1341 | 7.91 | 1369 | 7.75 | 1368 | 7.76 | 1368 | 7.76 |
| 465.tonto | 1413 | 6.96 | 1414 | 6.96 | 1413 | 6.96 | 1389 | 7.08 | 1389 | 7.09 | 1389 | 7.08 |
| 470.lbm | 2773 | 4.96 | 2772 | 4.96 | 2773 | 4.96 | 2787 | 4.93 | 2787 | 4.93 | 2786 | 4.93 |
| 481.wrf | 1136 | 9.83 | 1136 | 9.83 | 1136 | 9.83 | 1177 | 9.49 | 1177 | 9.49 | 1176 | 9.50 |
| 482.sphinx3 | 1656 | 11.8 | 1655 | 11.8 | 1655 | 11.8 | 1599 | 12.2 | 1599 | 12.2 | 1598 | 12.2 |
General Notes
Other Configuration Notes /NUMPROC=1 flag was added to boot.ini to invoke uniprocessor environment
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
