| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Dec-2006 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5130 |
| CPU Characteristics: | 2.0 GHz, 4MB L2, 1333MHz bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

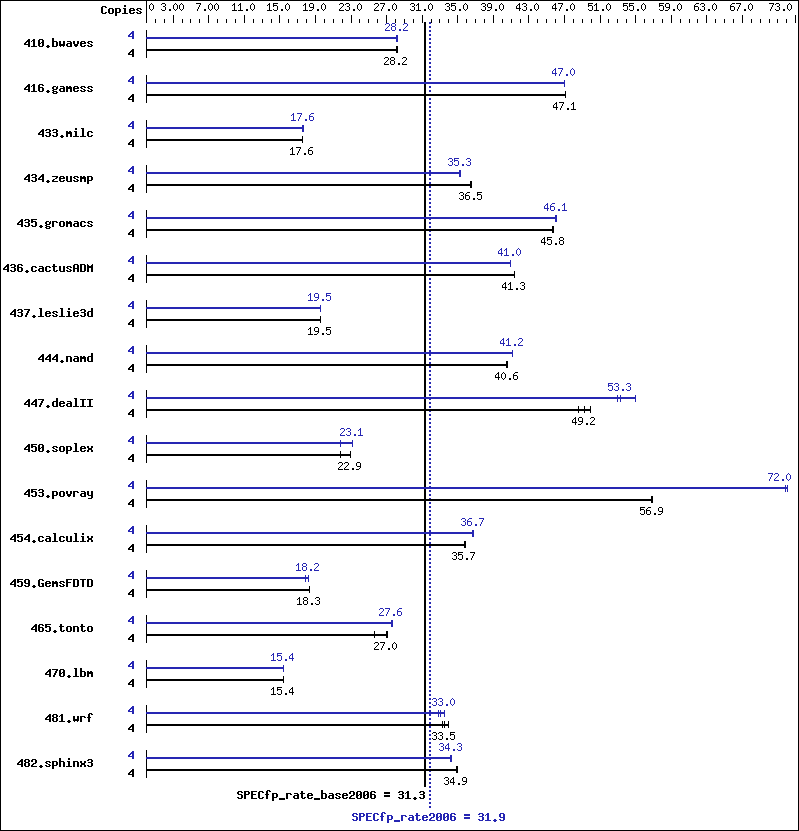

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 1930 | 28.2 | 1930 | 28.2 | 1934 | 28.1 | 4 | 1931 | 28.2 | 1930 | 28.2 | 1929 | 28.2 |
| 416.gamess | 4 | 1662 | 47.1 | 1661 | 47.2 | 1662 | 47.1 | 4 | 1666 | 47.0 | 1666 | 47.0 | 1666 | 47.0 |
| 433.milc | 4 | 2089 | 17.6 | 2088 | 17.6 | 2090 | 17.6 | 4 | 2081 | 17.6 | 2089 | 17.6 | 2080 | 17.7 |
| 434.zeusmp | 4 | 998 | 36.5 | 996 | 36.5 | 995 | 36.6 | 4 | 1032 | 35.3 | 1036 | 35.1 | 1030 | 35.3 |
| 435.gromacs | 4 | 625 | 45.7 | 624 | 45.8 | 624 | 45.8 | 4 | 621 | 46.0 | 620 | 46.1 | 620 | 46.1 |
| 436.cactusADM | 4 | 1157 | 41.3 | 1157 | 41.3 | 1156 | 41.3 | 4 | 1167 | 41.0 | 1167 | 41.0 | 1166 | 41.0 |
| 437.leslie3d | 4 | 1925 | 19.5 | 1927 | 19.5 | 1927 | 19.5 | 4 | 1925 | 19.5 | 1927 | 19.5 | 1925 | 19.5 |
| 444.namd | 4 | 793 | 40.5 | 791 | 40.6 | 791 | 40.6 | 4 | 781 | 41.1 | 779 | 41.2 | 779 | 41.2 |
| 447.dealII | 4 | 917 | 49.9 | 942 | 48.6 | 930 | 49.2 | 4 | 833 | 55.0 | 858 | 53.3 | 864 | 53.0 |
| 450.soplex | 4 | 1533 | 21.8 | 1451 | 23.0 | 1454 | 22.9 | 4 | 1527 | 21.9 | 1444 | 23.1 | 1442 | 23.1 |
| 453.povray | 4 | 375 | 56.8 | 374 | 56.9 | 374 | 56.9 | 4 | 296 | 71.9 | 295 | 72.0 | 295 | 72.1 |
| 454.calculix | 4 | 923 | 35.7 | 919 | 35.9 | 923 | 35.7 | 4 | 899 | 36.7 | 897 | 36.8 | 901 | 36.6 |
| 459.GemsFDTD | 4 | 2317 | 18.3 | 2317 | 18.3 | 2313 | 18.3 | 4 | 2327 | 18.2 | 2372 | 17.9 | 2333 | 18.2 |
| 465.tonto | 4 | 1450 | 27.2 | 1460 | 27.0 | 1535 | 25.6 | 4 | 1425 | 27.6 | 1426 | 27.6 | 1427 | 27.6 |
| 470.lbm | 4 | 3577 | 15.4 | 3577 | 15.4 | 3578 | 15.4 | 4 | 3562 | 15.4 | 3562 | 15.4 | 3562 | 15.4 |
| 481.wrf | 4 | 1341 | 33.3 | 1316 | 34.0 | 1335 | 33.5 | 4 | 1361 | 32.8 | 1332 | 33.5 | 1354 | 33.0 |
| 482.sphinx3 | 4 | 2240 | 34.8 | 2231 | 34.9 | 2234 | 34.9 | 4 | 2281 | 34.2 | 2271 | 34.3 | 2270 | 34.3 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
