SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision 690 (Intel Xeon 5160, 3.00
GHz)

SPECint®2006 = 18.1

CPU2006 license: 55 Test date: Jan-2007
Test sponsor: Dell Inc. Hardware Availability: May-2006
Tested by: Dell Inc. Software Availability: Jan-2007

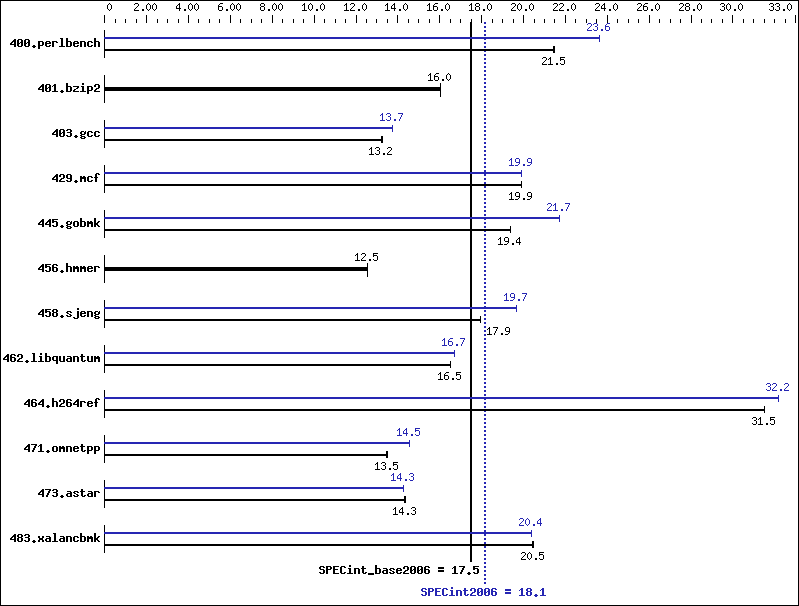

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1 GB 667 MHz ECC CL5 DDR2 FB-DIMM)
Disk Subsystem: 1 x 72 GB SAS 10K RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition
Compiler: Intel C++ Compiler 9.1 for IA32 (20061103Z)
Microsoft Visual Studio 2005
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 456 21.4 455 21.5 455 21.5 413 23.6 413 23.6 413 23.6
401.bzip2 602 16.0 602 16.0 602 16.0 602 16.0 602 16.0 602 16.0
403.gcc 608 13.2 608 13.2 609 13.2 587 13.7 586 13.7 586 13.7
429.mcf 459 19.9 459 19.9 459 19.9 459 19.9 459 19.9 459 19.9
445.gobmk 542 19.4 542 19.4 542 19.4 483 21.7 483 21.7 483 21.7
456.hmmer 744 12.5 744 12.5 744 12.5 744 12.5 744 12.5 744 12.5
458.sjeng 674 17.9 674 17.9 674 17.9 615 19.7 615 19.7 615 19.7
462.libquantum 1256 16.5 1257 16.5 1256 16.5 1242 16.7 1242 16.7 1242 16.7
464.h264ref 703 31.5 703 31.5 703 31.5 687 32.2 687 32.2 687 32.2
471.omnetpp 464 13.5 464 13.5 464 13.5 430 14.5 430 14.5 430 14.5
473.astar 490 14.3 490 14.3 490 14.3 492 14.3 492 14.3 492 14.3
483.xalancbmk 337 20.5 337 20.5 338 20.4 339 20.4 339 20.4 339 20.4

General Notes

 BIOS Settings
   Adjacent Cache Line Prefetch set to ON:
    Prefetch data in order to shorten execution
    cycles and maximize data processing efficiency.

   Snoop Filter set to OFF
    Snoop Filter preserves cache coherency while minimizing
    snoops to remote nodes.

 32-bit binaries were built on Windows XP Professional x64 Edition

Base Compiler Invocation

C benchmarks:

 icl   -Qc99

C++ benchmarks:

 icl

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qc99

C++ benchmarks:

 icl

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
401.bzip2:  basepeak = yes
403.gcc:  Same as 400.perlbench
429.mcf:  ONESTEP   -fast   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
445.gobmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
456.hmmer:  basepeak = yes
458.sjeng:  Same as 400.perlbench
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

471.omnetpp:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
473.astar:  Same as 471.omnetpp
483.xalancbmk:  ONESTEP   -fast   -Qcxx_features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.cpu2006.ic91.flags.20090715.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.cpu2006.ic91.flags.20090715.xml.
