SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale B280 (Intel Xeon processor 5150,2.66GHz)

CPU2006 license: 20 Test date: Dec-2006
Test sponsor: Bull SAS Hardware Availability: Jan-2007
Tested by: Bull SAS Software Availability: Dec-2006

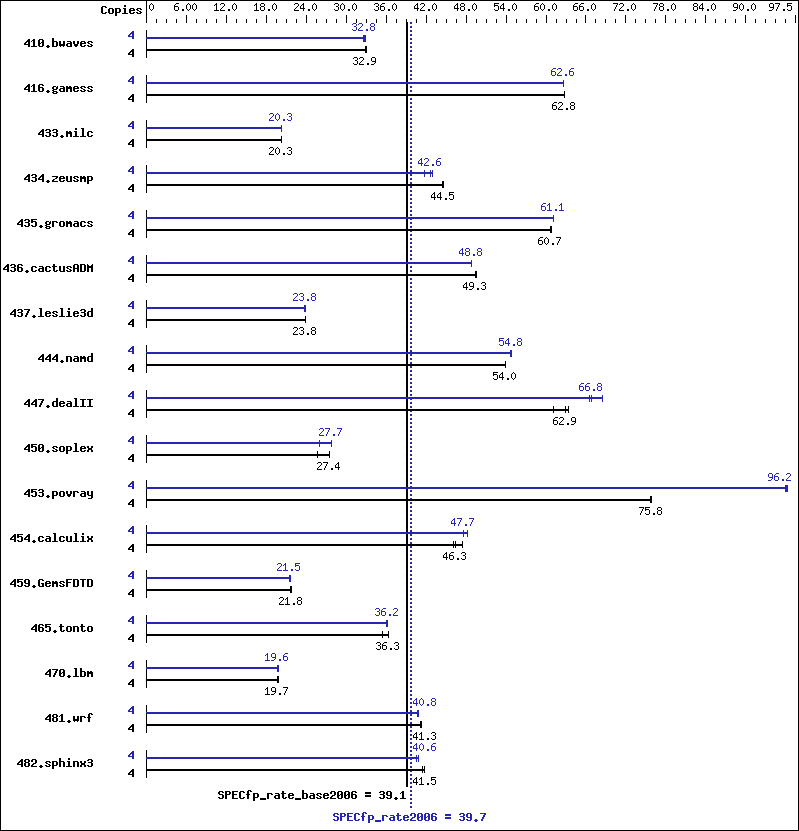

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5150
CPU Characteristics: 2.66 GHz, 4MB L2, 1333MHz bus
CPU MHz: 2660
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1 to 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (1GB DIMMx8, FB-DIMM PC2-5300F ECC CL5)
Disk Subsystem: 73 GB SAS, 10000RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise Edition (32 bits)
Service Pack1
Compiler: Intel C++ Compiler for IA32 version 9.1
Package ID W_CC_C_9.1.033 Build no 20061103Z
Intel Fortran Compiler for IA32 version 9.1
Package ID W_FC_C_9.1.033 Build no 20061103Z
Microsoft Visual Studio .NET 2003 (lib & linker)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1648 33.0 1651 32.9 1656 32.8 4 1665 32.6 1656 32.8 1657 32.8
416.gamess 4 1247 62.8 1246 62.8 1247 62.8 4 1251 62.6 1251 62.6 1251 62.6
433.milc 4 1809 20.3 1813 20.3 1812 20.3 4 1813 20.3 1812 20.3 1813 20.3
434.zeusmp 4 817 44.5 818 44.5 817 44.6 4 854 42.6 873 41.7 849 42.9
435.gromacs 4 471 60.6 470 60.8 470 60.7 4 467 61.1 467 61.1 467 61.2
436.cactusADM 4 965 49.5 969 49.3 969 49.3 4 979 48.8 980 48.8 980 48.8
437.leslie3d 4 1577 23.8 1577 23.8 1577 23.8 4 1576 23.9 1587 23.7 1579 23.8
444.namd 4 595 53.9 594 54.0 594 54.0 4 586 54.7 585 54.8 585 54.8
447.dealII 4 722 63.4 728 62.9 748 61.2 4 688 66.5 685 66.8 668 68.5
450.soplex 4 1303 25.6 1217 27.4 1217 27.4 4 1281 26.0 1202 27.7 1201 27.8
453.povray 4 281 75.7 281 75.8 281 75.8 4 222 96.0 221 96.2 221 96.2
454.calculix 4 712 46.3 696 47.4 715 46.1 4 693 47.6 692 47.7 684 48.2
459.GemsFDTD 4 1948 21.8 1958 21.7 1950 21.8 4 1956 21.7 1973 21.5 1970 21.5
465.tonto 4 1083 36.3 1084 36.3 1109 35.5 4 1088 36.2 1091 36.1 1088 36.2
470.lbm 4 2775 19.8 2797 19.7 2798 19.6 4 2778 19.8 2803 19.6 2802 19.6
481.wrf 4 1086 41.1 1080 41.4 1082 41.3 4 1099 40.6 1096 40.8 1095 40.8
482.sphinx3 4 1881 41.5 1870 41.7 1878 41.5 4 1922 40.6 1911 40.8 1920 40.6

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags.20090715.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090715.xml.
