| CPU2006 license: | 3 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jan-2007 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | 2.66 GHz, 2x4 Mb L2 shared, 1333 MHz system bus |
| CPU MHz: | 2666 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300 CL5) |
| Disk Subsystem: | 2x72 GB 10k SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise X64 Edition |
| Compiler: | Intel C++ Compiler 9.1 for 32-bit apps, Build 20060323Z Package ID: W_CC_P_9.1.020 Microsoft Visual Studio .NET 2003 (v7.1.3088, for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

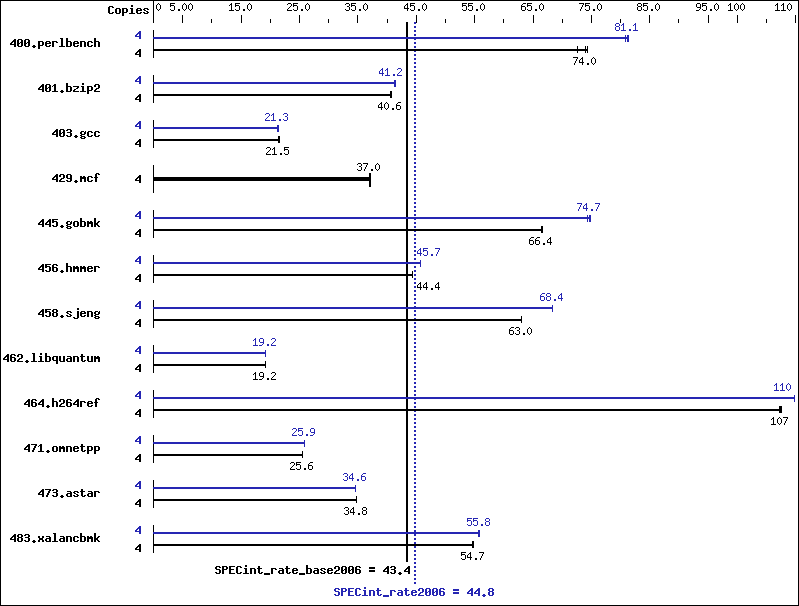

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 538 | 72.6 | 528 | 74.0 | 525 | 74.4 | 4 | 480 | 81.3 | 483 | 80.9 | 482 | 81.1 |
| 401.bzip2 | 4 | 951 | 40.6 | 947 | 40.7 | 950 | 40.6 | 4 | 930 | 41.5 | 937 | 41.2 | 936 | 41.2 |
| 403.gcc | 4 | 1498 | 21.5 | 1500 | 21.5 | 1508 | 21.4 | 4 | 1507 | 21.4 | 1514 | 21.3 | 1513 | 21.3 |
| 429.mcf | 4 | 985 | 37.0 | 983 | 37.1 | 986 | 37.0 | 4 | 985 | 37.0 | 983 | 37.1 | 986 | 37.0 |
| 445.gobmk | 4 | 632 | 66.4 | 630 | 66.6 | 632 | 66.4 | 4 | 562 | 74.7 | 560 | 74.9 | 564 | 74.4 |
| 456.hmmer | 4 | 840 | 44.4 | 840 | 44.4 | 840 | 44.4 | 4 | 818 | 45.6 | 817 | 45.7 | 817 | 45.7 |
| 458.sjeng | 4 | 769 | 63.0 | 768 | 63.0 | 768 | 63.0 | 4 | 708 | 68.3 | 708 | 68.4 | 708 | 68.4 |
| 462.libquantum | 4 | 4325 | 19.2 | 4326 | 19.2 | 4326 | 19.2 | 4 | 4322 | 19.2 | 4318 | 19.2 | 4318 | 19.2 |
| 464.h264ref | 4 | 825 | 107 | 823 | 108 | 824 | 107 | 4 | 806 | 110 | 806 | 110 | 806 | 110 |
| 471.omnetpp | 4 | 978 | 25.6 | 978 | 25.6 | 979 | 25.5 | 4 | 966 | 25.9 | 966 | 25.9 | 966 | 25.9 |
| 473.astar | 4 | 808 | 34.7 | 807 | 34.8 | 807 | 34.8 | 4 | 811 | 34.6 | 811 | 34.6 | 811 | 34.6 |
| 483.xalancbmk | 4 | 504 | 54.7 | 504 | 54.7 | 504 | 54.8 | 4 | 495 | 55.7 | 495 | 55.8 | 495 | 55.8 |
Platform Notes
Power Regulator set to Static High Performance Mode in BIOS. Adjacent Sector Prefetch disabled in BIOS.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
