| CPU2006 license: | 20 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5320 |
| CPU Characteristics: | 1.86 GHz, 8MB L2, 1066MHz bus |
| CPU MHz: | 1860 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (1GB DIMMx8, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

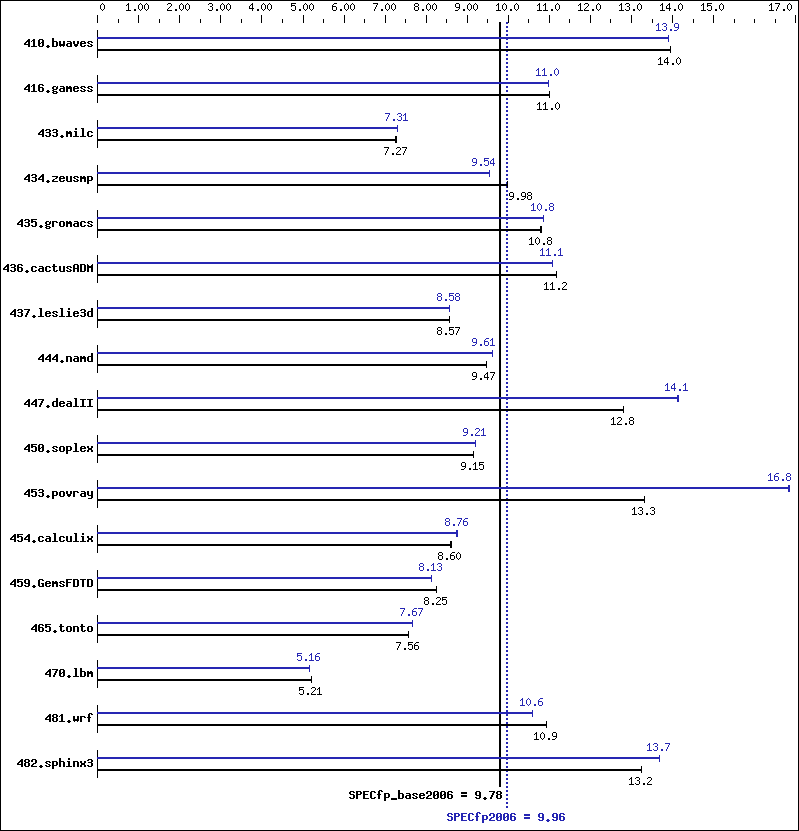

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 974 | 14.0 | 974 | 14.0 | 974 | 13.9 | 978 | 13.9 | 978 | 13.9 | 978 | 13.9 |
| 416.gamess | 1780 | 11.0 | 1780 | 11.0 | 1780 | 11.0 | 1784 | 11.0 | 1783 | 11.0 | 1784 | 11.0 |
| 433.milc | 1263 | 7.27 | 1263 | 7.27 | 1264 | 7.26 | 1257 | 7.30 | 1256 | 7.31 | 1256 | 7.31 |
| 434.zeusmp | 911 | 9.98 | 911 | 9.98 | 912 | 9.97 | 954 | 9.54 | 953 | 9.54 | 953 | 9.54 |
| 435.gromacs | 661 | 10.8 | 661 | 10.8 | 661 | 10.8 | 658 | 10.8 | 658 | 10.8 | 658 | 10.8 |
| 436.cactusADM | 1069 | 11.2 | 1069 | 11.2 | 1070 | 11.2 | 1078 | 11.1 | 1078 | 11.1 | 1078 | 11.1 |
| 437.leslie3d | 1097 | 8.57 | 1097 | 8.57 | 1098 | 8.56 | 1096 | 8.58 | 1096 | 8.58 | 1096 | 8.57 |
| 444.namd | 847 | 9.47 | 847 | 9.47 | 847 | 9.47 | 834 | 9.61 | 834 | 9.61 | 834 | 9.61 |
| 447.dealII | 893 | 12.8 | 893 | 12.8 | 893 | 12.8 | 810 | 14.1 | 809 | 14.1 | 810 | 14.1 |
| 450.soplex | 911 | 9.16 | 911 | 9.15 | 911 | 9.15 | 905 | 9.21 | 905 | 9.21 | 905 | 9.21 |
| 453.povray | 400 | 13.3 | 399 | 13.3 | 400 | 13.3 | 316 | 16.8 | 316 | 16.8 | 316 | 16.8 |
| 454.calculix | 959 | 8.61 | 959 | 8.60 | 959 | 8.60 | 943 | 8.75 | 942 | 8.76 | 942 | 8.76 |
| 459.GemsFDTD | 1288 | 8.24 | 1286 | 8.25 | 1286 | 8.25 | 1305 | 8.13 | 1305 | 8.13 | 1305 | 8.13 |
| 465.tonto | 1301 | 7.56 | 1301 | 7.56 | 1302 | 7.56 | 1284 | 7.66 | 1283 | 7.67 | 1284 | 7.67 |
| 470.lbm | 2638 | 5.21 | 2639 | 5.21 | 2639 | 5.21 | 2664 | 5.16 | 2664 | 5.16 | 2664 | 5.16 |
| 481.wrf | 1021 | 10.9 | 1022 | 10.9 | 1022 | 10.9 | 1056 | 10.6 | 1056 | 10.6 | 1056 | 10.6 |
| 482.sphinx3 | 1472 | 13.2 | 1473 | 13.2 | 1473 | 13.2 | 1424 | 13.7 | 1425 | 13.7 | 1425 | 13.7 |
General Notes
Other Configuration Notes /NUMPROC=1 flag was added to boot.ini to invoke uniprocessor environment
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
