SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale B280 (Intel Xeon processor
E5320,1.86GHz)

CPU2006 license: 20 Test date: Feb-2007
Test sponsor: Bull SAS Hardware Availability: Jan-2007
Tested by: Bull SAS Software Availability: Dec-2006

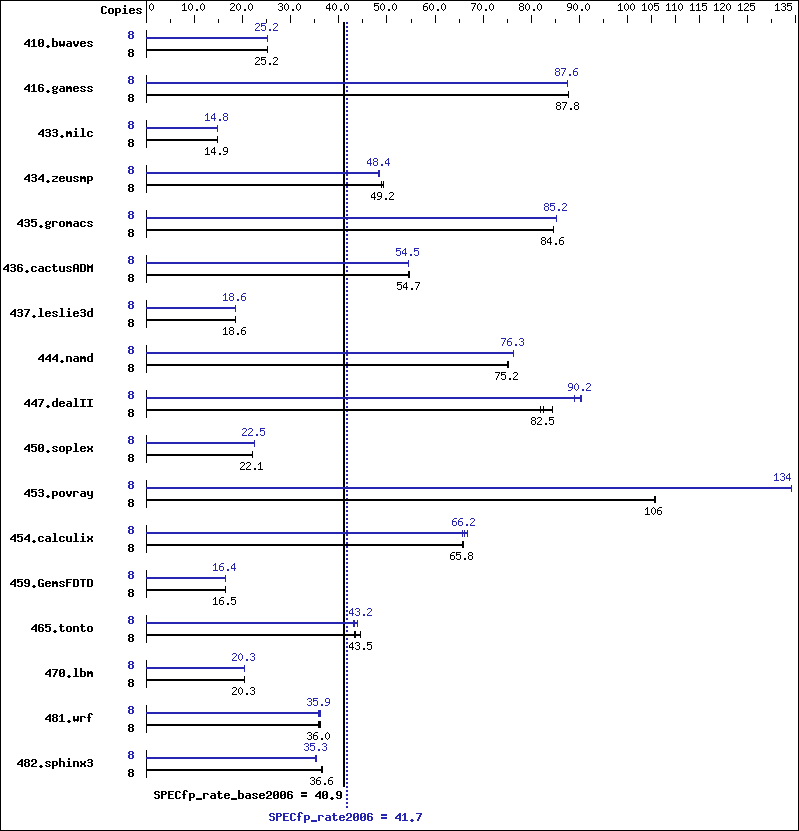

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1.86 GHz, 8MB L2, 1066MHz bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1 to 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (1GB DIMMx8, FB-DIMM PC2-5300F ECC CL5)
Disk Subsystem: 73 GB SAS, 10000RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise Edition (32 bits)
Service Pack1
Compiler: Intel C++ Compiler for IA32 version 9.1
Package ID W_CC_C_9.1.033 Build no 20061103Z
Intel Fortran Compiler for IA32 version 9.1
Package ID W_FC_C_9.1.033 Build no 20061103Z
Microsoft Visual Studio .NET 2003 (lib & linker)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 4319 25.2 4312 25.2 4317 25.2 8 4329 25.1 4319 25.2 4319 25.2
416.gamess 8 1784 87.8 1785 87.8 1785 87.7 8 1789 87.6 1789 87.5 1788 87.6
433.milc 8 4945 14.9 4943 14.9 4953 14.8 8 4956 14.8 4941 14.9 4950 14.8
434.zeusmp 8 1475 49.4 1488 48.9 1479 49.2 8 1504 48.4 1500 48.5 1509 48.3
435.gromacs 8 675 84.6 675 84.6 675 84.7 8 670 85.2 670 85.3 670 85.2
436.cactusADM 8 1748 54.7 1748 54.7 1752 54.6 8 1758 54.4 1753 54.5 1755 54.5
437.leslie3d 8 4050 18.6 4048 18.6 4052 18.6 8 4048 18.6 4052 18.6 4051 18.6
444.namd 8 854 75.2 853 75.2 854 75.2 8 841 76.3 840 76.4 841 76.3
447.dealII 8 1118 81.9 1110 82.5 1083 84.5 8 1012 90.4 1015 90.2 1028 89.0
450.soplex 8 3023 22.1 3025 22.1 3031 22.0 8 2978 22.4 2965 22.5 2969 22.5
453.povray 8 403 106   402 106   403 106   8 317 134   317 134   317 134
454.calculix 8 1004 65.8 1003 65.8 1003 65.8 8 989 66.8 1005 65.7 997 66.2
459.GemsFDTD 8 5146 16.5 5143 16.5 5150 16.5 8 5153 16.5 5164 16.4 5162 16.4
465.tonto 8 1819 43.3 1771 44.5 1809 43.5 8 1827 43.1 1821 43.2 1791 44.0
470.lbm 8 5414 20.3 5411 20.3 5405 20.3 8 5409 20.3 5403 20.3 5410 20.3
481.wrf 8 2482 36.0 2471 36.2 2495 35.8 8 2490 35.9 2492 35.9 2474 36.1
482.sphinx3 8 4264 36.6 4253 36.7 4275 36.5 8 4429 35.2 4414 35.3 4423 35.3

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090714.00.xml.
