| CPU2006 license: | 22 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Nov-2006 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Jan-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | X5355 |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5,with ECC) |
| Disk Subsystem: | SATA II 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP, 64 bit Edition |
| Compiler: | Intel C++ Compiler for 32-bit applications, - version 9.1, Build 20070109Z Microsoft Visual Studio .NET 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

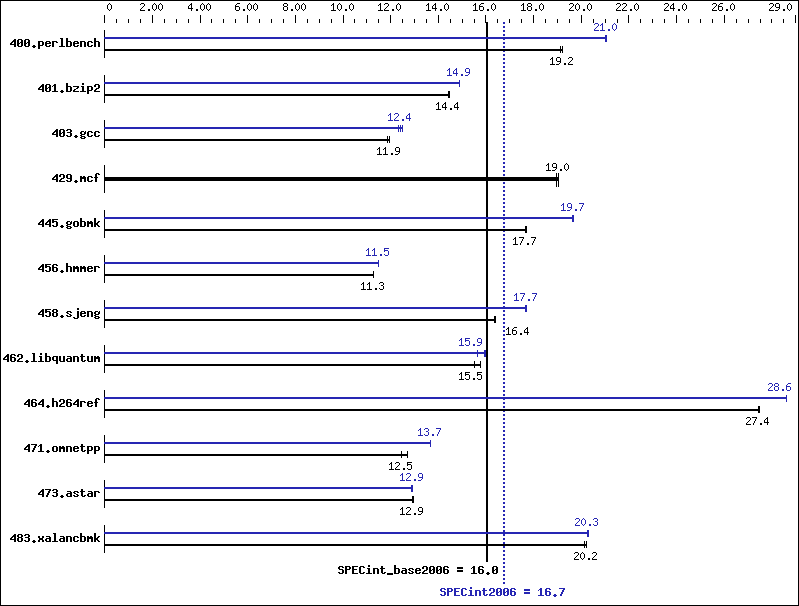

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 511 | 19.1 | 509 | 19.2 | 508 | 19.2 | 464 | 21.1 | 465 | 21.0 | 464 | 21.0 |
| 401.bzip2 | 668 | 14.4 | 668 | 14.5 | 669 | 14.4 | 649 | 14.9 | 649 | 14.9 | 648 | 14.9 |
| 403.gcc | 675 | 11.9 | 678 | 11.9 | 673 | 12.0 | 644 | 12.5 | 649 | 12.4 | 654 | 12.3 |
| 429.mcf | 481 | 19.0 | 479 | 19.0 | 479 | 19.0 | 481 | 19.0 | 479 | 19.0 | 479 | 19.0 |
| 445.gobmk | 594 | 17.7 | 593 | 17.7 | 594 | 17.7 | 533 | 19.7 | 533 | 19.7 | 534 | 19.6 |
| 456.hmmer | 826 | 11.3 | 826 | 11.3 | 826 | 11.3 | 813 | 11.5 | 813 | 11.5 | 813 | 11.5 |
| 458.sjeng | 740 | 16.4 | 739 | 16.4 | 738 | 16.4 | 684 | 17.7 | 683 | 17.7 | 685 | 17.7 |
| 462.libquantum | 1336 | 15.5 | 1336 | 15.5 | 1313 | 15.8 | 1302 | 15.9 | 1323 | 15.7 | 1298 | 16.0 |
| 464.h264ref | 806 | 27.4 | 806 | 27.4 | 806 | 27.5 | 773 | 28.6 | 774 | 28.6 | 773 | 28.6 |
| 471.omnetpp | 502 | 12.5 | 492 | 12.7 | 502 | 12.5 | 458 | 13.7 | 457 | 13.7 | 457 | 13.7 |
| 473.astar | 543 | 12.9 | 543 | 12.9 | 543 | 12.9 | 543 | 12.9 | 545 | 12.9 | 543 | 12.9 |
| 483.xalancbmk | 343 | 20.1 | 341 | 20.2 | 341 | 20.2 | 340 | 20.3 | 341 | 20.3 | 340 | 20.3 |
Platform Notes
BIOS default settings have been used, except: Snoop Filter Enabled Adjacent Cache Line Prefetch Enabled
General Notes
For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx-features -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
