| CPU2006 license: | 20 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5335 |
| CPU Characteristics: | 2.00 GHz, 8MB L2, 1333MHz bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (1GB DIMMx8, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

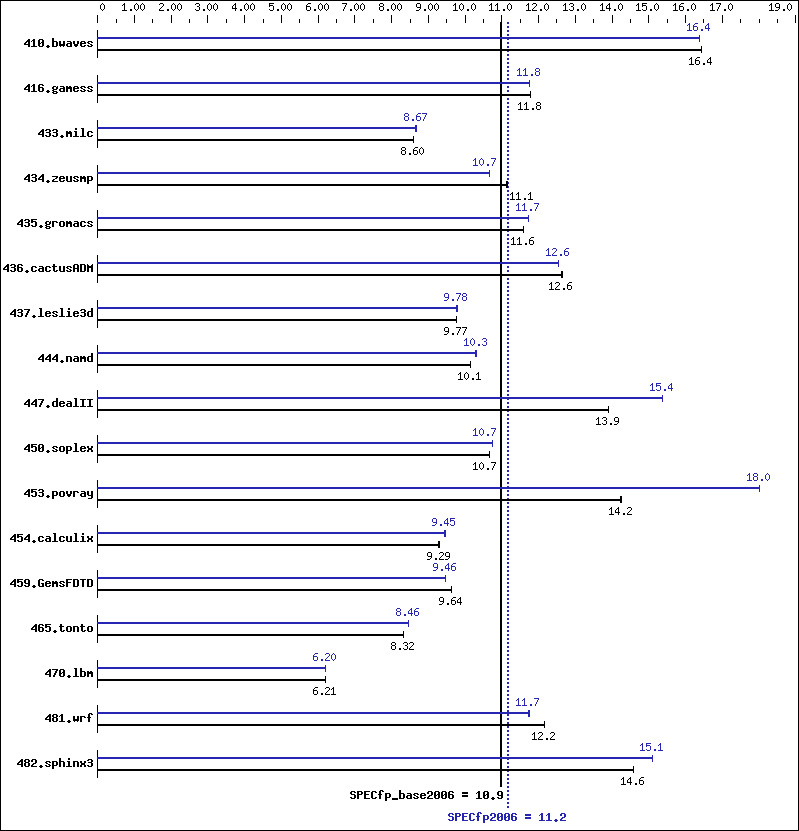

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 827 | 16.4 | 827 | 16.4 | 827 | 16.4 | 830 | 16.4 | 830 | 16.4 | 830 | 16.4 |
| 416.gamess | 1663 | 11.8 | 1663 | 11.8 | 1663 | 11.8 | 1666 | 11.8 | 1666 | 11.7 | 1666 | 11.8 |
| 433.milc | 1067 | 8.60 | 1067 | 8.60 | 1067 | 8.60 | 1059 | 8.67 | 1059 | 8.67 | 1060 | 8.66 |
| 434.zeusmp | 816 | 11.1 | 816 | 11.1 | 817 | 11.1 | 853 | 10.7 | 854 | 10.7 | 854 | 10.7 |
| 435.gromacs | 616 | 11.6 | 616 | 11.6 | 616 | 11.6 | 608 | 11.7 | 608 | 11.7 | 609 | 11.7 |
| 436.cactusADM | 946 | 12.6 | 946 | 12.6 | 946 | 12.6 | 952 | 12.6 | 952 | 12.6 | 952 | 12.5 |
| 437.leslie3d | 962 | 9.78 | 962 | 9.77 | 962 | 9.77 | 961 | 9.78 | 961 | 9.78 | 962 | 9.77 |
| 444.namd | 791 | 10.1 | 791 | 10.1 | 791 | 10.1 | 779 | 10.3 | 779 | 10.3 | 779 | 10.3 |
| 447.dealII | 822 | 13.9 | 822 | 13.9 | 822 | 13.9 | 744 | 15.4 | 744 | 15.4 | 744 | 15.4 |
| 450.soplex | 782 | 10.7 | 782 | 10.7 | 782 | 10.7 | 776 | 10.7 | 776 | 10.7 | 777 | 10.7 |
| 453.povray | 373 | 14.2 | 374 | 14.2 | 373 | 14.2 | 295 | 18.0 | 295 | 18.0 | 295 | 18.0 |
| 454.calculix | 888 | 9.29 | 887 | 9.30 | 888 | 9.29 | 873 | 9.45 | 873 | 9.45 | 873 | 9.45 |
| 459.GemsFDTD | 1101 | 9.64 | 1101 | 9.64 | 1101 | 9.64 | 1121 | 9.46 | 1121 | 9.46 | 1122 | 9.46 |
| 465.tonto | 1182 | 8.33 | 1183 | 8.32 | 1183 | 8.32 | 1163 | 8.46 | 1164 | 8.46 | 1162 | 8.46 |
| 470.lbm | 2214 | 6.21 | 2214 | 6.21 | 2214 | 6.21 | 2217 | 6.20 | 2217 | 6.20 | 2217 | 6.20 |
| 481.wrf | 919 | 12.2 | 919 | 12.2 | 919 | 12.2 | 952 | 11.7 | 952 | 11.7 | 952 | 11.7 |
| 482.sphinx3 | 1336 | 14.6 | 1336 | 14.6 | 1336 | 14.6 | 1291 | 15.1 | 1291 | 15.1 | 1291 | 15.1 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
