SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

Bull Escala PL250R+ (2100 MHz, 2 CPU)

CPU2006 license: 20 Test date: Feb-2007
Test sponsor: Bull SAS Hardware Availability: Feb-2006
Tested by: Bull SAS Software Availability: Dec-2006

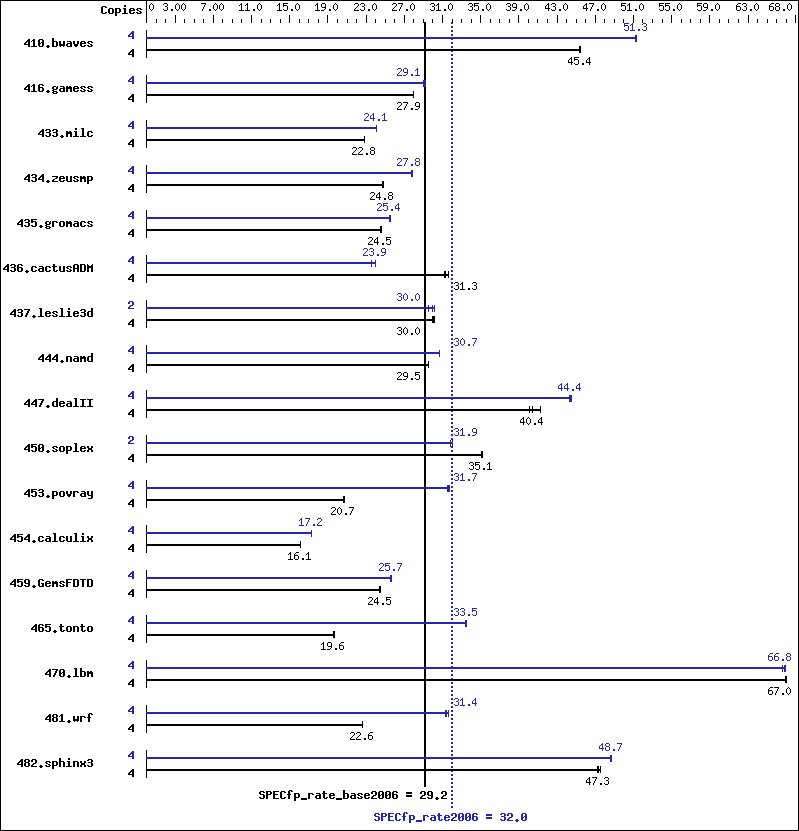

Benchmark results graph
Hardware
CPU Name: POWER5+
CPU Characteristics:
CPU MHz: 2100
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 1920 KB I+D on chip per chip
L3 Cache: 36 MB I+D off chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB)
Disk Subsystem: 1x73 GB SCSI, 15K RPM
Other Hardware: None
Software
Operating System: AIX 5L V5.3
Compiler: XL C/C++ Enterprise Edition Version 8.0 for AIX
with the December 2006 PTF
XL Fortran Enterprise Edition Version 10.1 for AIX
with the November 2006 PTF
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: ESSL 4.2.0.4

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1197 45.4 1199 45.4 1196 45.4 4 1059 51.3 1058 51.4 1062 51.2
416.gamess 4 2803 27.9 2804 27.9 2800 28.0 4 2695 29.1 2677 29.3 2687 29.1
433.milc 4 1610 22.8 1610 22.8 1610 22.8 4 1523 24.1 1524 24.1 1524 24.1
434.zeusmp 4 1470 24.8 1469 24.8 1473 24.7 4 1309 27.8 1314 27.7 1305 27.9
435.gromacs 4 1164 24.5 1160 24.6 1167 24.5 4 1119 25.5 1124 25.4 1124 25.4
436.cactusADM 4 1530 31.2 1510 31.7 1526 31.3 4 1997 23.9 2033 23.5 1997 23.9
437.leslie3d 4 1257 29.9 1252 30.0 1248 30.1 2 627 30.0 636 29.6 624 30.1
444.namd 4 1088 29.5 1088 29.5 1088 29.5 4 1046 30.7 1045 30.7 1045 30.7
447.dealII 4 1110 41.2 1132 40.4 1140 40.1 4 1028 44.5 1033 44.3 1031 44.4
450.soplex 4 950 35.1 950 35.1 949 35.1 2 521 32.0 523 31.9 523 31.9
453.povray 4 1029 20.7 1030 20.7 1032 20.6 4 675 31.5 672 31.7 670 31.8
454.calculix 4 2050 16.1 2052 16.1 2050 16.1 4 1915 17.2 1910 17.3 1914 17.2
459.GemsFDTD 4 1734 24.5 1734 24.5 1740 24.4 4 1652 25.7 1659 25.6 1653 25.7
465.tonto 4 2009 19.6 2006 19.6 2003 19.6 4 1174 33.5 1174 33.5 1179 33.4
470.lbm 4 819 67.1 820 67.0 821 67.0 4 821 66.9 825 66.6 822 66.8
481.wrf 4 1979 22.6 1977 22.6 1975 22.6 4 1424 31.4 1415 31.6 1428 31.3
482.sphinx3 4 1649 47.3 1650 47.3 1639 47.6 4 1600 48.7 1599 48.7 1606 48.5

Operating System Notes


 ulimits set to unlimited

 bindprocessor command used on submit to bind each copy to a
 unique processor.

 Large page mode was set as follows:
 vmo -r -o lgpg_regions=900 -o lgpg_size=16777216
 SMT was ebabled using the AIX commands
 smtctl -m on -w boot
 bosboot -aD
 shutdown -rF

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -qlanglvl=extc99   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads

C++ benchmarks:

 -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -qipa=noobject   -blpdata   -qipa=threads

Fortran benchmarks:

 -O5   -qlargepage   -qsmallstack=dynlenonheap   -qipa=noobject   -blpdata   -qipa=threads

Benchmarks using both Fortran and C:

 -qlanglvl=extc99   -O5   -qlargepage   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -qipa=noobject   -blpdata   -qipa=threads

Base Other Flags

C benchmarks:

 -bmaxdata:0x40000000   -qsuppress=1500-036

C++ benchmarks:

 -bmaxdata:0x50000000   -qsuppress=1500-036

Fortran benchmarks:

 -bmaxdata:0x50000000   -qalias=nostd   -qalias_size=200000000   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -bmaxdata:0x50000000   -qalias=nostd   -qalias_size=200000000   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -qipa=noobject   -blpdata   -qipa=threads
470.lbm:  -qlanglvl=extc99   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
482.sphinx3:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
447.dealII:  -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -qipa=noobject   -blpdata   -qipa=threads
450.soplex:  -O4   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
453.povray:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -q64   -qalign=natural   -lmass   -qipa=noobject   -blpdata   -qipa=threads

Fortran benchmarks:

410.bwaves:  -O5   -qlargepage   -qsmallstack=dynlenonheap   -qipa=noobject   -blpdata   -qipa=threads
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qessl   -lessl   -qipa=noobject   -blpdata   -qipa=threads
434.zeusmp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qipa=noobject   -blpdata   -qipa=threads
437.leslie3d:  -O5   -qlargepage   -qipa=noobject   -blpdata   -qipa=threads
459.GemsFDTD:  Same as 437.leslie3d
465.tonto:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -lmass   -qipa=noobject   -blpdata   -qipa=threads

Benchmarks using both Fortran and C:

435.gromacs:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
436.cactusADM:  -qlanglvl=extc99   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
454.calculix:  Same as 435.gromacs
481.wrf:  -qlanglvl=extc99   -O5   -qlargepage   -lmass   -qsmallstack=dynlenonheap   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads

Peak Other Flags

C benchmarks:

433.milc:  -bmaxdata:0x40000000   -qsuppress=1500-036
470.lbm:  -bmaxdata:0x30000000   -qsuppress=1500-036
482.sphinx3:  -qfdpr   -qsuppress=1500-036

C++ benchmarks:

444.namd:  -qfdpr   -qsuppress=1500-036
447.dealII:  -bmaxdata:0x50000000   -qsuppress=1500-036
450.soplex:  -bmaxdata:0x40000000   -qfdpr   -qsuppress=1500-036
453.povray:  -qsuppress=1500-036

Fortran benchmarks (except as noted below):

 -bmaxdata:0x50000000   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
416.gamess:  -bmaxdata:0x40000000   -qalias=nostd   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
434.zeusmp:  -bmaxdata:0x40000000   -qfdpr   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
437.leslie3d:  -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
465.tonto:  -bmaxdata:0x20000000   -qalias=nostd   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036

Benchmarks using both Fortran and C (except as noted below):

 -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
436.cactusADM:  -bmaxdata:0x50000000   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
481.wrf:  -bmaxdata:0x30000000   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.19.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.19.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 10:49:07 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 20 March 2007.
