| CPU2006 license: | 20 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5335 |
| CPU Characteristics: | 2.00 GHz, 8MB L2, 1333MHz bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

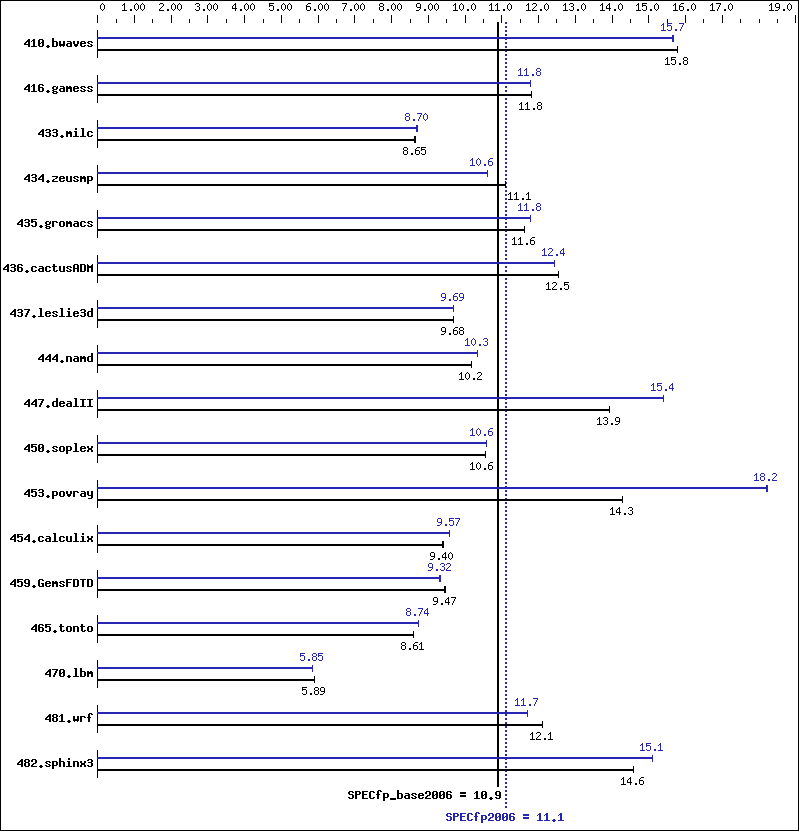

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 862 | 15.8 | 862 | 15.8 | 862 | 15.8 | 868 | 15.7 | 868 | 15.7 | 869 | 15.6 |
| 416.gamess | 1659 | 11.8 | 1659 | 11.8 | 1659 | 11.8 | 1663 | 11.8 | 1663 | 11.8 | 1663 | 11.8 |
| 433.milc | 1061 | 8.65 | 1065 | 8.62 | 1061 | 8.65 | 1059 | 8.67 | 1055 | 8.70 | 1055 | 8.70 |
| 434.zeusmp | 820 | 11.1 | 820 | 11.1 | 820 | 11.1 | 858 | 10.6 | 858 | 10.6 | 858 | 10.6 |
| 435.gromacs | 615 | 11.6 | 614 | 11.6 | 615 | 11.6 | 607 | 11.8 | 607 | 11.8 | 607 | 11.8 |
| 436.cactusADM | 952 | 12.5 | 952 | 12.5 | 952 | 12.5 | 962 | 12.4 | 961 | 12.4 | 961 | 12.4 |
| 437.leslie3d | 971 | 9.68 | 971 | 9.68 | 971 | 9.68 | 970 | 9.69 | 970 | 9.69 | 970 | 9.69 |
| 444.namd | 789 | 10.2 | 789 | 10.2 | 789 | 10.2 | 777 | 10.3 | 777 | 10.3 | 777 | 10.3 |
| 447.dealII | 821 | 13.9 | 822 | 13.9 | 822 | 13.9 | 743 | 15.4 | 743 | 15.4 | 743 | 15.4 |
| 450.soplex | 790 | 10.6 | 790 | 10.6 | 790 | 10.6 | 787 | 10.6 | 788 | 10.6 | 787 | 10.6 |
| 453.povray | 373 | 14.3 | 372 | 14.3 | 372 | 14.3 | 292 | 18.2 | 292 | 18.2 | 292 | 18.2 |
| 454.calculix | 878 | 9.40 | 878 | 9.40 | 878 | 9.40 | 863 | 9.57 | 862 | 9.57 | 862 | 9.57 |
| 459.GemsFDTD | 1123 | 9.45 | 1120 | 9.47 | 1120 | 9.47 | 1139 | 9.31 | 1139 | 9.32 | 1139 | 9.32 |
| 465.tonto | 1143 | 8.61 | 1144 | 8.61 | 1143 | 8.61 | 1126 | 8.74 | 1126 | 8.74 | 1126 | 8.74 |
| 470.lbm | 2334 | 5.89 | 2331 | 5.89 | 2334 | 5.89 | 2349 | 5.85 | 2349 | 5.85 | 2349 | 5.85 |
| 481.wrf | 922 | 12.1 | 922 | 12.1 | 922 | 12.1 | 955 | 11.7 | 955 | 11.7 | 956 | 11.7 |
| 482.sphinx3 | 1335 | 14.6 | 1335 | 14.6 | 1336 | 14.6 | 1291 | 15.1 | 1291 | 15.1 | 1291 | 15.1 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
