SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant ML370 G5
(1.86 GHz, Intel Xeon processor E5320)

CPU2006 license: 3 Test date: Feb-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Nov-2006
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

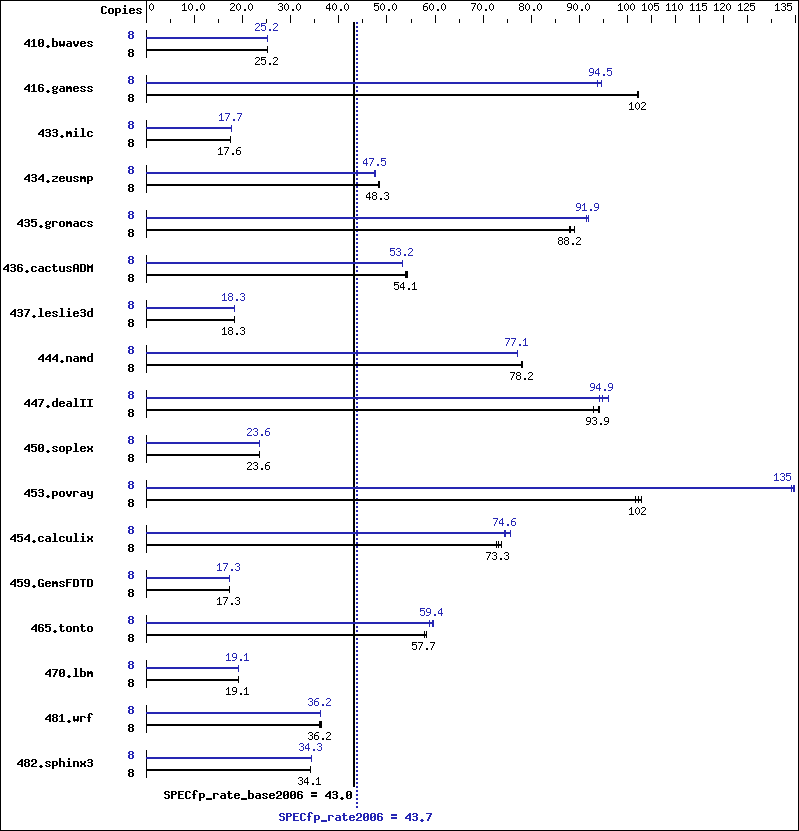

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1.86 GHz, 2x4 MB L2 shared, 1066 MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F CL5)
Disk Subsystem: 2x72 GB 10 K SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_cc_c_9.1.045
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_fc_c_9.1.040
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 4315 25.2 4316 25.2 4316 25.2 8 4310 25.2 4316 25.2 4312 25.2
416.gamess 8 1532 102   1530 102   1534 102   8 1657 94.5 1671 93.7 1657 94.5
433.milc 8 4182 17.6 4188 17.5 4184 17.6 8 4144 17.7 4144 17.7 4144 17.7
434.zeusmp 8 1509 48.2 1501 48.5 1509 48.3 8 1536 47.4 1530 47.6 1532 47.5
435.gromacs 8 650 87.9 647 88.2 642 88.9 8 621 91.9 621 92.0 624 91.5
436.cactusADM 8 1772 53.9 1767 54.1 1760 54.3 8 1796 53.2 1796 53.2 1798 53.2
437.leslie3d 8 4095 18.4 4126 18.2 4110 18.3 8 4118 18.3 4107 18.3 4097 18.4
444.namd 8 820 78.2 823 78.0 821 78.2 8 832 77.1 832 77.1 832 77.1
447.dealII 8 974 93.9 985 92.9 971 94.2 8 964 94.9 953 96.0 971 94.2
450.soplex 8 2827 23.6 2828 23.6 2831 23.6 8 2831 23.6 2834 23.5 2830 23.6
453.povray 8 416 102   419 102   413 103   8 316 135   316 135   317 134
454.calculix 8 901 73.3 907 72.8 895 73.8 8 887 74.4 873 75.6 885 74.6
459.GemsFDTD 8 4900 17.3 4899 17.3 4898 17.3 8 4904 17.3 4902 17.3 4901 17.3
465.tonto 8 1350 58.3 1363 57.7 1364 57.7 8 1320 59.6 1324 59.4 1338 58.8
470.lbm 8 5744 19.1 5743 19.1 5743 19.1 8 5743 19.1 5741 19.1 5741 19.1
481.wrf 8 2471 36.2 2462 36.3 2477 36.1 8 2465 36.3 2476 36.1 2467 36.2
482.sphinx3 8 4569 34.1 4564 34.2 4566 34.1 8 4545 34.3 4542 34.3 4534 34.4

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.
"/usr/bin/taskset" used to bind processes to CPUs.
Environment stack size set to 'unlimited'

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.xml.
