SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R480 (3.40 GHz, Intel Xeon 7140M)

SPECint®2006 = 11.2

CPU2006 license: 3 Test date: Mar-2007
Test sponsor: Bull SAS Hardware Availability: Sep-2006
Tested by: Bull SAS Software Availability: Nov-2006

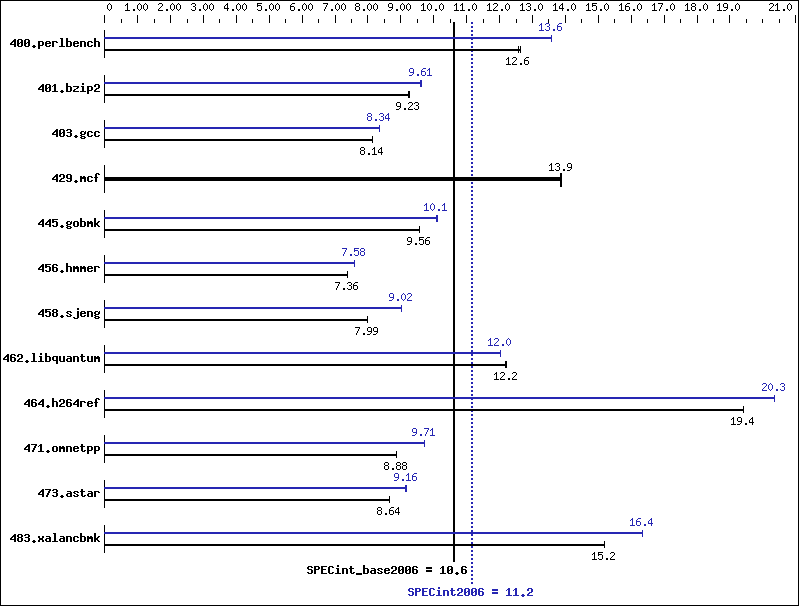

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7140M
CPU Characteristics: 3.4GHz, 800MHz bus
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (16X1GB 1Rx4 PC2-3200R-333 400MHz DDR2)
Disk Subsystem: 2x36GB SAS 15000 rpm
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise X64 Edition
Compiler: Intel C++ Compiler 9.1 for 32-bit
Build 20061103Z Package ID: W_CC_P_9.1.033
Microsoft Visual Studio .NET 2003 (libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 774 12.6  777 12.6  777 12.6  719 13.6  719 13.6  719 13.6
401.bzip2 1044 9.25 1045 9.23 1045 9.23 1004 9.62 1004 9.61 1004 9.61
403.gcc 987 8.15 989 8.14 989 8.14 965 8.34 965 8.34 965 8.34
429.mcf 658 13.9  658 13.9  658 13.9  658 13.9  658 13.9  658 13.9
445.gobmk 1097 9.56 1097 9.56 1097 9.56 1039 10.1  1039 10.1  1039 10.1
456.hmmer 1267 7.36 1267 7.36 1267 7.36 1231 7.58 1231 7.58 1231 7.58
458.sjeng 1515 7.98 1515 7.99 1515 7.99 1341 9.02 1341 9.02 1342 9.02
462.libquantum 1699 12.2  1699 12.2  1699 12.2  1721 12.0  1721 12.0  1722 12.0
464.h264ref 1140 19.4  1140 19.4  1140 19.4  1088 20.3  1088 20.3  1088 20.3
471.omnetpp 704 8.88 704 8.88 704 8.87 644 9.71 644 9.71 644 9.70
473.astar 812 8.64 812 8.64 812 8.64 767 9.16 767 9.16 767 9.15
483.xalancbmk 455 15.2  455 15.2  455 15.2  422 16.4  422 16.4  422 16.3

General Notes

 Other Configuration Notes
 /NUMPROC=1 flag was added to boot.ini to invoke
 uniprocessor environment

 The NovaScale T880 and the NovaScale R480 models are
 electronically equivalent.
 The results have been measured on a NovaScale R480 model.




Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 400.perlbench
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090714.00.xml.
