SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R480 (3.20 GHz, Intel Xeon 7130M)

SPECint®2006 = 10.2

CPU2006 license: 20 Test date: Mar-2007
Test sponsor: Bull SAS Hardware Availability: Sep-2006
Tested by: Bull SAS Software Availability: Nov-2006

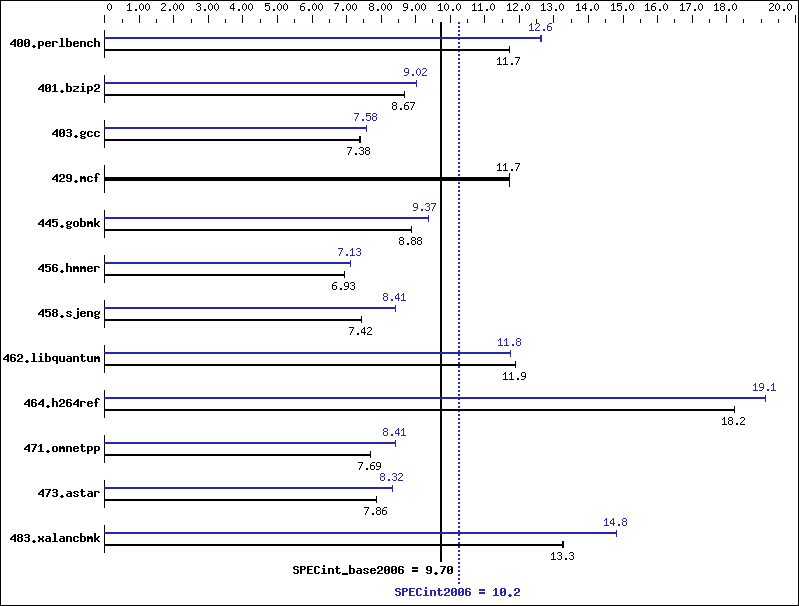

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7130M
CPU Characteristics: 3.2GHz, 800MHz bus
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (667 MHz ECC CL5 DDR2 FB-DIMM)
Disk Subsystem: 2x36GB SAS 15000 rpm
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise X64 Edition
Compiler: Intel C++ Compiler 9.1 for 32-bit
Build 20061103Z Package ID: W_CC_P_9.1.033
Microsoft Visual Studio .NET 2003 (libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 833 11.7  834 11.7  834 11.7  774 12.6  773 12.6  774 12.6
401.bzip2 1112 8.68 1114 8.67 1113 8.67 1070 9.02 1069 9.02 1070 9.02
403.gcc 1087 7.41 1090 7.38 1090 7.38 1062 7.58 1062 7.58 1063 7.57
429.mcf 779 11.7  779 11.7  779 11.7  779 11.7  779 11.7  779 11.7
445.gobmk 1181 8.88 1181 8.88 1181 8.88 1119 9.37 1119 9.37 1119 9.37
456.hmmer 1346 6.93 1346 6.93 1346 6.93 1309 7.13 1309 7.13 1309 7.13
458.sjeng 1631 7.42 1631 7.42 1631 7.42 1438 8.41 1438 8.41 1438 8.41
462.libquantum 1742 11.9  1741 11.9  1742 11.9  1763 11.8  1763 11.8  1763 11.7
464.h264ref 1214 18.2  1214 18.2  1214 18.2  1157 19.1  1157 19.1  1157 19.1
471.omnetpp 813 7.69 813 7.69 813 7.69 743 8.41 744 8.41 744 8.41
473.astar 893 7.86 893 7.86 893 7.86 843 8.32 843 8.32 843 8.32
483.xalancbmk 521 13.2  520 13.3  520 13.3  466 14.8  466 14.8  466 14.8

General Notes

 Other Configuration Notes
 /NUMPROC=1 flag was added to boot.ini to invoke
 uniprocessor environment

 The NovaScale T880 and the NovaScale R480 models are
 electronically equivalent.
 The results have been measured on a NovaScale R480 model.




Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 400.perlbench
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090714.00.xml.
