| CPU2006 license: | 3 | Test date: | Mar-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Sep-2006 |
| Tested by: | Bull SAS | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 7140M |
| CPU Characteristics: | 3.4GHz, 800MHz bus |
| CPU MHz: | 3400 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1,2,4 chips |
| Primary Cache: | 12 K micro-ops I + 16 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 16 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (16X1GB 1Rx4 PC2-3200R-333 400MHz DDR2) |
| Disk Subsystem: | 2x36GB SAS 15000 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise X64 Edition |
| Compiler: | Intel C++ Compiler 9.1 for 32-bit Build 20061103Z Package ID: W_CC_P_9.1.033 Microsoft Visual Studio .NET 2003 (libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

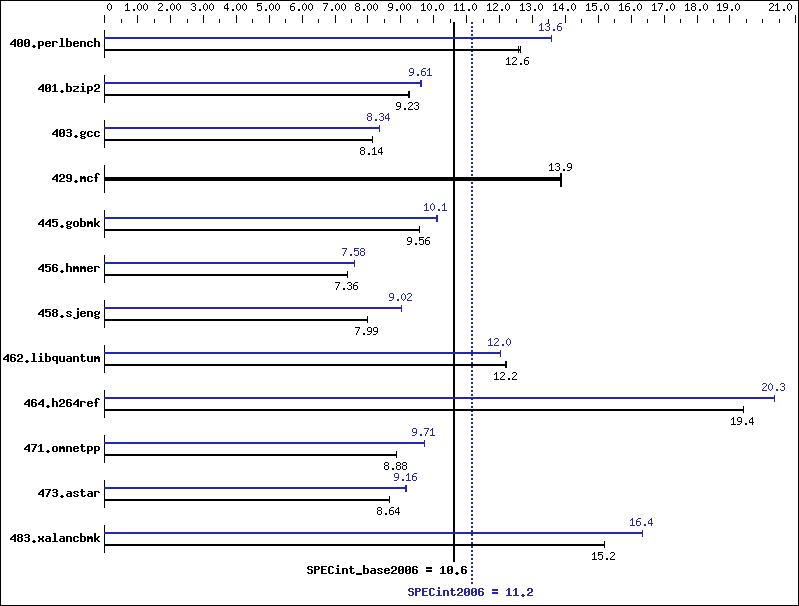

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 774 | 12.6 | 777 | 12.6 | 777 | 12.6 | 719 | 13.6 | 719 | 13.6 | 719 | 13.6 |
| 401.bzip2 | 1044 | 9.25 | 1045 | 9.23 | 1045 | 9.23 | 1004 | 9.62 | 1004 | 9.61 | 1004 | 9.61 |
| 403.gcc | 987 | 8.15 | 989 | 8.14 | 989 | 8.14 | 965 | 8.34 | 965 | 8.34 | 965 | 8.34 |
| 429.mcf | 658 | 13.9 | 658 | 13.9 | 658 | 13.9 | 658 | 13.9 | 658 | 13.9 | 658 | 13.9 |
| 445.gobmk | 1097 | 9.56 | 1097 | 9.56 | 1097 | 9.56 | 1039 | 10.1 | 1039 | 10.1 | 1039 | 10.1 |
| 456.hmmer | 1267 | 7.36 | 1267 | 7.36 | 1267 | 7.36 | 1231 | 7.58 | 1231 | 7.58 | 1231 | 7.58 |
| 458.sjeng | 1515 | 7.98 | 1515 | 7.99 | 1515 | 7.99 | 1341 | 9.02 | 1341 | 9.02 | 1342 | 9.02 |
| 462.libquantum | 1699 | 12.2 | 1699 | 12.2 | 1699 | 12.2 | 1721 | 12.0 | 1721 | 12.0 | 1722 | 12.0 |
| 464.h264ref | 1140 | 19.4 | 1140 | 19.4 | 1140 | 19.4 | 1088 | 20.3 | 1088 | 20.3 | 1088 | 20.3 |
| 471.omnetpp | 704 | 8.88 | 704 | 8.88 | 704 | 8.87 | 644 | 9.71 | 644 | 9.71 | 644 | 9.70 |
| 473.astar | 812 | 8.64 | 812 | 8.64 | 812 | 8.64 | 767 | 9.16 | 767 | 9.16 | 767 | 9.15 |
| 483.xalancbmk | 455 | 15.2 | 455 | 15.2 | 455 | 15.2 | 422 | 16.4 | 422 | 16.4 | 422 | 16.3 |
General Notes
Other Configuration Notes /NUMPROC=1 flag was added to boot.ini to invoke uniprocessor environment The NovaScale T880 and the NovaScale R480 models are electronically equivalent. The results have been measured on a NovaScale R480 model.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
