SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M9000

CPU2006 license: 6 Test date: Apr-2007
Test sponsor: Sun Microsystems Hardware Availability: Apr-2007
Tested by: Sun Microsystems Software Availability: Jul-2007

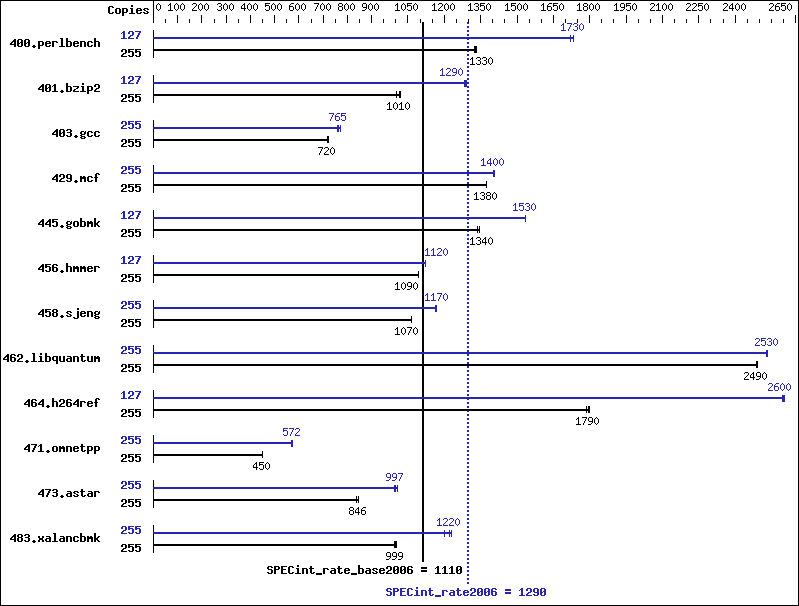

Benchmark results graph
Hardware
CPU Name: SPARC64 VI
CPU Characteristics:
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 128 cores, 64 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 16 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 128 KB I + 128 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 1 TB (512 x 2 GB)
Disk Subsystem: 792 GB RAID 1+0 created by Solaris
Volume Manager with 24 x 73 GB
10,000 RPM Fujitsu MAY2073RC SAS
Other Hardware: None
Software
Operating System: Solaris 10 7/07 (build s10s_u4wos_03)
Compiler: Sun Studio 12 (build 44.0)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 255 1880 1330 1867 1330 1876 1330 127 721 1720 716 1730 715 1730
401.bzip2 255 2450 1000 2429 1010 2418 1020 127 955 1280 950 1290 951 1290
403.gcc 255 2851 720 2852 720 2850 720 255 2706 759 2684 765 2663 771
429.mcf 255 1691 1380 1691 1380 1694 1370 255 1656 1400 1655 1410 1657 1400
445.gobmk 255 1988 1350 1991 1340 2004 1330 127 869 1530 869 1530 868 1530
456.hmmer 255 2175 1090 2178 1090 2177 1090 127 1055 1120 1055 1120 1055 1120
458.sjeng 255 2895 1070 2895 1070 2896 1070 255 2645 1170 2646 1170 2649 1160
462.libquantum 255 2121 2490 2123 2490 2124 2490 255 2084 2530 2086 2530 2088 2530
464.h264ref 255 3155 1790 3145 1790 3137 1800 127 1081 2600 1080 2600 1082 2600
471.omnetpp 255 3537 451 3538 450 3541 450 255 2785 572 2785 572 2790 571
473.astar 255 2115 846 2139 837 2112 848 255 1795 997 1802 993 1780 1010
483.xalancbmk 255 1761 999 1756 1000 1767 996 255 1432 1230 1467 1200 1441 1220

Operating System Notes


Processes were bound to cores using "submit" and "pbind".
The SPEC toolset was bound to processor 0.

These shell commands request use of local 4MB pages:
      export LD_PRELOAD=madv.so.1:mpss.so.1
      export MPSSHEAP=4MB
      export MPSSSTACK=4MB
      export MADV=access_lwp
'access_lwp' means that the next light weight
process to touch the specified address range
will access it the most heavily.

ulimit -s 131072 was used to limit the space
consumed by the stack (and therefore make more
space available to the heap).

 /etc/system parameters
    autoup=300
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache
    tune_t_fsflushr=3
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.

 The "webconsole" service was turned off using
     svcadm disable webconsole

Platform Notes


"CMU" = CPU/Memory Unit; each holds 2 or 4 CPU chips.

Memory is 8-way interleaved by filling all slots with
the same capacity DIMMs.

This result was measured using a Sun SPARC Enterprise
M9000 Server.  Note that the Fujitsu SPARC Enterprise
M9000 and Sun SPARC Enterprise M9000 are electrically
equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xcache=128/64/2:6144/256/12   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -lbsdmalloc

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xcache=128/64/2:6144/256/12   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -lbsdmalloc

Base Other Flags

C benchmarks:

 -xjobs=24   -V   -#

C++ benchmarks:

 -xjobs=24   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xalias_level=std   -Xc   -xipo=2   -xrestrict   -fma=fused   -xprefetch=latx:5   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xalias_level=strong   -fma=fused   -xprefetch=latx:5
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xarch=v8plusb   -fma=fused   -ll2amm
429.mcf:  -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -xrestrict   -xalias_level=std   -W2,-Apf:llist=3   -W2,-Apf:noinnerllist   -xprefetch=latx:5   -lfast
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xalias_level=std   -xrestrict   -fma=fused
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xipo=2   -fma=fused
458.sjeng:  Same as 456.hmmer
462.libquantum:  -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fma=fused   -xprefetch=latx:3   -lbsdmalloc
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xipo=2   -xalias_level=std   -xarch=v8plusb   -ll2amm

C++ benchmarks:

471.omnetpp:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -Qoption cg -Qlp-av=0   -fma=fused   -lfast
473.astar:  -xdepend   -library=stlport4   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -fma=fused   -xprefetch=latx:5   -lfast
483.xalancbmk:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -fma=fused   -xprefetch=latx:5   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=24   -V   -#

C++ benchmarks:

 -xjobs=24   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.xml.
