SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY BX620 S3, Intel Xeon processor X5355,
2.66 GHz

CPU2006 license: 22 Test date: Mar-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Jan-2007
Tested by: Fujitsu Siemens Computers Software Availability: Feb-2007

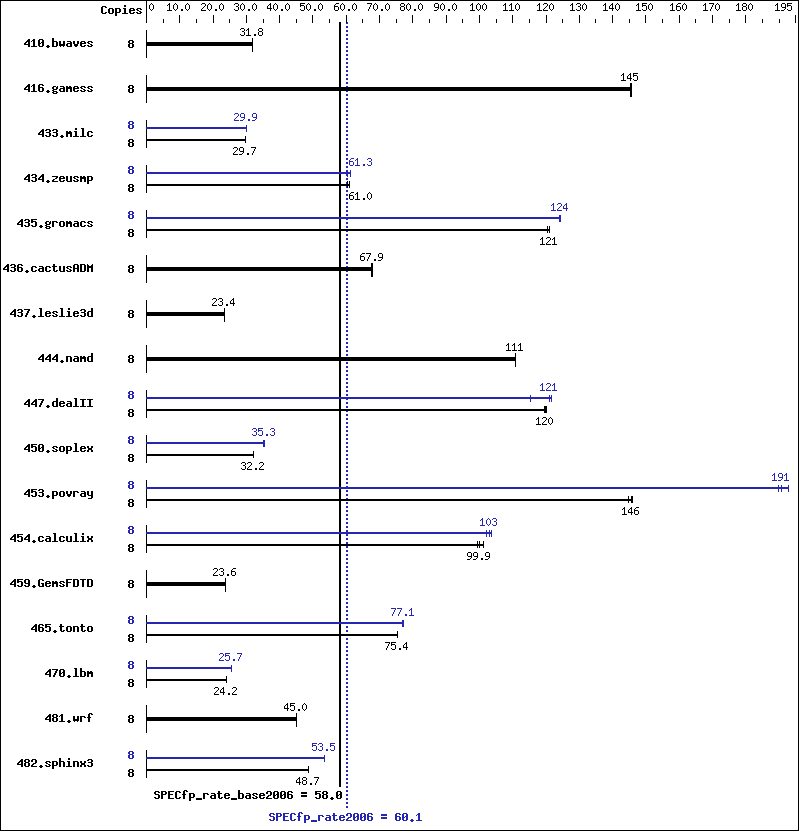

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: SAS (36GB 10000 rpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Intel Fortran Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package ID:
l_fc_p_9.1.043
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3422 31.8 3422 31.8 3422 31.8 8 3422 31.8 3422 31.8 3422 31.8
416.gamess 8 1077 145   1077 145   1076 146   8 1077 145   1077 145   1076 146
433.milc 8 2473 29.7 2468 29.8 2471 29.7 8 2453 29.9 2454 29.9 2452 29.9
434.zeusmp 8 1194 61.0 1192 61.1 1205 60.4 8 1207 60.3 1188 61.3 1186 61.4
435.gromacs 8 472 121   475 120   472 121   8 460 124   460 124   459 124
436.cactusADM 8 1406 68.0 1412 67.7 1408 67.9 8 1406 68.0 1412 67.7 1408 67.9
437.leslie3d 8 3210 23.4 3206 23.5 3218 23.4 8 3210 23.4 3206 23.5 3218 23.4
444.namd 8 579 111   579 111   579 111   8 579 111   579 111   579 111
447.dealII 8 765 120   765 120   762 120   8 793 115   756 121   753 122
450.soplex 8 2069 32.3 2070 32.2 2071 32.2 8 1889 35.3 1891 35.3 1889 35.3
453.povray 8 294 145   291 146   292 146   8 223 191   221 193   224 190
454.calculix 8 652 101   665 99.3 660 99.9 8 647 102   636 104   641 103
459.GemsFDTD 8 3595 23.6 3595 23.6 3595 23.6 8 3595 23.6 3595 23.6 3595 23.6
465.tonto 8 1042 75.5 1045 75.3 1045 75.4 8 1020 77.2 1024 76.9 1021 77.1
470.lbm 8 4548 24.2 4547 24.2 4557 24.1 8 4286 25.6 4284 25.7 4284 25.7
481.wrf 8 1988 44.9 1985 45.0 1982 45.1 8 1988 44.9 1985 45.0 1982 45.1
482.sphinx3 8 3208 48.6 3203 48.7 3196 48.8 8 2918 53.4 2914 53.5 2909 53.6

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1333 MHz

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 /opt/intel/cc/9.1.047/bin/icc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/9.1.047/bin/icpc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

Fortran benchmarks (except as noted below):

 ifort
434.zeusmp:  /opt/intel/fc/9.1.043/bin/ifort   -I/opt/intel/fc/9.1.043/include   -L/opt/intel/fc/9.1.043/lib

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
470.lbm:  Same as 433.milc
482.sphinx3:  -fast

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.
