SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Fujitsu Limited

Fujitsu SPARC Enterprise M9000

CPU2006 license: 19 Test date: Apr-2007
Test sponsor: Fujitsu Limited Hardware Availability: Apr-2007
Tested by: Fujitsu Limited Software Availability: May-2007

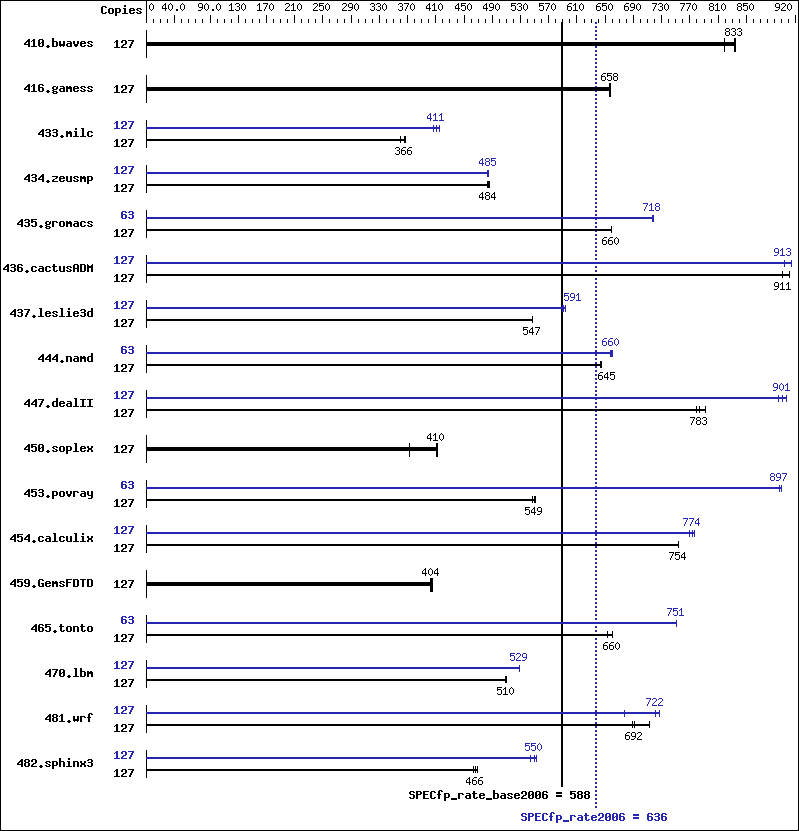

Benchmark results graph
Hardware
CPU Name: SPARC64 VI
CPU Characteristics:
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 64 cores, 32 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 8 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 128 KB I + 128 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 256 GB (256 x 1 GB)
Disk Subsystem: 1095 GB RAID 0 using 15 x 73 GB,
10,000 RPM Fujitsu ETERNUS4000 Model 80
Other Hardware: None
Software
Operating System: Solaris 10 11/06
Compiler: Sun Studio 12 (Early Access)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 127 2106 820 2071 833 2068 834 127 2106 820 2071 833 2068 834
416.gamess 127 3779 658 3782 658 3786 657 127 3779 658 3782 658 3786 657
433.milc 127 3181 367 3186 366 3245 359 127 2840 411 2869 406 2812 415
434.zeusmp 127 2388 484 2391 483 2381 485 127 2389 484 2383 485 2382 485
435.gromacs 127 1375 659 1375 660 1375 660 63 627 718 627 718 627 718
436.cactusADM 127 1666 911 1666 911 1685 901 127 1661 913 1679 904 1661 914
437.leslie3d 127 2183 547 2183 547 2185 546 127 2027 589 2011 594 2021 591
444.namd 127 1584 643 1579 645 1579 645 63 769 657 766 660 765 660
447.dealII 127 1863 780 1855 783 1835 792 127 1622 896 1602 907 1613 901
450.soplex 127 2845 372 2565 413 2581 410 127 2845 372 2565 413 2581 410
453.povray 127 1235 547 1227 551 1230 549 63 374 896 374 897 373 900
454.calculix 127 1389 754 1389 755 1391 753 127 1350 776 1354 774 1362 769
459.GemsFDTD 127 3329 405 3349 402 3334 404 127 3329 405 3349 402 3334 404
465.tonto 127 1893 660 1911 654 1892 661 63 826 751 825 751 826 751
470.lbm 127 3424 510 3419 510 3427 509 127 3299 529 3301 529 3297 529
481.wrf 127 2061 688 2050 692 1989 713 127 2093 678 1953 726 1966 722
482.sphinx3 127 5341 463 5312 466 5283 469 127 4544 545 4502 550 4476 553

Operating System Notes


Processes were bound to cores using "submit" and "pbind".

 Shell Environment:
      Stack size set to unlimited via "ulimit -s unlimited"
      MPSSHEAP=4MB
      MPSSSTACK=4MB
      MADV=access_lwp
      LD_PRELOAD=mpss.so.1:madv.so.1


 System Tunables:
 (/etc/system parameters)
    maxphys=4194304
       Defines the maximum size of I/O requests, in bytes.
    maxpgio=1024
       Defines the maximum number of page I/O requests that can
       be queued by the paging system.
    tune_t_fsflushr=30
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=300
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache

Platform Notes


"CMU" = CPU/Memory Unit; each holds 2 or 4 CPU chips.

Memory was 8-way interleaved by filling all slots with
the same capacity DIMMs.

This result was measured on a Fujitsu SPARC Enterprise
M9000 Server.  Note that the Fujitsu SPARC Enterprise
M9000 and Sun SPARC Enterprise M9000 are electrically
equivalent.

Base Compiler Invocation

C benchmarks:

 /opt/SUNWspro12_EA070303/bin/cc

C++ benchmarks:

 /opt/SUNWspro12_EA070303/bin/CC

Fortran benchmarks:

 /opt/SUNWspro12_EA070303/bin/f90

Benchmarks using both Fortran and C:

 /opt/SUNWspro12_EA070303/bin/cc   /opt/SUNWspro12_EA070303/bin/f90

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xprefetch_level=2

C++ benchmarks:

 -library=stlport4   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused

Fortran benchmarks:

 -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xprefetch_level=2

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xprefetch_level=2   -Qoption cg -fma=fused

Peak Compiler Invocation

C benchmarks:

 /opt/SUNWspro12_EA070303/bin/cc

C++ benchmarks:

 /opt/SUNWspro12_EA070303/bin/CC

Fortran benchmarks:

 /opt/SUNWspro12_EA070303/bin/f90

Benchmarks using both Fortran and C:

 /opt/SUNWspro12_EA070303/bin/cc   /opt/SUNWspro12_EA070303/bin/f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xalias_level=strong   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=v8plusb   -xprefetch_level=2   -fma=fused   -Wc,-fma=fused
482.sphinx3:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused

C++ benchmarks:

444.namd:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xdepend
447.dealII:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xdepend   -xalias_level=compatible   -xrestrict
450.soplex:  basepeak = yes
453.povray:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xdepend   -xalias_level=compatible

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -lmopt
437.leslie3d:  -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xprefetch_level=2   -xprefetch=latx:8.0
459.GemsFDTD:  basepeak = yes
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=v8plusa   -fma=fused   -Qoption cg -fma=fused   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -Qoption cg -fma=fused
436.cactusADM:  -fast(cc)   -fast(f90)   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -Qoption cg -fma=fused
454.calculix:  Same as 436.cactusADM
481.wrf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -Qoption cg -fma=fused   -xprefetch_level=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.html.
