| CPU2006 license: | 97 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Nov-2006 |
| Tested by: | Acer Incorporated | Software Availability: | Jul-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3210 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4 x 1024MB ECC DDR2-667 CL5-5-5) |
| Disk Subsystem: | 1 x 320GB 10000RPM SATA HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 EM64T (Kernel 2.6.16.21-0.8-smp) |
| Compiler: | Intel C++ Compiler 9.1 for Intel EM64T-based Package ID l_cc_c_9.1.042 Build no 20060707 Intel Fortran Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_fc_c_9.1.040 Build no 20061101 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | -- |

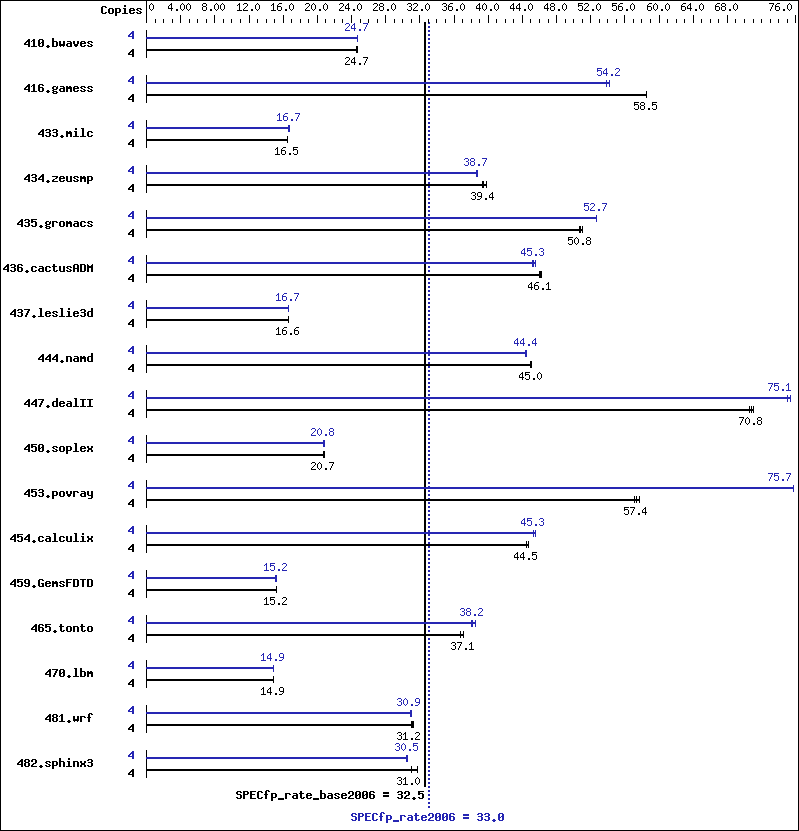

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 2217 | 24.5 | 2204 | 24.7 | 2205 | 24.7 | 4 | 2205 | 24.7 | 2201 | 24.7 | 2202 | 24.7 |
| 416.gamess | 4 | 1338 | 58.5 | 1339 | 58.5 | 1337 | 58.6 | 4 | 1455 | 53.8 | 1445 | 54.2 | 1445 | 54.2 |
| 433.milc | 4 | 2223 | 16.5 | 2221 | 16.5 | 2222 | 16.5 | 4 | 2202 | 16.7 | 2201 | 16.7 | 2201 | 16.7 |
| 434.zeusmp | 4 | 915 | 39.8 | 923 | 39.4 | 925 | 39.3 | 4 | 939 | 38.8 | 942 | 38.6 | 941 | 38.7 |
| 435.gromacs | 4 | 563 | 50.7 | 560 | 51.0 | 562 | 50.8 | 4 | 542 | 52.7 | 543 | 52.6 | 542 | 52.7 |
| 436.cactusADM | 4 | 1038 | 46.0 | 1034 | 46.2 | 1036 | 46.1 | 4 | 1055 | 45.3 | 1059 | 45.2 | 1049 | 45.6 |
| 437.leslie3d | 4 | 2264 | 16.6 | 2267 | 16.6 | 2258 | 16.7 | 4 | 2261 | 16.6 | 2258 | 16.7 | 2256 | 16.7 |
| 444.namd | 4 | 713 | 45.0 | 712 | 45.0 | 713 | 45.0 | 4 | 722 | 44.4 | 723 | 44.4 | 722 | 44.4 |
| 447.dealII | 4 | 646 | 70.8 | 649 | 70.5 | 644 | 71.1 | 4 | 607 | 75.4 | 610 | 75.0 | 610 | 75.1 |
| 450.soplex | 4 | 1608 | 20.7 | 1603 | 20.8 | 1609 | 20.7 | 4 | 1604 | 20.8 | 1607 | 20.8 | 1611 | 20.7 |
| 453.povray | 4 | 371 | 57.4 | 368 | 57.8 | 373 | 57.1 | 4 | 281 | 75.7 | 281 | 75.7 | 281 | 75.7 |
| 454.calculix | 4 | 742 | 44.5 | 737 | 44.8 | 743 | 44.4 | 4 | 725 | 45.5 | 729 | 45.3 | 729 | 45.3 |
| 459.GemsFDTD | 4 | 2784 | 15.2 | 2784 | 15.2 | 2784 | 15.2 | 4 | 2801 | 15.1 | 2788 | 15.2 | 2788 | 15.2 |
| 465.tonto | 4 | 1062 | 37.1 | 1070 | 36.8 | 1061 | 37.1 | 4 | 1023 | 38.5 | 1031 | 38.2 | 1034 | 38.1 |
| 470.lbm | 4 | 3685 | 14.9 | 3690 | 14.9 | 3690 | 14.9 | 4 | 3689 | 14.9 | 3686 | 14.9 | 3684 | 14.9 |
| 481.wrf | 4 | 1433 | 31.2 | 1429 | 31.3 | 1439 | 31.0 | 4 | 1445 | 30.9 | 1446 | 30.9 | 1440 | 31.0 |
| 482.sphinx3 | 4 | 2457 | 31.7 | 2518 | 31.0 | 2518 | 31.0 | 4 | 2556 | 30.5 | 2558 | 30.5 | 2552 | 30.5 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -fast |
Fortran benchmarks:
| -fast |
Benchmarks using both Fortran and C:
| -fast |
Peak Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
C++ benchmarks:
| -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
Fortran benchmarks:
| -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
Benchmarks using both Fortran and C:
| -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
