SPEC® CFP2006 Result

Supermicro

Motherboard PDSM4+

SPECfp®_rate2006 = 17.9

SPECfp_rate_base2006 = 17.3

CPU2006 license:	001176	Test date:	Apr-2007
Test sponsor:	Supermicro	Hardware Availability:	Apr-2007
Tested by:	Supermicro	Software Availability:	Apr-2007

Hardware
CPU Name:	Intel Core 2 Duo E4300
CPU Characteristics:	1.8GHz, 800MHz bus
CPU MHz:	1800
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	2 GB (4 X 512MB, DDR2 667MHz, CL5, ECC)
Disk Subsystem:	WD2500YS-01SHB1 250GB SATA II, 7200RPM
Other Hardware:	None

Software
Operating System:	Windows XP Professional w/ SP2
Compiler:	Intel C++ Compiler for IA32 version 9.1 Build no 20070322Z Intel Fortran Compiler for IA32 version 9.1 Build no 20070322Z
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	SmartHeap Library Version 8.0 from http://www.microquill.com/

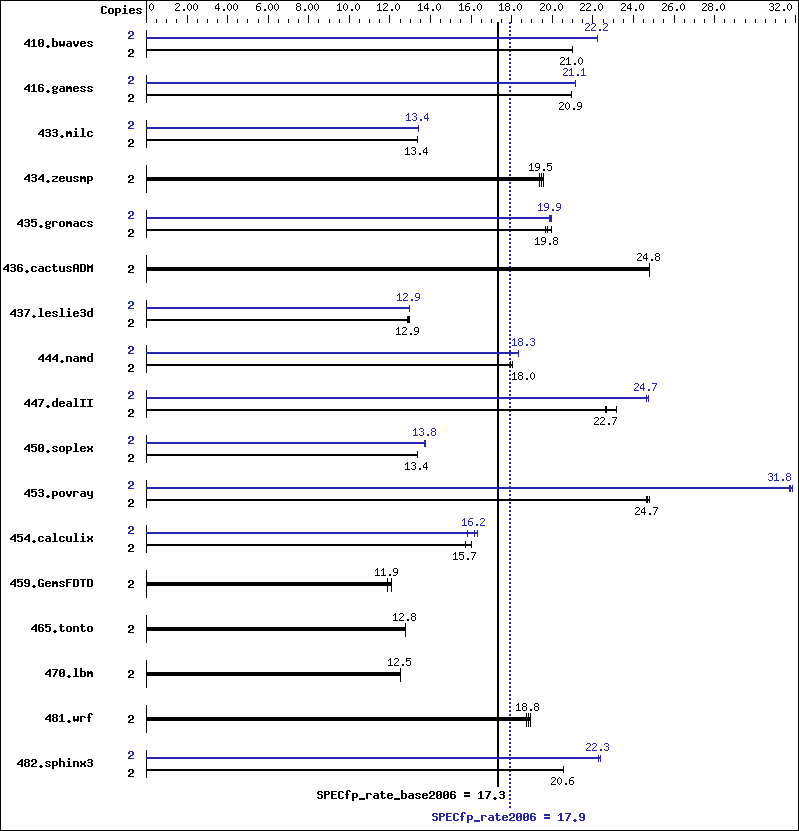

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	1295	21.0	1294	21.0	1294	21.0	2	1222	22.2	1221	22.3	1222	22.2
416.gamess	2	1870	20.9	1868	21.0	1869	20.9	2	1852	21.1	1853	21.1	1854	21.1
433.milc	2	1375	13.4	1374	13.4	1374	13.4	2	1370	13.4	1369	13.4	1370	13.4
434.zeusmp	2	931	19.6	939	19.4	935	19.5	2	931	19.6	939	19.4	935	19.5
435.gromacs	2	725	19.7	716	19.9	722	19.8	2	720	19.8	717	19.9	716	19.9
436.cactusADM	2	964	24.8	965	24.8	965	24.8	2	964	24.8	965	24.8	965	24.8
437.leslie3d	2	1461	12.9	1455	12.9	1453	12.9	2	1451	13.0	1453	12.9	1453	12.9
444.namd	2	895	17.9	889	18.0	888	18.1	2	875	18.3	876	18.3	875	18.3
447.dealII	2	988	23.2	1009	22.7	1011	22.6	2	928	24.7	924	24.8	928	24.6
450.soplex	2	1249	13.4	1247	13.4	1247	13.4	2	1213	13.8	1213	13.8	1218	13.7
453.povray	2	431	24.7	432	24.7	429	24.8	2	335	31.8	336	31.7	334	31.8
454.calculix	2	1029	16.0	1051	15.7	1050	15.7	2	1021	16.2	1010	16.3	1045	15.8
459.GemsFDTD	2	1786	11.9	1785	11.9	1757	12.1	2	1786	11.9	1785	11.9	1757	12.1
465.tonto	2	1539	12.8	1541	12.8	1542	12.8	2	1539	12.8	1541	12.8	1542	12.8
470.lbm	2	2196	12.5	2196	12.5	2196	12.5	2	2196	12.5	2196	12.5	2196	12.5
481.wrf	2	1194	18.7	1181	18.9	1186	18.8	2	1194	18.7	1181	18.9	1186	18.8
482.sphinx3	2	1897	20.6	1897	20.6	1898	20.5	2	1743	22.4	1751	22.3	1750	22.3

General Notes

 Tested systems can be used with CSE-823S-R500LP case,
 For a general system, a 420W (minimum) ATX12V power supply [8-pin +12V AND 24-pin is recommended to assure system stability].
 Product description located as of http://www.supermicro.com/products/motherboard/Xeon3000/3010/PDSM4+.cfm
 The system bus runs at 800 MHz

Base Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Peak Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE
470.lbm:	basepeak = yes
482.sphinx3:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -QxB -Qipo -O3 -Qprec-div- /F950000000 shlw32m.lib -link /FORCE:MULTIPLE

C++ benchmarks:

-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	-QxW -Qparallel -Qipo -O3 -Qprec-div- /F950000000 libguide.lib libguide40.lib -link /FORCE:MULTIPLE
416.gamess:	Same as 410.bwaves
434.zeusmp:	basepeak = yes
437.leslie3d:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE
459.GemsFDTD:	basepeak = yes
465.tonto:	basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:	-QxW -Qparallel -Qipo -O3 -Qprec-div- /F950000000 shlw32m.lib libguide.lib libguide40.lib -link /FORCE:MULTIPLE
436.cactusADM:	basepeak = yes
454.calculix:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-ia32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-ia32-flags.xml.
