SPEC® CFP2006 Result

Supermicro

Motherboard PDSBA+

SPECfp®2006 = 10.8

SPECfp_base2006 = 10.3

CPU2006 license:	001176	Test date:	May-2007
Test sponsor:	Supermicro	Hardware Availability:	Apr-2007
Tested by:	Supermicro	Software Availability:	Apr-2007

Hardware
CPU Name:	Intel Core 2 Duo E4300
CPU Characteristics:	1.8GHz, 800MHz bus
CPU MHz:	1800
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	2 GB (2X 1GB ECC, CL4, 533MHz, UnBuffer)
Disk Subsystem:	150GB SATA, 7200RPM
Other Hardware:	None

Software
Operating System:	Windows XP Professional w/ SP2
Compiler:	Intel C++ Compiler for IA32 version 9.1 Build no 20070322Z Intel Fortran Compiler for IA32 version 9.1 Build no 20070322Z
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	SmartHeap Library Version 8.0 from http://www.microquill.com/

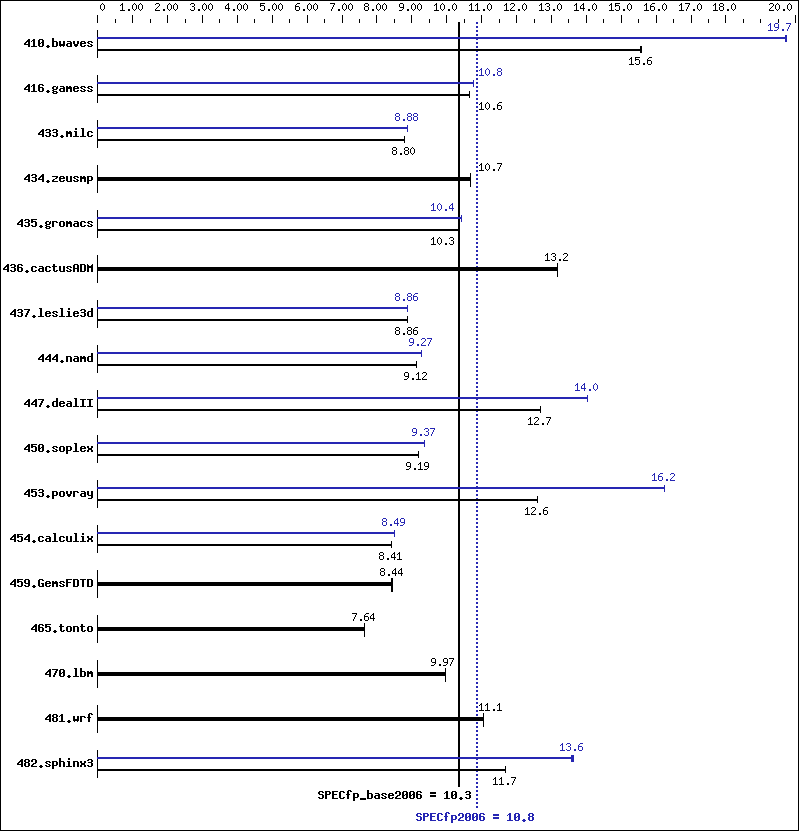

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	874	15.5	872	15.6	872	15.6	689	19.7	689	19.7	689	19.7
416.gamess	1839	10.6	1840	10.6	1840	10.6	1817	10.8	1817	10.8	1817	10.8
433.milc	1044	8.79	1043	8.80	1043	8.80	1034	8.88	1033	8.88	1034	8.88
434.zeusmp	851	10.7	851	10.7	851	10.7	851	10.7	851	10.7	851	10.7
435.gromacs	690	10.3	690	10.3	690	10.3	685	10.4	685	10.4	685	10.4
436.cactusADM	907	13.2	907	13.2	907	13.2	907	13.2	907	13.2	907	13.2
437.leslie3d	1061	8.86	1061	8.86	1060	8.87	1060	8.86	1060	8.86	1060	8.87
444.namd	879	9.12	879	9.12	879	9.12	866	9.27	865	9.27	866	9.27
447.dealII	902	12.7	902	12.7	902	12.7	816	14.0	816	14.0	816	14.0
450.soplex	908	9.18	908	9.19	908	9.19	890	9.37	891	9.36	890	9.37
453.povray	422	12.6	422	12.6	422	12.6	328	16.2	328	16.2	328	16.2
454.calculix	981	8.41	981	8.41	981	8.41	971	8.49	971	8.49	971	8.49
459.GemsFDTD	1257	8.44	1259	8.43	1258	8.44	1257	8.44	1259	8.43	1258	8.44
465.tonto	1288	7.64	1288	7.64	1288	7.64	1288	7.64	1288	7.64	1288	7.64
470.lbm	1378	9.97	1378	9.97	1378	9.97	1378	9.97	1378	9.97	1378	9.97
481.wrf	1010	11.1	1010	11.1	1010	11.1	1010	11.1	1010	11.1	1010	11.1
482.sphinx3	1667	11.7	1669	11.7	1668	11.7	1435	13.6	1434	13.6	1431	13.6

General Notes

 Tested systems can be used with SC733T-645 case,
 To ensure system stability, a 450W (minimum) ATX power supply [4-pin +12V AND (20 or 24-pin)] is required.
 Product description located as of http://www.supermicro.com/products/motherboard/Core2Duo/965/PDSBA+.cfm
 The system bus runs at 800 MHz

Base Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Peak Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE
470.lbm:	basepeak = yes
482.sphinx3:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -QxB -Qipo -O3 -Qprec-div- /F950000000 shlw32m.lib -link /FORCE:MULTIPLE

C++ benchmarks:

-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	-QxW -Qparallel -Qipo -O3 -Qprec-div- /F950000000 libguide.lib libguide40.lib -link /FORCE:MULTIPLE
416.gamess:	Same as 410.bwaves
434.zeusmp:	basepeak = yes
437.leslie3d:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE
459.GemsFDTD:	basepeak = yes
465.tonto:	basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:	-QxW -Qparallel -Qipo -O3 -Qprec-div- /F950000000 shlw32m.lib libguide.lib libguide40.lib -link /FORCE:MULTIPLE
436.cactusADM:	basepeak = yes
454.calculix:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-ia32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-ia32-flags.xml.
