| CPU2006 license: | 20 | Test date: | May-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Mar-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | 2.66 GHz, 8 MB L2, 1333 MHz bus |
| CPU MHz: | 2666 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 24 GB (12x2 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x73 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 R2 Enterprise X64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

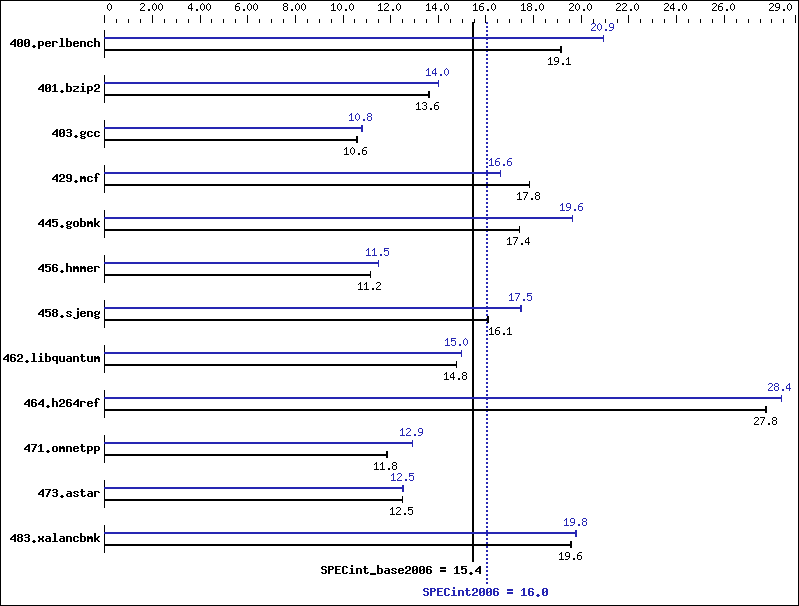

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 510 | 19.2 | 511 | 19.1 | 511 | 19.1 | 467 | 20.9 | 466 | 20.9 | 466 | 20.9 |
| 401.bzip2 | 708 | 13.6 | 710 | 13.6 | 709 | 13.6 | 690 | 14.0 | 690 | 14.0 | 690 | 14.0 |
| 403.gcc | 760 | 10.6 | 762 | 10.6 | 763 | 10.5 | 744 | 10.8 | 746 | 10.8 | 746 | 10.8 |
| 429.mcf | 512 | 17.8 | 512 | 17.8 | 511 | 17.8 | 549 | 16.6 | 549 | 16.6 | 549 | 16.6 |
| 445.gobmk | 603 | 17.4 | 603 | 17.4 | 603 | 17.4 | 534 | 19.6 | 534 | 19.6 | 534 | 19.6 |
| 456.hmmer | 836 | 11.2 | 836 | 11.2 | 836 | 11.2 | 814 | 11.5 | 814 | 11.5 | 814 | 11.5 |
| 458.sjeng | 753 | 16.1 | 753 | 16.1 | 752 | 16.1 | 692 | 17.5 | 693 | 17.5 | 692 | 17.5 |
| 462.libquantum | 1403 | 14.8 | 1403 | 14.8 | 1403 | 14.8 | 1382 | 15.0 | 1382 | 15.0 | 1385 | 15.0 |
| 464.h264ref | 797 | 27.8 | 797 | 27.8 | 797 | 27.8 | 779 | 28.4 | 779 | 28.4 | 779 | 28.4 |
| 471.omnetpp | 529 | 11.8 | 529 | 11.8 | 528 | 11.8 | 484 | 12.9 | 484 | 12.9 | 484 | 12.9 |
| 473.astar | 562 | 12.5 | 562 | 12.5 | 562 | 12.5 | 562 | 12.5 | 561 | 12.5 | 561 | 12.5 |
| 483.xalancbmk | 352 | 19.6 | 353 | 19.5 | 352 | 19.6 | 349 | 19.8 | 348 | 19.8 | 348 | 19.8 |
Operating System Notes
/NUMPROC=1 flag was added to boot.ini to invoke uniprocessor environment
General Notes
The NovaScale R440 and the NovaScale R460 models are electronically equivalent. The results have been measured on a NovaScale R440 model.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
