SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M9000

CPU2006 license: 6 Test date: May-2007
Test sponsor: Sun Microsystems Hardware Availability: Apr-2007
Tested by: Fujitsu Limited Software Availability: May-2007

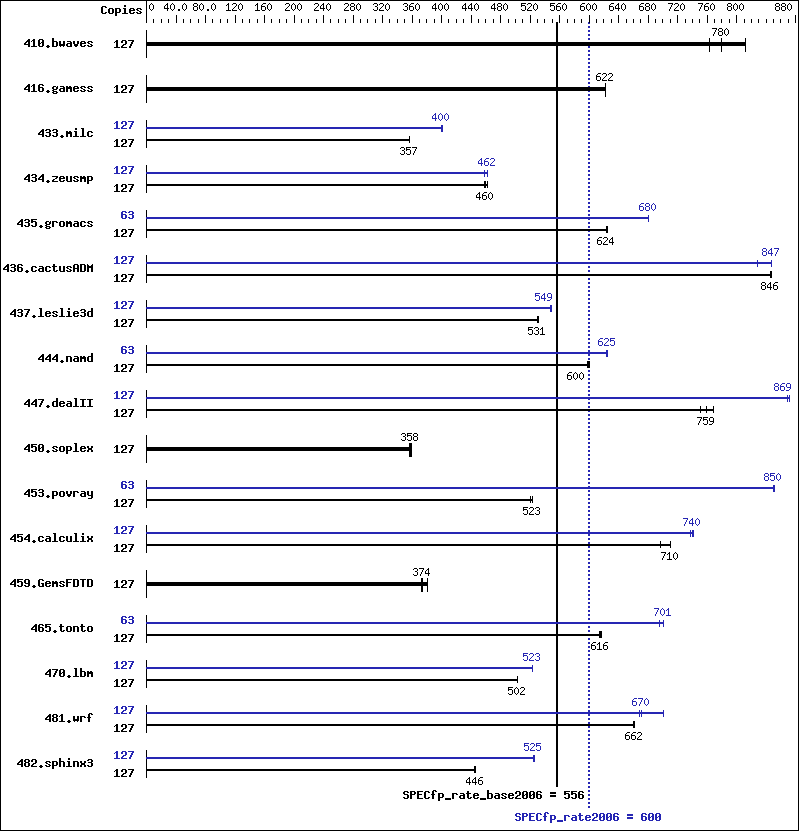

Benchmark results graph
Hardware
CPU Name: SPARC64 VI
CPU Characteristics:
CPU MHz: 2280
FPU: Integrated
CPU(s) enabled: 64 cores, 32 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 8 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 128 KB I + 128 KB D on chip per core
Secondary Cache: 5 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 256 GB (256 x 1 GB)
Disk Subsystem: 1095 GB RAID 0 using 15 x 73 GB,
10,000 RPM Fujitsu ETERNUS4000 Model 80
Other Hardware: None
Software
Operating System: Solaris 10 11/06
Compiler: Sun Studio 12 (Early Access)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 127 2263 763 2214 780 2124 812 127 2263 763 2214 780 2124 812
416.gamess 127 3996 622 3994 623 3999 622 127 3996 622 3994 623 3999 622
433.milc 127 3267 357 3266 357 3266 357 127 2911 400 2911 400 2907 401
434.zeusmp 127 2501 462 2522 458 2513 460 127 2503 462 2498 463 2526 458
435.gromacs 127 1452 624 1453 624 1453 624 63 661 681 661 680 661 680
436.cactusADM 127 1793 846 1794 846 1791 847 127 1832 828 1790 848 1792 847
437.leslie3d 127 2249 531 2252 530 2250 531 127 2174 549 2178 548 2172 550
444.namd 127 1699 600 1697 600 1704 598 63 808 625 808 625 810 624
447.dealII 127 1915 759 1891 768 1934 751 127 1673 868 1672 869 1666 872
450.soplex 127 2969 357 2944 360 2955 358 127 2969 357 2944 360 2955 358
453.povray 127 1297 521 1293 523 1292 523 63 394 851 394 850 394 850
454.calculix 127 1504 697 1476 710 1475 711 127 1420 738 1416 740 1414 741
459.GemsFDTD 127 3543 380 3609 373 3601 374 127 3543 380 3609 373 3601 374
465.tonto 127 2028 616 2033 615 2029 616 63 884 701 892 695 884 701
470.lbm 127 3473 502 3473 503 3474 502 127 3337 523 3337 523 3337 523
481.wrf 127 2144 662 2147 661 2144 662 127 2116 670 2025 700 2125 668
482.sphinx3 127 5576 444 5544 446 5548 446 127 4703 526 4715 525 4720 524

Operating System Notes


Processes were bound to cores using "submit" and "pbind".
These shell commands request use of local 4MB pages:
      MPSSHEAP=4MB
      MPSSSTACK=4MB
      MADV=access_lwp
      LD_PRELOAD=mpss.so.1:madv.so.1
  'access_lwp' means that the next light weight
  process to touch the specified address range
  will access it the most heavily.
Stack size set to unlimited via "ulimit -s unlimited"

 System Tunables:
 (/etc/system parameters)
    maxphys=4194304
       Defines the maximum size of I/O requests, in bytes.
    maxpgio=1024
       Defines the maximum number of page I/O requests that can
       be queued by the paging system.
    tune_t_fsflushr=30
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=300
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache

Platform Notes


"CMU" = CPU/Memory Unit; each holds 2 or 4 CPU chips.

Memory is 8-way interleaved by filling all slots with
the same capacity DIMMs.

This result is measured on a Fujitsu SPARC Enterprise
M9000 Server.  Note that the Fujitsu SPARC Enterprise
M9000 and Sun SPARC Enterprise M9000 are electrically
equivalent.

Base Compiler Invocation

C benchmarks:

 /opt/SUNWspro12_EA070303/bin/cc

C++ benchmarks:

 /opt/SUNWspro12_EA070303/bin/CC

Fortran benchmarks:

 /opt/SUNWspro12_EA070303/bin/f90

Benchmarks using both Fortran and C:

 /opt/SUNWspro12_EA070303/bin/cc   /opt/SUNWspro12_EA070303/bin/f90

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xprefetch_level=2

C++ benchmarks:

 -library=stlport4   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused

Fortran benchmarks:

 -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xprefetch_level=2

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xprefetch_level=2   -Qoption cg -fma=fused

Peak Compiler Invocation

C benchmarks:

 /opt/SUNWspro12_EA070303/bin/cc

C++ benchmarks:

 /opt/SUNWspro12_EA070303/bin/CC

Fortran benchmarks:

 /opt/SUNWspro12_EA070303/bin/f90

Benchmarks using both Fortran and C:

 /opt/SUNWspro12_EA070303/bin/cc   /opt/SUNWspro12_EA070303/bin/f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xalias_level=strong   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=v8plusb   -xprefetch_level=2   -fma=fused   -Wc,-fma=fused
482.sphinx3:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused

C++ benchmarks:

444.namd:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xdepend
447.dealII:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xdepend   -xalias_level=compatible   -xrestrict
450.soplex:  basepeak = yes
453.povray:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xdepend   -xalias_level=compatible

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -lmopt
437.leslie3d:  -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xprefetch_level=2   -xprefetch=latx:8.0
459.GemsFDTD:  basepeak = yes
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=v8plusa   -fma=fused   -Qoption cg -fma=fused   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -Qoption cg -fma=fused
436.cactusADM:  -fast(cc)   -fast(f90)   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -Qoption cg -fma=fused
454.calculix:  Same as 436.cactusADM
481.wrf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -Qoption cg -fma=fused   -xprefetch_level=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.xml.
