SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R460
(Intel Xeon processor 5120,1.86GHz)

SPECfp®2006 = 10.9

CPU2006 license: 20 Test date: May-2007
Test sponsor: Bull SAS Hardware Availability: Mar-2007
Tested by: Bull SAS Software Availability: Dec-2006

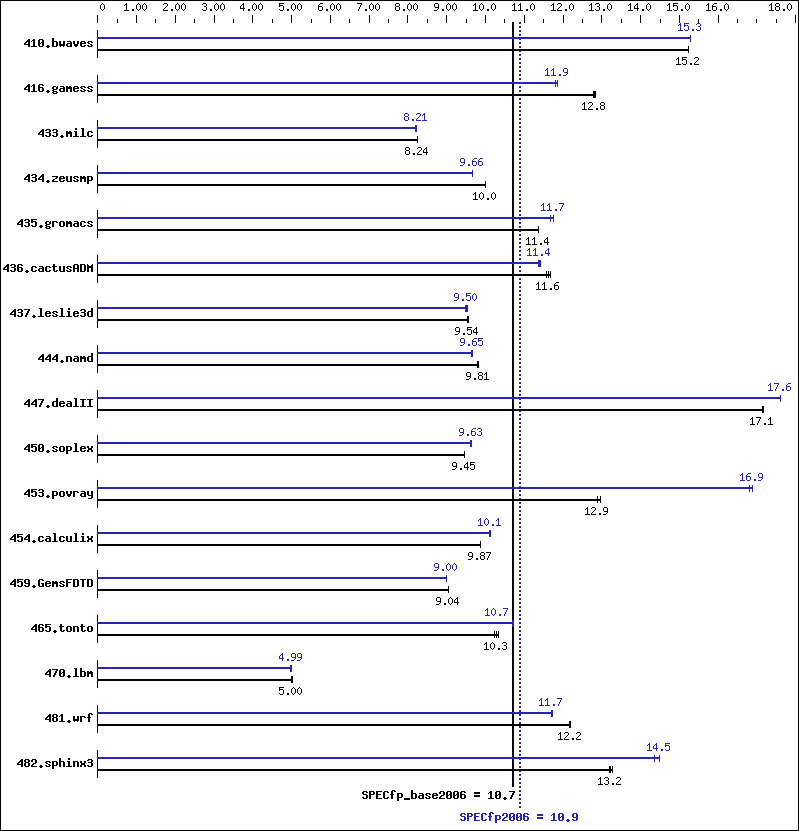

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5120
CPU Characteristics: 1.86 GHz, 4 MB L2, 1066 MHz system bus
CPU MHz: 1866
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 1 to 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 24 GB (12x2 GB) FB-DIMM PC2-5300F ECC CL5
Disk Subsystem: 1x73 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (EM64T)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_cc_c_9.1.045 Build no 20061101
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_fc_c_9.1.040 Build no 20061101
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 892 15.2  892 15.2  892 15.2  890 15.3  890 15.3  890 15.3
416.gamess 1526 12.8  1531 12.8  1528 12.8  1652 11.9  1652 11.9  1657 11.8
433.milc 1114 8.24 1114 8.24 1114 8.24 1118 8.21 1119 8.20 1118 8.21
434.zeusmp 910 10.0  911 9.99 910 10.0  942 9.66 942 9.66 942 9.66
435.gromacs 628 11.4  628 11.4  628 11.4  612 11.7  608 11.7  608 11.7
436.cactusADM 1027 11.6  1032 11.6  1024 11.7  1050 11.4  1050 11.4  1047 11.4
437.leslie3d 985 9.54 986 9.53 983 9.56 987 9.53 989 9.50 990 9.49
444.namd 818 9.80 816 9.83 818 9.81 830 9.66 832 9.64 831 9.65
447.dealII 668 17.1  667 17.1  667 17.2  650 17.6  649 17.6  650 17.6
450.soplex 883 9.45 882 9.45 883 9.45 866 9.63 865 9.64 867 9.61
453.povray 413 12.9  411 13.0  413 12.9  315 16.9  317 16.8  315 16.9
454.calculix 835 9.88 836 9.87 836 9.87 816 10.1  814 10.1  815 10.1
459.GemsFDTD 1173 9.04 1173 9.04 1173 9.04 1179 9.00 1181 8.98 1179 9.00
465.tonto 952 10.3  962 10.2  957 10.3  917 10.7  920 10.7  917 10.7
470.lbm 2742 5.01 2747 5.00 2754 4.99 2747 5.00 2755 4.99 2758 4.98
481.wrf 917 12.2  918 12.2  916 12.2  952 11.7  954 11.7  954 11.7
482.sphinx3 1468 13.3  1473 13.2  1476 13.2  1344 14.5  1356 14.4  1345 14.5

Operating System Notes

 Environment stack size set to 'unlimited'

 system was booted uniprocessor by setting "maxcpus=0"
 kernel parameter in menu.lst

 /usr/bin/taskset utility used to bind CPU(s) to processes

General Notes

    The NovaScale R440 and the NovaScale R460 models are
    electronically equivalent.
    The results have been measured on a NovaScale R460 model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel91_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel91_flags.xml.
