| CPU2006 license: | 1176 | Test date: | Mar-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Jan-2007 |
| Tested by: | Supermicro | Software Availability: | Aug-2006 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 2222 SE |
| CPU Characteristics: | |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1GB, DDR2-667 CL5 ECC Reg) |
| Disk Subsystem: | SATA, 400 GB |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 9 SP3 64-bit kernel |
| Compiler: | QLogic PathScale Compiler Suite, Release 2.5 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap 8.0 32 bit Library for Linux |

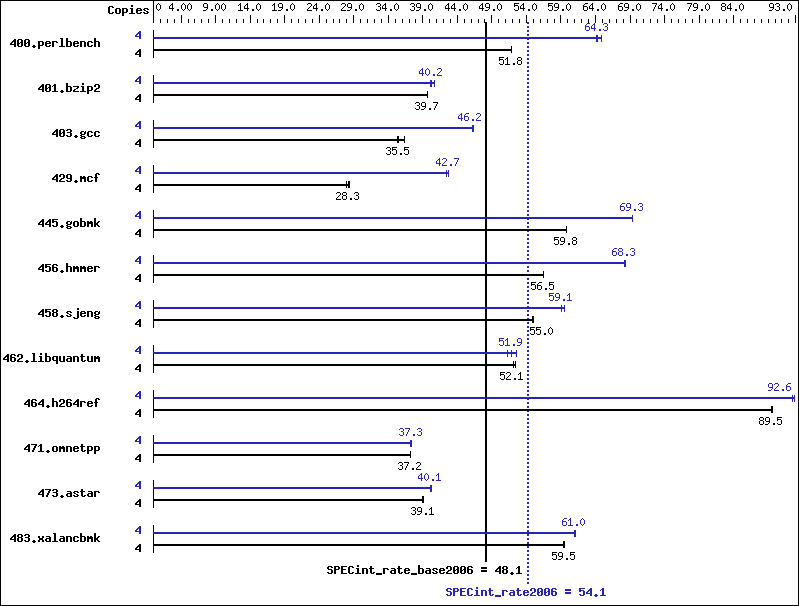

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 753 | 51.9 | 754 | 51.8 | 754 | 51.8 | 4 | 610 | 64.1 | 608 | 64.3 | 602 | 64.9 |
| 401.bzip2 | 4 | 974 | 39.6 | 973 | 39.7 | 973 | 39.7 | 4 | 960 | 40.2 | 962 | 40.1 | 949 | 40.7 |
| 403.gcc | 4 | 907 | 35.5 | 912 | 35.3 | 887 | 36.3 | 4 | 697 | 46.2 | 697 | 46.2 | 696 | 46.3 |
| 429.mcf | 4 | 1304 | 28.0 | 1287 | 28.3 | 1291 | 28.3 | 4 | 859 | 42.5 | 853 | 42.8 | 854 | 42.7 |
| 445.gobmk | 4 | 701 | 59.9 | 701 | 59.8 | 702 | 59.8 | 4 | 605 | 69.3 | 605 | 69.4 | 605 | 69.3 |
| 456.hmmer | 4 | 661 | 56.5 | 661 | 56.5 | 662 | 56.4 | 4 | 546 | 68.4 | 547 | 68.3 | 547 | 68.2 |
| 458.sjeng | 4 | 880 | 55.0 | 881 | 54.9 | 879 | 55.1 | 4 | 819 | 59.1 | 819 | 59.1 | 814 | 59.5 |
| 462.libquantum | 4 | 1591 | 52.1 | 1583 | 52.4 | 1590 | 52.1 | 4 | 1597 | 51.9 | 1615 | 51.3 | 1577 | 52.6 |
| 464.h264ref | 4 | 989 | 89.5 | 989 | 89.5 | 988 | 89.6 | 4 | 957 | 92.5 | 956 | 92.6 | 954 | 92.8 |
| 471.omnetpp | 4 | 672 | 37.2 | 671 | 37.2 | 672 | 37.2 | 4 | 670 | 37.3 | 669 | 37.3 | 672 | 37.2 |
| 473.astar | 4 | 718 | 39.1 | 718 | 39.1 | 720 | 39.0 | 4 | 700 | 40.1 | 700 | 40.1 | 697 | 40.3 |
| 483.xalancbmk | 4 | 464 | 59.5 | 465 | 59.4 | 464 | 59.5 | 4 | 452 | 61.0 | 452 | 61.0 | 453 | 60.9 |
General Notes
taskset utility used to bind CPU(s) to processes All memory slots filled on all chips Tested systems can be used with CSE-825TQ-R700LPV case, To ensure system stability, a 550W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/Aplus/motherboard/Opteron2000/MCP55/H8DM3-2.cfm
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -Ofast |
C++ benchmarks:
| -Ofast -m32 -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast |
| 401.bzip2: | -O3 -LNO:ou_prod_max=10 -OPT:Ofast -OPT:alias=disjoint |
| 403.gcc: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast |
| 429.mcf: | -m32 -O2 -ipa -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap |
| 445.gobmk: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -LNO:simd=0 -LNO:minvariant=off -WOPT:retype_expr=on |
| 456.hmmer: | -O2 -OPT:alias=disjoint -WOPT:aggstr=0 -CG:cflow=0 |
| 458.sjeng: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=50000 -IPA:pu_reorder=2 |
| 462.libquantum: | -O3 -ipa -CG:local_fwd_sched=on -IPA:space=1000 |
| 464.h264ref: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 |
