| CPU2006 license: | 872 | Test date: | May-2007 |
|---|---|---|---|
| Test sponsor: | HITACHI | Hardware Availability: | Sep-2006 |
| Tested by: | HITACHI | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5160 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB(8 x 2 GB PC2-4200F) |
| Disk Subsystem: | 1 x 73GB 10000rpm SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows Server 2003 R2, Enterprise x64 Edition |
| Compiler: | Intel C++ Compiler for EM64T version 9.1 Build 20061104 Intel Fortran Compiler for EM64T version 9.1 Build 20061104 Microsoft Visual Studio 2005 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

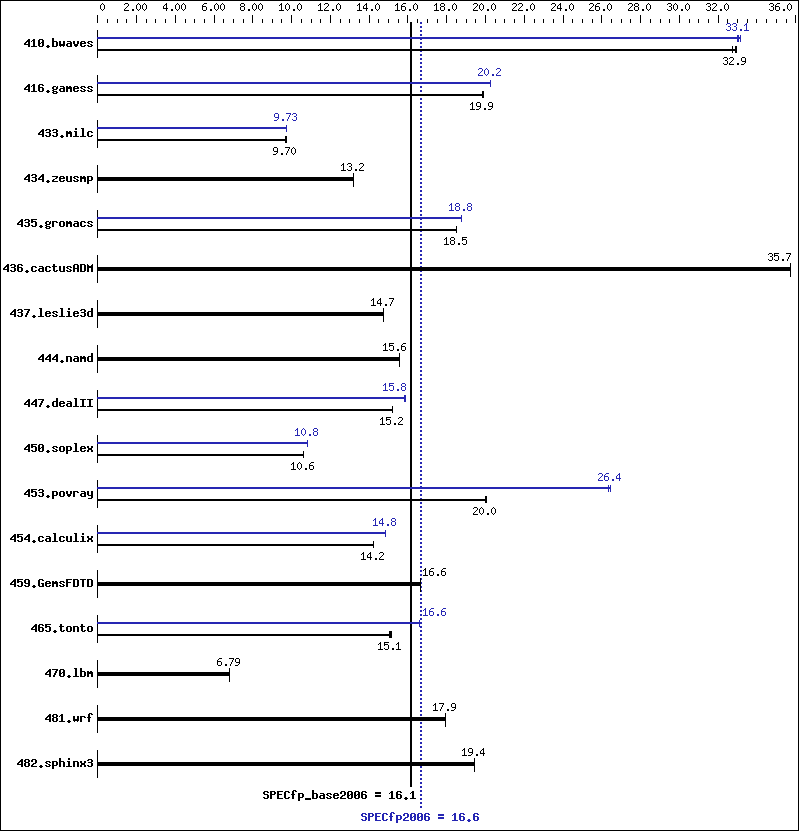

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 415 | 32.8 | 413 | 32.9 | 412 | 33.0 | 410 | 33.2 | 411 | 33.1 | 412 | 33.0 |
| 416.gamess | 986 | 19.9 | 986 | 19.8 | 985 | 19.9 | 967 | 20.2 | 968 | 20.2 | 968 | 20.2 |
| 433.milc | 947 | 9.70 | 948 | 9.68 | 945 | 9.71 | 945 | 9.71 | 941 | 9.76 | 943 | 9.73 |
| 434.zeusmp | 691 | 13.2 | 691 | 13.2 | 691 | 13.2 | 691 | 13.2 | 691 | 13.2 | 691 | 13.2 |
| 435.gromacs | 386 | 18.5 | 386 | 18.5 | 386 | 18.5 | 380 | 18.8 | 380 | 18.8 | 380 | 18.8 |
| 436.cactusADM | 335 | 35.7 | 335 | 35.7 | 335 | 35.7 | 335 | 35.7 | 335 | 35.7 | 335 | 35.7 |
| 437.leslie3d | 639 | 14.7 | 639 | 14.7 | 638 | 14.7 | 639 | 14.7 | 639 | 14.7 | 638 | 14.7 |
| 444.namd | 515 | 15.6 | 515 | 15.6 | 515 | 15.6 | 515 | 15.6 | 515 | 15.6 | 515 | 15.6 |
| 447.dealII | 753 | 15.2 | 754 | 15.2 | 753 | 15.2 | 722 | 15.8 | 722 | 15.8 | 722 | 15.9 |
| 450.soplex | 786 | 10.6 | 786 | 10.6 | 786 | 10.6 | 772 | 10.8 | 771 | 10.8 | 772 | 10.8 |
| 453.povray | 266 | 20.0 | 266 | 20.0 | 266 | 20.0 | 202 | 26.3 | 201 | 26.4 | 201 | 26.4 |
| 454.calculix | 581 | 14.2 | 581 | 14.2 | 581 | 14.2 | 556 | 14.8 | 556 | 14.8 | 556 | 14.8 |
| 459.GemsFDTD | 638 | 16.6 | 638 | 16.6 | 638 | 16.6 | 638 | 16.6 | 638 | 16.6 | 638 | 16.6 |
| 465.tonto | 653 | 15.1 | 650 | 15.1 | 651 | 15.1 | 593 | 16.6 | 593 | 16.6 | 594 | 16.6 |
| 470.lbm | 2022 | 6.79 | 2023 | 6.79 | 2022 | 6.79 | 2022 | 6.79 | 2023 | 6.79 | 2022 | 6.79 |
| 481.wrf | 623 | 17.9 | 623 | 17.9 | 623 | 17.9 | 623 | 17.9 | 623 | 17.9 | 623 | 17.9 |
| 482.sphinx3 | 1003 | 19.4 | 1003 | 19.4 | 1003 | 19.4 | 1003 | 19.4 | 1003 | 19.4 | 1003 | 19.4 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel /F950000000 shlW32M.lib |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features /F950000000 shlW32M.lib |
Fortran benchmarks:
| -fast -Qparallel /F950000000 shlW32M.lib |
Benchmarks using both Fortran and C:
| -fast -Qparallel /F950000000 shlW32M.lib |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlW32M.lib |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features /F950000000 shlW32M.lib |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel /F950000000 shlW32M.lib |
| 416.gamess: | -fast /F950000000 shlW32M.lib |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlW32M.lib |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
