SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Limited

PRIMEQUEST 540

CPU2006 license: 19 Test date: May-2007
Test sponsor: Fujitsu Limited Hardware Availability: Aug-2006
Tested by: Fujitsu Limited Software Availability: Apr-2007

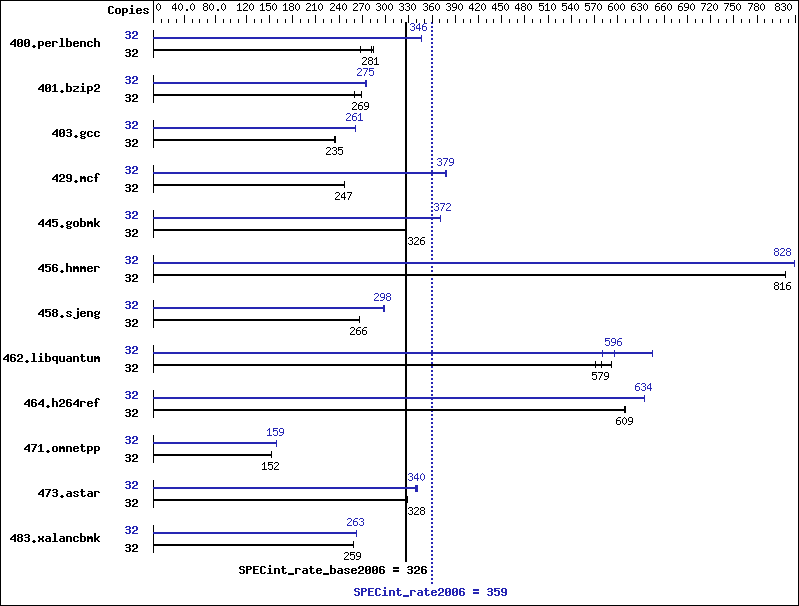

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9050
CPU Characteristics: 1.6GHz/24MB, 533MHz FSB
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 32 cores, 16 chips, 2 cores/chip
CPU(s) orderable: 1-16 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 12 MB I+D on chip per core
Other Cache: None
Memory: 128 GB (128 x 1GB DDR2-533 DIMMs)
Disk Subsystem: Fujitsu MAW3147NC (SCSI Ultra 320) x 2
147GB 10,025rpm, No RAID configuration
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux 5
Compiler: Intel C++ Compiler for Linux 9.1
(Build 20061105)
Auto Parallel: No
File System: ext2
System State: Single-user
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill Smartheap 8.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 32 1111 281 1167 268 1101 284 32 904 346 902 347 903 346
401.bzip2 32 1147 269 1186 260 1147 269 32 1124 275 1125 274 1123 275
403.gcc 32 1096 235 1098 235 1096 235 32 987 261 986 261 989 260
429.mcf 32 1183 247 1184 247 1183 247 32 773 378 770 379 770 379
445.gobmk 32 1030 326 1029 326 1030 326 32 904 372 903 372 904 371
456.hmmer 32 366 816 366 816 365 817 32 360 828 361 828 361 828
458.sjeng 32 1453 267 1454 266 1454 266 32 1300 298 1301 298 1301 298
462.libquantum 32 1161 571 1121 591 1145 579 32 1142 581 1112 596 1028 645
464.h264ref 32 1162 609 1162 609 1162 609 32 1116 634 1116 634 1116 634
471.omnetpp 32 1314 152 1313 152 1313 152 32 1255 159 1255 159 1255 159
473.astar 32 684 329 686 328 685 328 32 661 340 663 339 658 342
483.xalancbmk 32 853 259 853 259 853 259 32 841 262 840 263 841 263

General Notes


 Processes are bound to CPUs using taskset.
 limit stacksize unlimited
 Memory system is in "Non Mirror Mode".

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_IA64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -IPF_fp_relaxed   -ansi-alias

C++ benchmarks:

 -fast   -IPF_fp_relaxed   -ansi-alias   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -IPF_fp_relaxed   -mtune=itanium2-p9000   -inline-max-size=550   -inline-min-size=40
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -IPF_fp_relaxed   -auto-ilp32   -ansi-alias
403.gcc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -IPF_fp_relaxed   -auto-ilp32   -ansi-alias   -opt-mem-bandwidth2
429.mcf:  -fast   -IPF_fp_relaxed   -auto-ilp32   -ansi   -inline-max-total-size=5000
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -O2   -IPF_fp_relaxed   -static   -ipo   -auto-ilp32
456.hmmer:  -fast   -IPF_fp_relaxed   -auto-ilp32
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -IPF_fp_relaxed
462.libquantum:  -fast   -IPF_fp_relaxed   -ansi-alias   -auto-ilp32   -mtune=itanium2-p9000
464.h264ref:  -fast   -IPF_fp_relaxed   -inline-max-size=100

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -O2   -IPF_fp_relaxed   -static   -ipo   -inline-max-per-routine=50   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -O2   -static   -ipo   -inline-max-size=5000   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a
483.xalancbmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -O2   -static   -ipo   -ansi-alias   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Fujitsu.PQ580.ipf.linux.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Fujitsu.PQ580.ipf.linux.flags.xml.
