| CPU2006 license: | 22 | Test date: | May-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | May-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Mar-2007 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 2212 |
| CPU Characteristics: | 2212 |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (8x4 GB DDR2 PC2-5300P, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | SAS (36GB 15.4 krpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 for AMD64/EM64T |
| Compiler: | QLogic PathScale Compiler Suite, - Release 3.0 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user run level 3 |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap 8.1 |

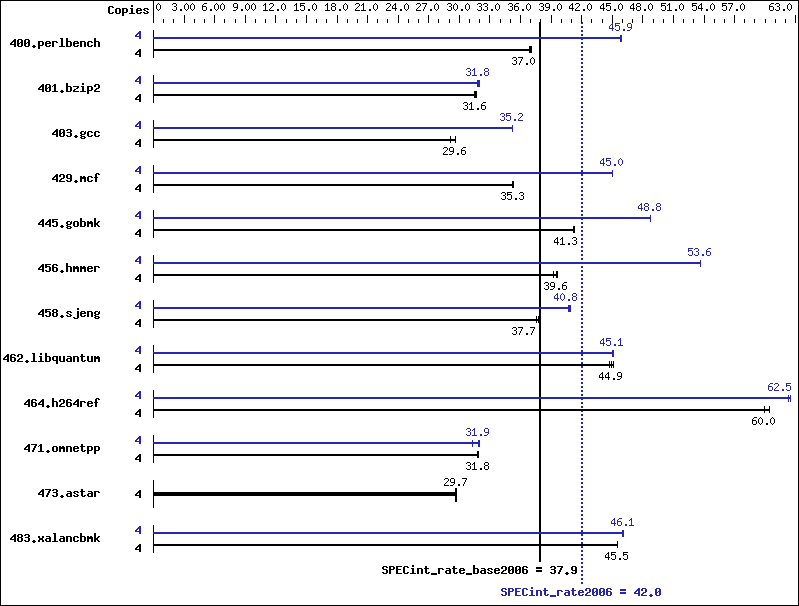

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 1058 | 36.9 | 1053 | 37.1 | 1056 | 37.0 | 4 | 851 | 45.9 | 852 | 45.9 | 853 | 45.8 |
| 401.bzip2 | 4 | 1222 | 31.6 | 1220 | 31.6 | 1227 | 31.5 | 4 | 1213 | 31.8 | 1208 | 31.9 | 1212 | 31.8 |
| 403.gcc | 4 | 1105 | 29.1 | 1086 | 29.6 | 1089 | 29.6 | 4 | 914 | 35.2 | 915 | 35.2 | 916 | 35.2 |
| 429.mcf | 4 | 1033 | 35.3 | 1034 | 35.3 | 1035 | 35.2 | 4 | 811 | 45.0 | 810 | 45.0 | 810 | 45.0 |
| 445.gobmk | 4 | 1016 | 41.3 | 1017 | 41.3 | 1017 | 41.2 | 4 | 860 | 48.8 | 861 | 48.8 | 861 | 48.8 |
| 456.hmmer | 4 | 943 | 39.6 | 943 | 39.6 | 951 | 39.2 | 4 | 696 | 53.6 | 696 | 53.6 | 696 | 53.7 |
| 458.sjeng | 4 | 1287 | 37.6 | 1283 | 37.7 | 1283 | 37.7 | 4 | 1184 | 40.9 | 1186 | 40.8 | 1190 | 40.7 |
| 462.libquantum | 4 | 1853 | 44.7 | 1844 | 44.9 | 1836 | 45.1 | 4 | 1839 | 45.1 | 1840 | 45.0 | 1839 | 45.1 |
| 464.h264ref | 4 | 1477 | 59.9 | 1466 | 60.4 | 1476 | 60.0 | 4 | 1420 | 62.3 | 1417 | 62.5 | 1417 | 62.5 |
| 471.omnetpp | 4 | 785 | 31.8 | 785 | 31.9 | 786 | 31.8 | 4 | 782 | 32.0 | 798 | 31.3 | 784 | 31.9 |
| 473.astar | 4 | 946 | 29.7 | 945 | 29.7 | 947 | 29.7 | 4 | 946 | 29.7 | 945 | 29.7 | 947 | 29.7 |
| 483.xalancbmk | 4 | 606 | 45.6 | 607 | 45.5 | 607 | 45.5 | 4 | 599 | 46.1 | 598 | 46.1 | 599 | 46.1 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' has been used to bind processes to CPUs
General Notes
BIOS settings: Node Interleave = disabled For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -Ofast -OPT:malloc_alg=1 |
C++ benchmarks:
| -Ofast -m32 -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:opt=0 |
| 401.bzip2: | -O3 -LNO:ou_prod_max=10 -OPT:Ofast -OPT:alias=disjoint |
| 403.gcc: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast |
| 429.mcf: | -m32 -O3 -ipa -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 445.gobmk: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -LNO:simd=0 -LNO:minvariant=off -WOPT:retype_expr=on |
| 456.hmmer: | -O2 -OPT:alias=disjoint -OPT:malloc_alg=1 -CG:cflow=0 |
| 458.sjeng: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=50000 -IPA:pu_reorder=2 |
| 462.libquantum: | -O3 -ipa -CG:local_fwd_sched=on -IPA:space=1000 |
| 464.h264ref: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 |
C++ benchmarks:
| 471.omnetpp: | -Ofast -CG:gcm=off -m32 -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -Ofast -m32 -OPT:unroll_times_max=8 -L/opt/SmartHeap_8.1/lib -lsmartheap |
