SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale T820
(Intel Xeon processor 3040, 1.86GHz)

CPU2006 license: 20 Test date: May-2007
Test sponsor: Bull SAS Hardware Availability: Mar-2007
Tested by: Bull SAS Software Availability: Dec-2006

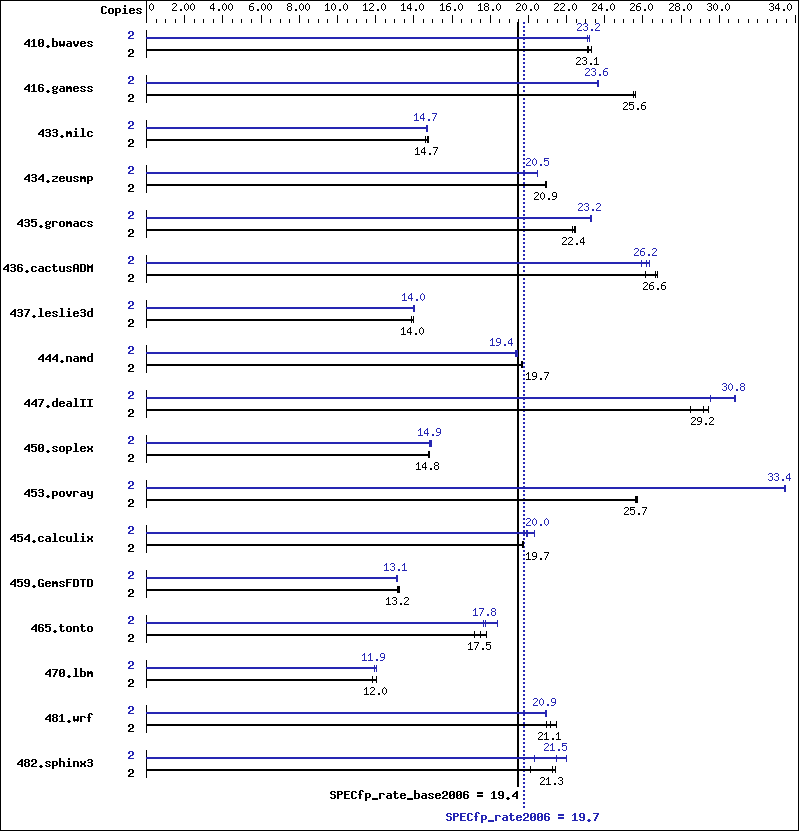

Benchmark results graph
Hardware
CPU Name: Intel Xeon 3040
CPU Characteristics: 1.86 GHz, 4 MB L2, 1066 MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB) PC2-4200E ECC CL4
Disk Subsystem: 1x160 GB SATA2, 7200 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (EM64T)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_cc_c_9.1.045 Build no 20061101
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_fc_c_9.1.040 Build no 20061101
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1176 23.1 1175 23.1 1166 23.3 2 1171 23.2 1172 23.2 1176 23.1
416.gamess 2 1529 25.6 1530 25.6 1536 25.5 2 1658 23.6 1656 23.6 1654 23.7
433.milc 2 1258 14.6 1249 14.7 1245 14.7 2 1249 14.7 1252 14.7 1252 14.7
434.zeusmp 2 872 20.9 869 20.9 869 21.0 2 889 20.5 890 20.5 890 20.5
435.gromacs 2 640 22.3 636 22.4 635 22.5 2 613 23.3 615 23.2 614 23.2
436.cactusADM 2 914 26.2 893 26.8 897 26.6 2 923 25.9 908 26.3 913 26.2
437.leslie3d 2 1353 13.9 1346 14.0 1346 14.0 2 1341 14.0 1338 14.1 1344 14.0
444.namd 2 814 19.7 815 19.7 816 19.7 2 829 19.3 828 19.4 827 19.4
447.dealII 2 778 29.4 784 29.2 803 28.5 2 774 29.6 743 30.8 742 30.8
450.soplex 2 1127 14.8 1128 14.8 1128 14.8 2 1122 14.9 1126 14.8 1118 14.9
453.povray 2 415 25.7 415 25.6 414 25.7 2 319 33.4 318 33.5 318 33.4
454.calculix 2 838 19.7 848 19.5 836 19.7 2 813 20.3 829 19.9 827 20.0
459.GemsFDTD 2 1615 13.1 1607 13.2 1605 13.2 2 1623 13.1 1620 13.1 1617 13.1
465.tonto 2 1146 17.2 1107 17.8 1124 17.5 2 1114 17.7 1108 17.8 1071 18.4
470.lbm 2 2327 11.8 2283 12.0 2286 12.0 2 2301 11.9 2300 11.9 2285 12.0
481.wrf 2 1057 21.1 1066 21.0 1041 21.5 2 1070 20.9 1068 20.9 1070 20.9
482.sphinx3 2 1939 20.1 1819 21.4 1834 21.3 2 1813 21.5 1920 20.3 1771 22.0

Operating System Notes

 Environment stack size set to 'unlimited'
 '/usr/bin/taskset' used to bind processes to CPUs

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel91_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel91_flags.xml.
