SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX150 S5, Intel Pentium D processor 945,
3.40 GHz

CPU2006 license: 22 Test date: May-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Sep-2006
Tested by: Fujitsu Siemens Computers Software Availability: Mar-2007

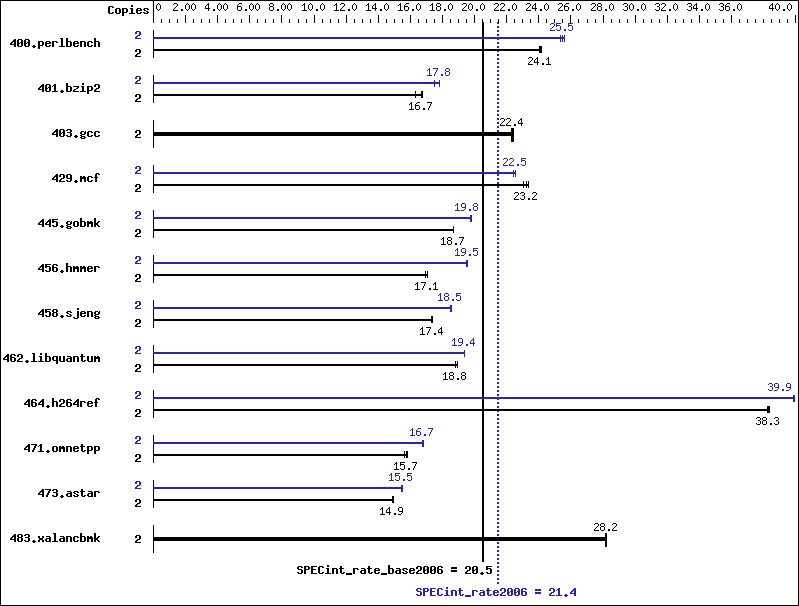

Benchmark results graph
Hardware
CPU Name: Intel Pentium D 945
CPU Characteristics: 800 MHz system bus
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 PC2-4200E, 2 rank, CAS 4-4-4,
with ECC)
Disk Subsystem: SATA( 160GB 7200 rpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Auto Parallel: No
File System: ReiserFS
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Smart Heap Library, Version 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 809 24.1 811 24.1 813 24.0 2 764 25.6 767 25.5 770 25.4
401.bzip2 2 1152 16.8 1155 16.7 1181 16.3 2 1082 17.8 1103 17.5 1084 17.8
403.gcc 2 721 22.3 719 22.4 719 22.4 2 721 22.3 719 22.4 719 22.4
429.mcf 2 793 23.0 781 23.3 785 23.2 2 813 22.4 810 22.5 810 22.5
445.gobmk 2 1123 18.7 1123 18.7 1123 18.7 2 1061 19.8 1061 19.8 1061 19.8
456.hmmer 2 1101 16.9 1092 17.1 1094 17.1 2 956 19.5 956 19.5 954 19.6
458.sjeng 2 1398 17.3 1394 17.4 1392 17.4 2 1305 18.5 1307 18.5 1306 18.5
462.libquantum 2 2192 18.9 2203 18.8 2205 18.8 2 2142 19.3 2141 19.4 2140 19.4
464.h264ref 2 1154 38.4 1157 38.2 1155 38.3 2 1110 39.9 1110 39.9 1108 39.9
471.omnetpp 2 800 15.6 794 15.7 790 15.8 2 747 16.7 743 16.8 746 16.7
473.astar 2 943 14.9 941 14.9 944 14.9 2 907 15.5 911 15.4 908 15.5
483.xalancbmk 2 489 28.2 490 28.1 489 28.2 2 489 28.2 490 28.1 489 28.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 800 MHz

 All binaries were built with 32-bit Intel compiler except:
 401.bzip2, 456.hmmer and 462.libquantum in peak were built with
 64-bit Intel compiler by changing the path for include and library files.


 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8_1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib
456.hmmer:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib
462.libquantum:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8_1/lib -lsmartheap
445.gobmk:  Same as 429.mcf
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 429.mcf
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 429.mcf

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8_1/lib -lsmartheap
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8_1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.
