SPEC® CFP2006 Result

Supermicro

Motherboard PDSMU

SPECfp®2006 = 11.2

SPECfp_base2006 = 10.7

CPU2006 license:	001176	Test date:	Apr-2007
Test sponsor:	Supermicro	Hardware Availability:	Dec-2006
Tested by:	Supermicro	Software Availability:	Mar-2007

Hardware
CPU Name:	Intel Core 2 Duo E4300
CPU Characteristics:	1.8 GHz, 800 MHz bus
CPU MHz:	1800
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	4 GB (2 X 2GB ECC, CL4, 533MHz, UBDIMM)
Disk Subsystem:	250GB SATA, 7200RPM
Other Hardware:	None

Software
Operating System:	Windows Server 2003 Enterprise Edition w/ SP1
Compiler:	Intel C++ Compiler for IA32 version 9.1 Build no 20070322Z Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	SmartHeap Library Version 8.0

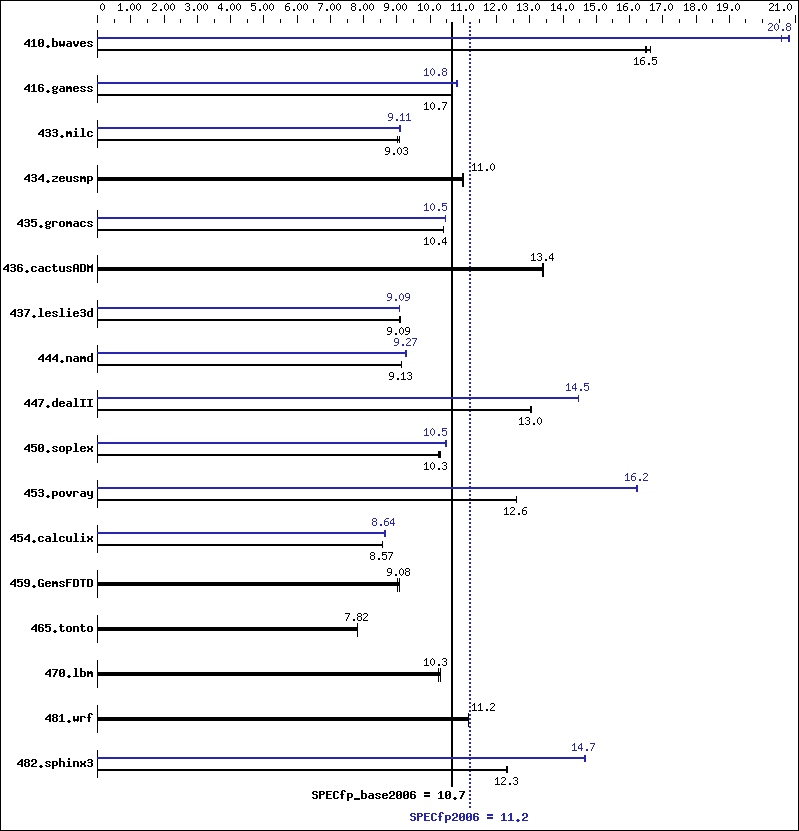

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	818	16.6	823	16.5	824	16.5	653	20.8	660	20.6	654	20.8
416.gamess	1836	10.7	1836	10.7	1835	10.7	1813	10.8	1812	10.8	1812	10.8
433.milc	1012	9.07	1017	9.03	1017	9.02	1006	9.12	1011	9.08	1008	9.11
434.zeusmp	827	11.0	829	11.0	828	11.0	827	11.0	829	11.0	828	11.0
435.gromacs	686	10.4	687	10.4	686	10.4	682	10.5	682	10.5	682	10.5
436.cactusADM	891	13.4	892	13.4	894	13.4	891	13.4	892	13.4	894	13.4
437.leslie3d	1032	9.11	1034	9.09	1034	9.09	1035	9.09	1034	9.09	1035	9.08
444.namd	878	9.13	878	9.13	878	9.13	865	9.27	864	9.28	865	9.27
447.dealII	877	13.0	878	13.0	877	13.0	792	14.5	791	14.5	791	14.5
450.soplex	809	10.3	812	10.3	813	10.3	795	10.5	795	10.5	797	10.5
453.povray	422	12.6	423	12.6	423	12.6	328	16.2	328	16.2	328	16.2
454.calculix	962	8.58	963	8.57	963	8.56	955	8.64	955	8.64	955	8.64
459.GemsFDTD	1178	9.01	1169	9.08	1168	9.09	1178	9.01	1169	9.08	1168	9.09
465.tonto	1257	7.83	1258	7.82	1258	7.82	1257	7.83	1258	7.82	1258	7.82
470.lbm	1339	10.3	1333	10.3	1334	10.3	1339	10.3	1333	10.3	1334	10.3
481.wrf	1001	11.2	1001	11.2	1002	11.1	1001	11.2	1001	11.2	1002	11.1
482.sphinx3	1580	12.3	1582	12.3	1584	12.3	1331	14.6	1328	14.7	1330	14.7

General Notes

 Tested systems can be used with CSE-815TQ-R450U case.
 For a general system, a 420W (minimum) ATX12V power supply [8-pin +12V AND 24-pin is recommended
 to assure system stability].
 Product description located as of
 http://www.supermicro.com/products/motherboard/Xeon3000/3010/PDSMU.cfm
 The system bus runs at 800 MHz.

Base Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Peak Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE
470.lbm:	basepeak = yes
482.sphinx3:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -QxB -Qipo -O3 -Qprec-div- /F950000000 shlw32m.lib -link /FORCE:MULTIPLE

C++ benchmarks:

-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	-QxW -Qparallel -Qipo -O3 -Qprec-div- /F950000000 libguide.lib libguide40.lib -link /FORCE:MULTIPLE
416.gamess:	Same as 410.bwaves
434.zeusmp:	basepeak = yes
437.leslie3d:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE
459.GemsFDTD:	basepeak = yes
465.tonto:	basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:	-QxW -Qparallel -Qipo -O3 -Qprec-div- /F950000000 shlw32m.lib libguide.lib libguide40.lib -link /FORCE:MULTIPLE
436.cactusADM:	basepeak = yes
454.calculix:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-ia32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-ia32-flags.xml.
