SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Ri-2
(Intel Xeon processor 5110)

SPECint®2006 = 11.3

CPU2006 license: 9006 Test date: Jun-2007
Test sponsor: NEC Corporation Hardware Availability: May-2007
Tested by: NEC Corporation Software Availability: Apr-2007

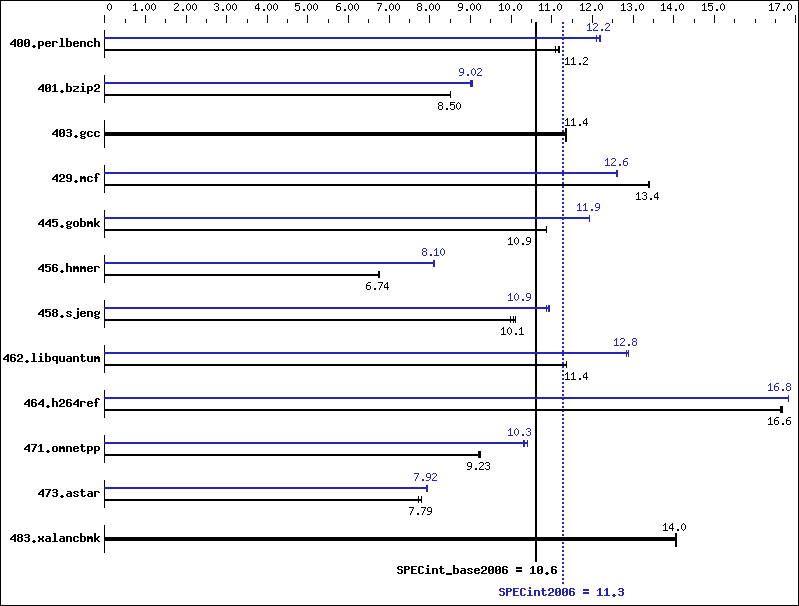

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5110
CPU Characteristics: 1.60 GHz, 4MB L2, 1066MHz bus
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x146.5 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070320, Package-ID:
l_cc_c_9.1.049
Auto Parallel: No
File System: ReiserFS
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 880 11.1  876 11.2  874 11.2  802 12.2  807 12.1  802 12.2
401.bzip2 1133 8.52 1135 8.50 1135 8.50 1065 9.06 1072 9.01 1069 9.02
403.gcc 709 11.4  709 11.4  710 11.3  709 11.4  709 11.4  710 11.3
429.mcf 682 13.4  681 13.4  680 13.4  724 12.6  724 12.6  722 12.6
445.gobmk 965 10.9  964 10.9  964 10.9  880 11.9  881 11.9  880 11.9
456.hmmer 1385 6.74 1382 6.75 1384 6.74 1150 8.11 1152 8.10 1152 8.10
458.sjeng 1196 10.1  1211 9.99 1204 10.1  1114 10.9  1107 10.9  1108 10.9
462.libquantum 1823 11.4  1825 11.4  1825 11.4  1614 12.8  1609 12.9  1614 12.8
464.h264ref 1330 16.6  1327 16.7  1329 16.6  1315 16.8  1315 16.8  1316 16.8
471.omnetpp 677 9.23 677 9.24 680 9.19 606 10.3  601 10.4  605 10.3
473.astar 909 7.72 900 7.80 901 7.79 887 7.91 884 7.94 886 7.92
483.xalancbmk 491 14.0  491 14.0  491 14.1  491 14.0  491 14.0  491 14.1

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

General Notes


 The system bus runs at 1066 MHz
 All binaries were built with 32-bit Intel compiler except:
 401.bzip2, 456.hmmer and 462.libquantum in peak were built with
 64-bit Intel compiler by changing the path for include and library files.

 The Express5800/120Rg-1 and the Express5800/120Ri-2 models are
 electronically equivalent.
 The results have been measured on a Express5800/120Ri-2 model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8.1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/9.1.049/bin/icc   -I/opt/intel/cce/9.1.049/include   -L/opt/intel/cce/9.1.049/lib
456.hmmer:  /opt/intel/cce/9.1.049/bin/icc   -I/opt/intel/cce/9.1.049/include   -L/opt/intel/cce/9.1.049/lib
462.libquantum:  /opt/intel/cce/9.1.049/bin/icc   -I/opt/intel/cce/9.1.049/include   -L/opt/intel/cce/9.1.049/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8.1/lib -lsmartheap
445.gobmk:  Same as 429.mcf
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 429.mcf
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 429.mcf

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-linux-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-linux-flags.20090714.xml.
