SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Ri-2
(Intel Xeon processor 5160)

SPECint®2006 = 17.9

CPU2006 license: 9006 Test date: May-2007
Test sponsor: NEC Corporation Hardware Availability: May-2007
Tested by: NEC Corporation Software Availability: Apr-2007

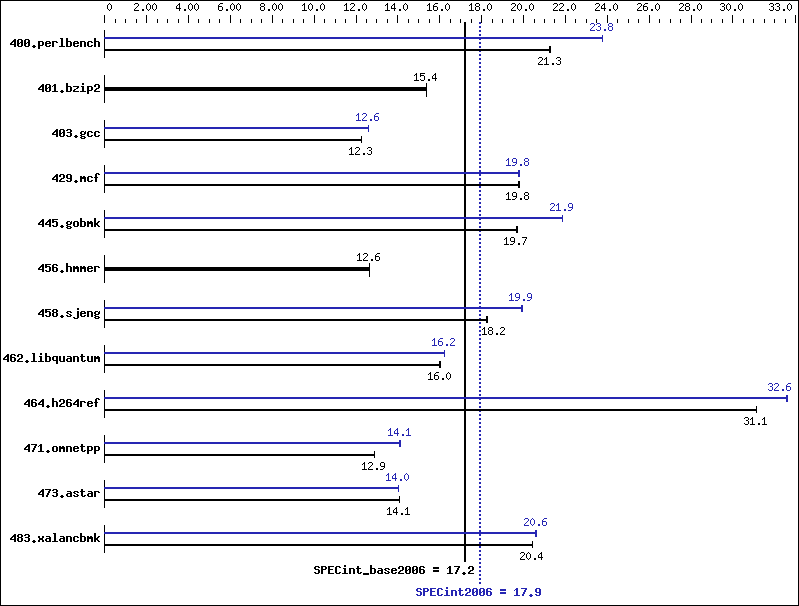

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 3.00 GHz, 4MB L2, 1333MHz bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1 GB DDR2 5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x73.2 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: Windows Server 2003, Standard x64 Edition
Compiler: Intel C++ Compiler for 32bit version 9.1
Build 20070109, Package-ID W_CC_C_9.1.034
Microsoft Visual Studio 2005 (libr. & linker)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 459 21.3 460 21.2 459 21.3 411 23.8 411 23.8 411 23.8
401.bzip2 628 15.4 628 15.4 629 15.4 628 15.4 628 15.4 629 15.4
403.gcc 657 12.2 657 12.3 657 12.3 640 12.6 639 12.6 639 12.6
429.mcf 462 19.8 462 19.8 461 19.8 462 19.8 461 19.8 462 19.8
445.gobmk 533 19.7 533 19.7 533 19.7 480 21.9 479 21.9 480 21.9
456.hmmer 739 12.6 739 12.6 739 12.6 739 12.6 739 12.6 739 12.6
458.sjeng 663 18.3 664 18.2 664 18.2 608 19.9 608 19.9 606 20.0
462.libquantum 1293 16.0 1293 16.0 1294 16.0 1279 16.2 1278 16.2 1278 16.2
464.h264ref 711 31.1 711 31.1 711 31.1 679 32.6 680 32.5 679 32.6
471.omnetpp 485 12.9 485 12.9 485 12.9 442 14.1 442 14.1 443 14.1
473.astar 498 14.1 498 14.1 499 14.1 501 14.0 500 14.0 501 14.0
483.xalancbmk 337 20.4 338 20.4 338 20.4 335 20.6 335 20.6 335 20.6

General Notes

 The Express5800/120Rg-1 and the Express5800/120Ri-2 models are
 electronically equivalent.
 The results have been measured on a Express5800/120Ri-2 model.

Base Compiler Invocation

C benchmarks:

 icl   -Qc99

C++ benchmarks:

 icl

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -fast   -F512000000   shlW32M.lib    -link -FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx-features   -F512000000   shlW32M.lib    -link -FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qc99

C++ benchmarks:

 icl

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F512000000   shlW32M.lib    -link -FORCE:MULTIPLE
401.bzip2:  basepeak = yes
403.gcc:  Same as 400.perlbench
429.mcf:  ONESTEP   -fast   -F512000000   shlW32M.lib    -link -FORCE:MULTIPLE
445.gobmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F512000000   shlW32M.lib    -link -FORCE:MULTIPLE
456.hmmer:  basepeak = yes
458.sjeng:  Same as 400.perlbench
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

471.omnetpp:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F512000000   shlW32M.lib    -link -FORCE:MULTIPLE
473.astar:  Same as 471.omnetpp
483.xalancbmk:  ONESTEP   -fast   -Qcxx-features   -F512000000   shlW32M.lib    -link -FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-cpu2006-ic91-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-cpu2006-ic91-flags.xml.
