SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Ri-2
(Intel Xeon processor X5355)

SPECint®2006 = 18.9

CPU2006 license: 9006 Test date: Jun-2007
Test sponsor: NEC Corporation Hardware Availability: Jan-2007
Tested by: NEC Corporation Software Availability: Jun-2007

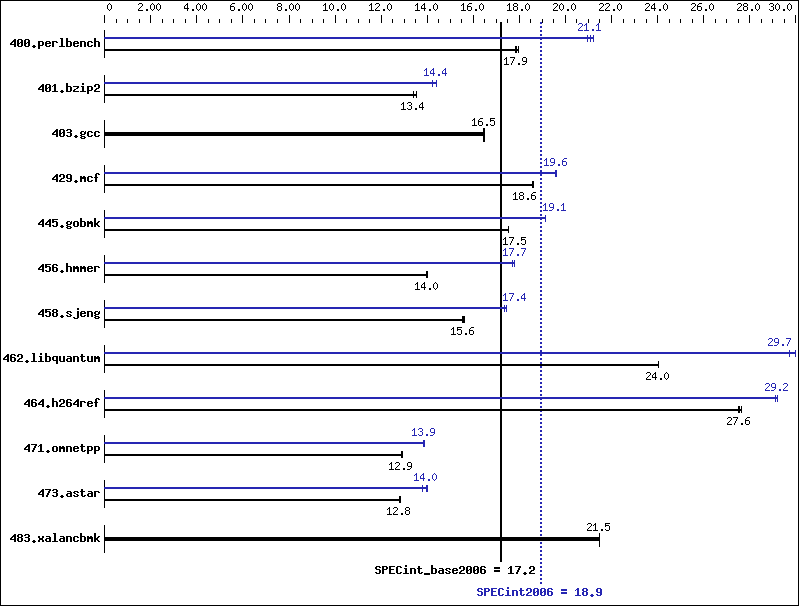

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: 2.66 GHz, 2x4 MB L2 shared, 1333 MHz bus
CPU MHz: 2666
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x73.2 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 10.0 - Build 20070426 Package ID:
l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap library 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 544 17.9 547 17.9 547 17.9 463 21.1 460 21.2 467 20.9
401.bzip2 719 13.4 714 13.5 719 13.4 670 14.4 679 14.2 671 14.4
403.gcc 489 16.5 489 16.4 489 16.5 489 16.5 489 16.4 489 16.5
429.mcf 490 18.6 491 18.6 490 18.6 465 19.6 466 19.6 465 19.6
445.gobmk 598 17.5 599 17.5 598 17.5 548 19.1 548 19.1 548 19.1
456.hmmer 667 14.0 667 14.0 667 14.0 527 17.7 527 17.7 525 17.8
458.sjeng 778 15.6 778 15.6 774 15.6 698 17.3 695 17.4 694 17.4
462.libquantum 863 24.0 862 24.0 861 24.1 697 29.7 697 29.7 691 30.0
464.h264ref 800 27.6 804 27.5 803 27.6 758 29.2 758 29.2 760 29.1
471.omnetpp 486 12.9 484 12.9 484 12.9 450 13.9 451 13.9 450 13.9
473.astar 549 12.8 548 12.8 546 12.9 509 13.8 502 14.0 500 14.0
483.xalancbmk 321 21.5 321 21.5 321 21.5 321 21.5 321 21.5 321 21.5

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

General Notes


All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode

 The Express5800/120Rg-1(Intel Xeon processor X5355) and
 the Express5800/120Ri-2(Intel Xeon processor X5355) models are electronically equivalent.
 The results have been measured on a Express5800/120Ri-2(Intel Xeon processor X5355) model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include   -prof-gen(pass 1)   -prof-use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include   -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic10-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic10-linux-flags.xml.
