| CPU2006 license: | 22 | Test date: | Jun-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Aug-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Mar-2007 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 2222 |
| CPU Characteristics: | 2222 |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 PC2-5300P, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | Seagate ST336754SS (SAS, 36GB, 15000rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 for AMD64/EM64T |
| Compiler: | QLogic PathScale Compiler Suite, - Release 3.0 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user run level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

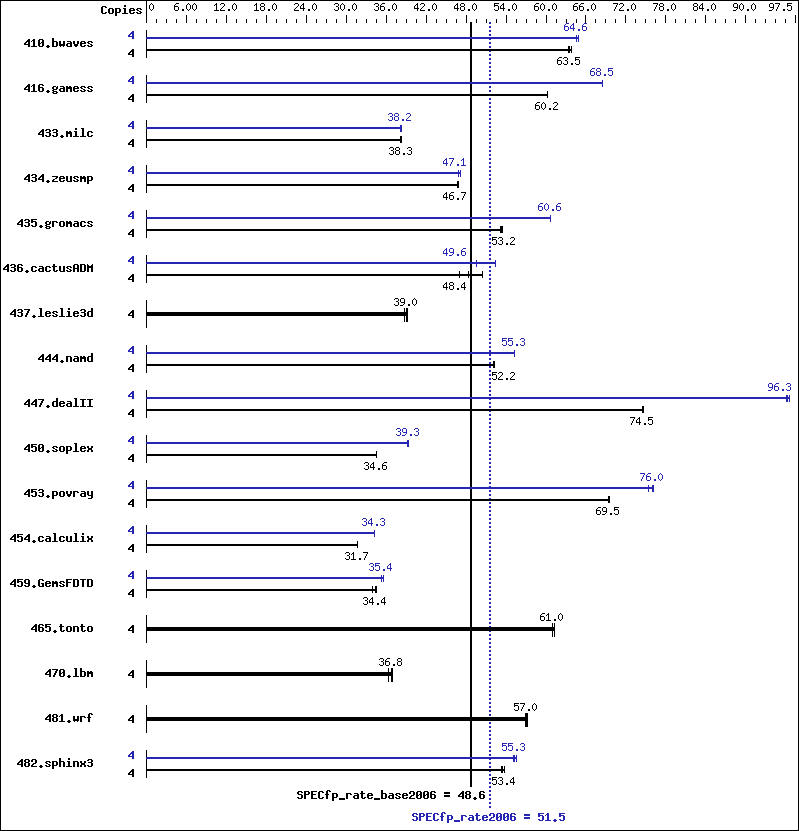

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 851 | 63.9 | 856 | 63.5 | 858 | 63.3 | 4 | 842 | 64.5 | 837 | 64.9 | 841 | 64.6 |
| 416.gamess | 4 | 1300 | 60.2 | 1301 | 60.2 | 1299 | 60.3 | 4 | 1143 | 68.5 | 1144 | 68.5 | 1144 | 68.5 |
| 433.milc | 4 | 962 | 38.2 | 960 | 38.3 | 960 | 38.3 | 4 | 961 | 38.2 | 961 | 38.2 | 960 | 38.2 |
| 434.zeusmp | 4 | 779 | 46.7 | 780 | 46.7 | 776 | 46.9 | 4 | 776 | 46.9 | 773 | 47.1 | 772 | 47.1 |
| 435.gromacs | 4 | 537 | 53.2 | 536 | 53.2 | 534 | 53.5 | 4 | 470 | 60.7 | 471 | 60.6 | 471 | 60.6 |
| 436.cactusADM | 4 | 988 | 48.4 | 947 | 50.5 | 1018 | 47.0 | 4 | 911 | 52.5 | 963 | 49.6 | 965 | 49.6 |
| 437.leslie3d | 4 | 961 | 39.1 | 964 | 39.0 | 970 | 38.8 | 4 | 961 | 39.1 | 964 | 39.0 | 970 | 38.8 |
| 444.namd | 4 | 615 | 52.2 | 616 | 52.1 | 615 | 52.2 | 4 | 580 | 55.3 | 580 | 55.3 | 580 | 55.3 |
| 447.dealII | 4 | 614 | 74.6 | 615 | 74.4 | 614 | 74.5 | 4 | 474 | 96.5 | 476 | 96.2 | 475 | 96.3 |
| 450.soplex | 4 | 965 | 34.6 | 965 | 34.6 | 966 | 34.5 | 4 | 848 | 39.4 | 850 | 39.3 | 848 | 39.3 |
| 453.povray | 4 | 306 | 69.5 | 307 | 69.4 | 306 | 69.6 | 4 | 279 | 76.2 | 282 | 75.4 | 280 | 76.0 |
| 454.calculix | 4 | 1041 | 31.7 | 1043 | 31.6 | 1039 | 31.7 | 4 | 965 | 34.2 | 963 | 34.3 | 963 | 34.3 |
| 459.GemsFDTD | 4 | 1233 | 34.4 | 1252 | 33.9 | 1228 | 34.6 | 4 | 1193 | 35.6 | 1203 | 35.3 | 1200 | 35.4 |
| 465.tonto | 4 | 643 | 61.2 | 645 | 61.0 | 645 | 61.0 | 4 | 643 | 61.2 | 645 | 61.0 | 645 | 61.0 |
| 470.lbm | 4 | 1511 | 36.4 | 1495 | 36.8 | 1489 | 36.9 | 4 | 1511 | 36.4 | 1495 | 36.8 | 1489 | 36.9 |
| 481.wrf | 4 | 780 | 57.3 | 783 | 57.0 | 785 | 56.9 | 4 | 780 | 57.3 | 783 | 57.0 | 785 | 56.9 |
| 482.sphinx3 | 4 | 1450 | 53.7 | 1460 | 53.4 | 1461 | 53.3 | 4 | 1415 | 55.1 | 1410 | 55.3 | 1405 | 55.5 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'numactl' and 'taskset' have been used to bind processes to CPUs
General Notes
BIOS settings: Node Interleave = disabled For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Compiler Invocation
C benchmarks:
| pathcc |
C++ benchmarks:
| pathCC |
Fortran benchmarks:
| pathf95 |
Benchmarks using both Fortran and C:
| pathcc pathf95 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 |
| 436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -Ofast |
C++ benchmarks:
| -Ofast |
Fortran benchmarks:
| -Ofast -OPT:malloc_alg=1 |
Benchmarks using both Fortran and C:
| -Ofast -OPT:malloc_alg=1 |
Base Other Flags
C benchmarks:
| -IPA:max_jobs=4 |
C++ benchmarks:
| -IPA:max_jobs=4 |
Fortran benchmarks:
| -IPA:max_jobs=4 |
Benchmarks using both Fortran and C:
| -IPA:max_jobs=4 |
Peak Compiler Invocation
C benchmarks:
| pathcc |
C++ benchmarks:
| pathCC |
Fortran benchmarks:
| pathf95 |
Benchmarks using both Fortran and C:
| pathcc pathf95 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 |
| 436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -Ofast -CG:cflow=off -LNO:prefetch=1 -OPT:malloc_alg=1 |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:Ofast -WOPT:aggstr=0 -m32 |
C++ benchmarks:
| 444.namd: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-exceptions |
| 447.dealII: | -Ofast -static -INLINE:aggressive=on -OPT:malloc_alg=1 -m32 -fno-exceptions |
| 450.soplex: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:IEEE_arith=3 -CG:load_exe=0 -CG:movnti=1 -LNO:minvariant=off -LNO:prefetch=1 -fno-exceptions |
| 453.povray: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-fast-math |
Fortran benchmarks:
| 410.bwaves: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:Ofast -OPT:IEEE_arith=3 -LNO:blocking=off -LNO:ignore_feedback=off |
| 416.gamess: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 |
| 434.zeusmp: | -Ofast -CG:local_fwd_sched=on -LNO:blocking=off -LNO:interchange=off -LNO:fu=10 -LNO:full_unroll_outer=on |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -Ofast -LNO:fission=2 -LNO:prefetch=0 |
| 465.tonto: | basepeak = yes |
Benchmarks using both Fortran and C:
| 435.gromacs: | -O3 -OPT:rsqrt=2 -OPT:ro=3 |
| 436.cactusADM: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=3 -LNO:prefetch_ahead=5 -LNO:ou_prod_max=10 -LNO:full_unroll=5 -ipa |
| 454.calculix: | -Ofast -LNO:simd=0 -WOPT:mem_opnds=on |
| 481.wrf: | basepeak = yes |
