SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Acer Incorporated

Acer Altos R520 (Intel Xeon E5345)

CPU2006 license: 97 Test date: Jun-2007
Test sponsor: Acer Incorporated Hardware Availability: Nov-2006
Tested by: Acer Incorporated Software Availability: Jun-2007

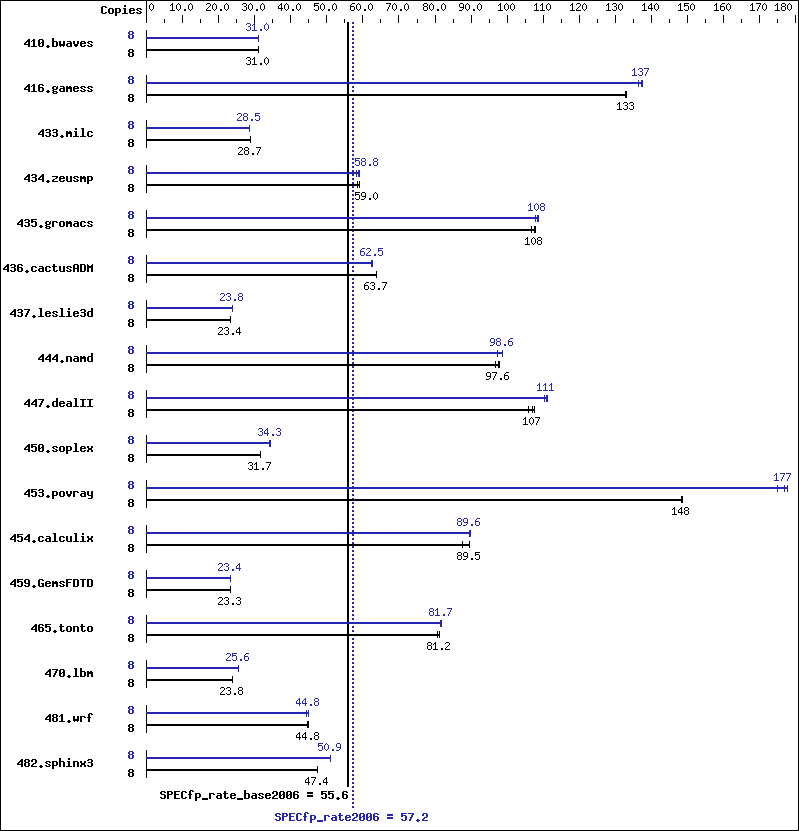

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5345
CPU Characteristics: 1333MHz system bus
CPU MHz: 2330
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2048MB ECC FB-DIMM DDR2-667 CL5-5-5)
Disk Subsystem: 1 x 73GB 10000RPM SAS HDD
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 EM64T (kernel
2.6.16.21-0.8-smp)
Compiler: Intel C++ Compiler for Linux32 version 10.0
Build 20070426 Package ID: l_cc_p_10.0.023
Intel Fortran Compiler for Linux32 version 10.0
Build 20070426 Package ID: l_fc_p_10.0.023
Auto Parallel: No
File System: ReiserFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3512 31.0 3509 31.0 3510 31.0 8 3510 31.0 3509 31.0 3509 31.0
416.gamess 8 1177 133   1178 133   1179 133   8 1142 137   1148 136   1139 138
433.milc 8 2559 28.7 2557 28.7 2558 28.7 8 2582 28.4 2581 28.5 2580 28.5
434.zeusmp 8 1235 59.0 1244 58.5 1233 59.0 8 1253 58.1 1234 59.0 1238 58.8
435.gromacs 8 535 107   530 108   530 108   8 526 109   527 108   530 108
436.cactusADM 8 1500 63.7 1498 63.8 1501 63.7 8 1528 62.5 1531 62.4 1529 62.5
437.leslie3d 8 3244 23.2 3211 23.4 3211 23.4 8 3152 23.9 3154 23.8 3157 23.8
444.namd 8 658 97.6 664 96.7 656 97.9 8 659 97.3 650 98.7 650 98.6
447.dealII 8 864 106   856 107   851 108   8 826 111   830 110   824 111
450.soplex 8 2106 31.7 2110 31.6 2108 31.7 8 1955 34.1 1941 34.4 1945 34.3
453.povray 8 287 148   287 148   286 149   8 239 178   243 175   241 177
454.calculix 8 737 89.6 754 87.5 737 89.5 8 735 89.8 737 89.5 736 89.6
459.GemsFDTD 8 3646 23.3 3647 23.3 3645 23.3 8 3637 23.3 3632 23.4 3631 23.4
465.tonto 8 970 81.2 970 81.2 975 80.7 8 966 81.5 961 81.9 964 81.7
470.lbm 8 4617 23.8 4614 23.8 4622 23.8 8 4298 25.6 4297 25.6 4297 25.6
481.wrf 8 1994 44.8 1997 44.7 1994 44.8 8 1994 44.8 2008 44.5 1993 44.8
482.sphinx3 8 3292 47.4 3292 47.4 3296 47.3 8 3063 50.9 3063 50.9 3064 50.9

General Notes

 All programs compiled with the 64-bit compiler except
 437.leslie3d, 450.soplex, 470.lbm and 482.sphinx3, at peak,
 compiled with the 32-bit compiler
 This result was measured on the Acer Altos R520
 The Altos R720 and Altos R520 are electronically equivalent.

 taskset was used to bind copies to cores

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -auto-ilp32

C++ benchmarks:

 -fast   -auto-ilp32

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -auto-ilp32   -nofor_main(*)
436.cactusADM:  Same as 435.gromacs
454.calculix:  Same as 435.gromacs
481.wrf:  -fast   -auto-ilp32

(*) Indicates an optimization flag that was found in a portability variable.

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.0.023/bin/icc   -L/opt/intel/cc/10.0.023/lib   -I/opt/intel/cc/10.0.023/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.0.023/bin/icpc   -L/opt/intel/cc/10.0.023/lib   -I/opt/intel/cc/10.0.023/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.0.023/bin/ifort   -L/opt/intel/fc/10.0.023/lib   -I/opt/intel/fc/10.0.023/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -ipo   -O3   -no-prec-div
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  Same as 434.zeusmp
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -auto-ilp32   -nofor_main(*)
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -auto-ilp32   -nofor_main(*)
454.calculix:  -fast   -auto-ilp32   -nofor_main(*)
481.wrf:  -fast   -auto-ilp32

(*) Indicates an optimization flag that was found in a portability variable.


The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.16.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.16.xml.
