SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Tyan (Test Sponsor: Advanced Micro Devices)

Thunder h2000M (S3992) AMD Opteron 2224 SE

CPU2006 license: 49 Test date: Jul-2007
Test sponsor: Advanced Micro Devices Hardware Availability: Aug-2007
Tested by: Advanced Micro Devices Software Availability: Oct-2007

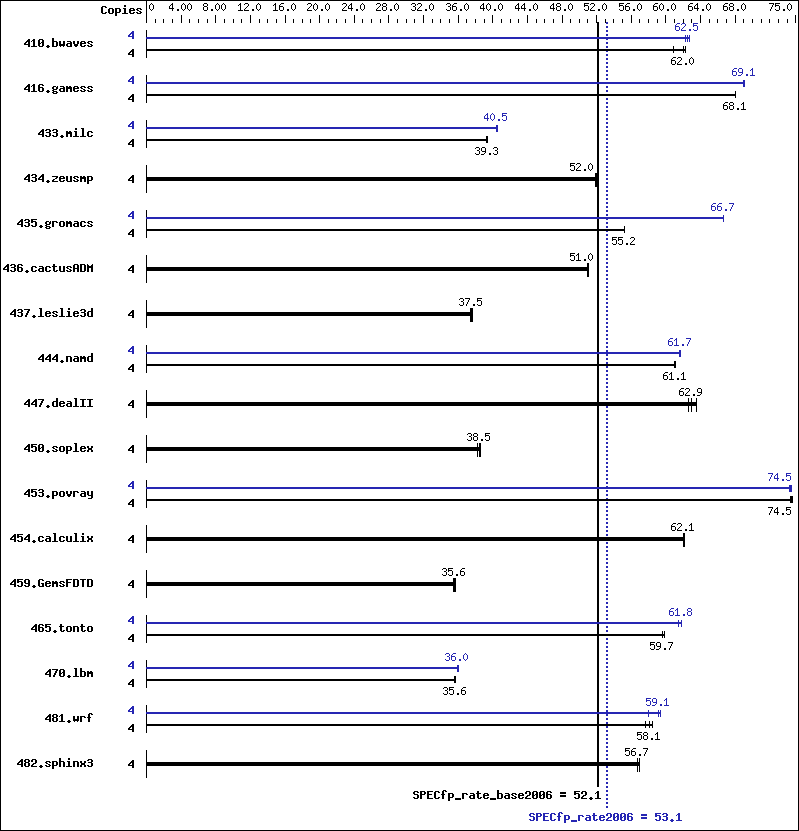

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2224 SE
CPU Characteristics:
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1GB, DDR2-667 CL4 ECC Reg Dual Rank)
Disk Subsystem: SATA, 80GB
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 64-bit kernel
Compiler: The Portland Group (PGI)
PGI pgf90 7.1-0 Fortran Compiler
PGI pgcc 7.1-0 C Compiler
PGI pgCC 7.1-0 C++ Compiler
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 893 60.9 877 62.0 873 62.2 4 866 62.8 874 62.2 870 62.5
416.gamess 4 1150 68.1 1151 68.0 1150 68.1 4 1134 69.1 1135 69.0 1134 69.1
433.milc 4 933 39.3 932 39.4 934 39.3 4 907 40.5 907 40.5 908 40.4
434.zeusmp 4 701 51.9 700 52.0 697 52.2 4 701 51.9 700 52.0 697 52.2
435.gromacs 4 517 55.3 517 55.2 517 55.2 4 429 66.6 428 66.7 428 66.7
436.cactusADM 4 936 51.1 937 51.0 937 51.0 4 936 51.1 937 51.0 937 51.0
437.leslie3d 4 997 37.7 1002 37.5 1004 37.4 4 997 37.7 1002 37.5 1004 37.4
444.namd 4 525 61.1 526 61.0 525 61.1 4 520 61.7 521 61.6 520 61.7
447.dealII 4 731 62.6 727 62.9 721 63.5 4 731 62.6 727 62.9 721 63.5
450.soplex 4 873 38.2 865 38.6 867 38.5 4 873 38.2 865 38.6 867 38.5
453.povray 4 286 74.4 286 74.5 285 74.6 4 286 74.5 286 74.3 286 74.5
454.calculix 4 532 62.1 532 62.0 531 62.1 4 532 62.1 532 62.0 531 62.1
459.GemsFDTD 4 1198 35.4 1193 35.6 1189 35.7 4 1198 35.4 1193 35.6 1189 35.7
465.tonto 4 660 59.6 658 59.8 660 59.7 4 637 61.8 637 61.8 640 61.5
470.lbm 4 1546 35.6 1542 35.6 1537 35.7 4 1528 36.0 1526 36.0 1528 36.0
481.wrf 4 764 58.5 770 58.1 774 57.7 4 753 59.3 770 58.0 756 59.1
482.sphinx3 4 1370 56.9 1374 56.7 1374 56.7 4 1370 56.9 1374 56.7 1374 56.7

Operating System Notes

 Environment stack size set to 'unlimited'
 'numactl' was used to bind copies to the cores
 Set vm/nr_hugepages=512 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Component Notes

 SUT requires a Tyan Thunder h2000M motherboard (BIOS rev 2.00), a Seagate
 Barracuda 7200.10 SATA drive, a SSI EEB 3.51 specification compliant
 form-factor case, and a Delta Electronics 500 watt DPS-500GB power supply.

General Notes


Submitted_by: "Raddatz, Dave" <Dave.Raddatz@amd.com>
Submitted: Tue Aug  7 13:14:49 2007
Submission: cpu2006-20070723-01516.sub

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   --zc_eh   -tp k8-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mipa=noarg(pass 2)   -Mpfo(pass 2)   -fast   -O4   -Mdse   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi
470.lbm:  -fast   -Mfprelaxed   -Msmartalloc=huge:8   -Mipa=fast   -Mipa=noarg   -tp k8-64   -Bstatic_pgi
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fast   -O4   -Mfprelaxed   -Msmartalloc=huge:32   --zc_eh   -tp k8-64   -Bstatic_pgi
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -fast   -Mfprelaxed   -Msmartalloc=huge:32   -Mipa=fast   -Mipa=inline   --zc_eh   -tp k8-64   -Bstatic_pgi

Fortran benchmarks:

410.bwaves:  -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc   -tp k8-64   -Bstatic_pgi
416.gamess:  -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mvect=noaltcode   -Msmartalloc=huge:64   -tp k8-64   -Bstatic_pgi
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -fast   -Mfprelaxed   -Msmartalloc=huge:128   -Mipa=fast   -Mipa=inline   -Mvect=noaltcode   -tp k8-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -O4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:16   -tp k8-64   -Mfpapprox=rsqrt   -Bstatic_pgi
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  -fast   -Mfprelaxed   -Msmartalloc=huge:32   -Mvect=noaltcode   -tp k8-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi710_flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/pgi710_flags.20090714.00.xml.
