SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

ASUS Computer International (Test Sponsor: Intel Corporation)

ASUS P5K3 motherboard (Intel Core 2 Quad Q6600)

SPECfp®2006 = 16.0

CPU2006 license: 13 Test date: Jul-2007
Test sponsor: Intel Corporation Hardware Availability: Jul-2007
Tested by: Intel Corporation Software Availability: Aug-2006

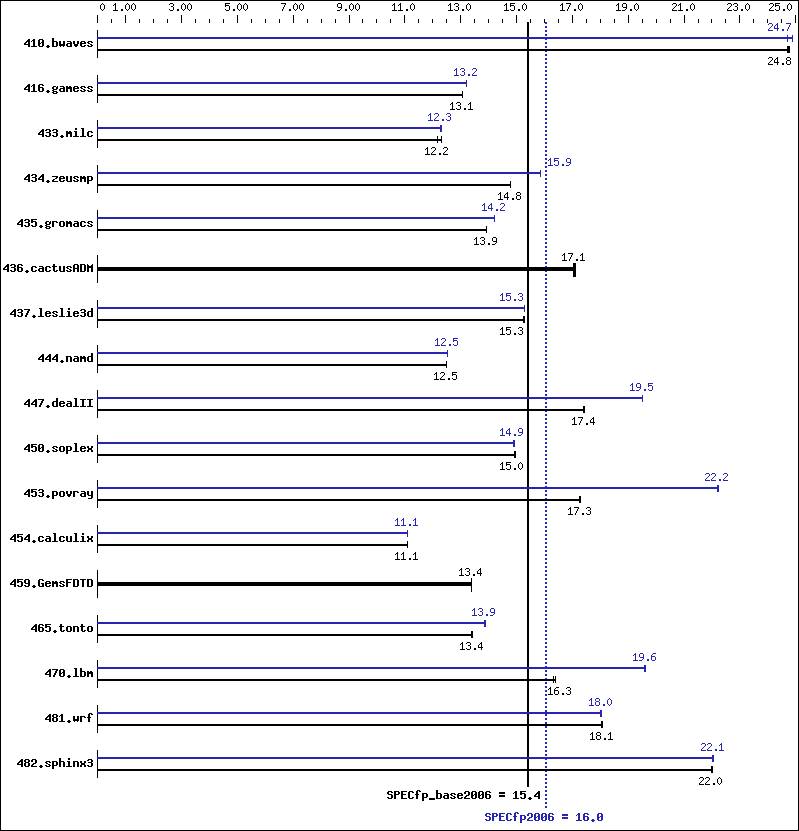

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Quad Q6600
CPU Characteristics: 2.40 GHz, 1066 MHz bus
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 2 GB (2x1GB ELPIDA PC3-8500U-7-00-BP DDR3-1066
7-7-7-20)
Disk Subsystem: Seagate ST3320620AS 320GB Barracuda 7200.10 NCQ
SATA II
Other Hardware: None
Software
Operating System: Windows Vista32 Ultimate
Compiler: Intel C++ Compiler for IA32 version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Fortran Compiler for IA32 version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 548 24.8 550 24.7 549 24.8 546 24.9 550 24.7 550 24.7
416.gamess 1500 13.1 1500 13.1 1500 13.1 1484 13.2 1483 13.2 1483 13.2
433.milc 746 12.3 754 12.2 754 12.2 747 12.3 747 12.3 747 12.3
434.zeusmp 615 14.8 615 14.8 616 14.8 573 15.9 573 15.9 573 15.9
435.gromacs 513 13.9 513 13.9 513 13.9 503 14.2 503 14.2 503 14.2
436.cactusADM 699 17.1 700 17.1 701 17.1 699 17.1 700 17.1 701 17.1
437.leslie3d 616 15.2 616 15.3 616 15.3 615 15.3 615 15.3 615 15.3
444.namd 642 12.5 642 12.5 642 12.5 640 12.5 640 12.5 640 12.5
447.dealII 656 17.4 657 17.4 657 17.4 587 19.5 587 19.5 587 19.5
450.soplex 558 15.0 558 15.0 558 14.9 559 14.9 560 14.9 559 14.9
453.povray 308 17.3 308 17.3 308 17.3 240 22.2 240 22.2 239 22.2
454.calculix 744 11.1 744 11.1 744 11.1 744 11.1 744 11.1 745 11.1
459.GemsFDTD 793 13.4 793 13.4 793 13.4 793 13.4 793 13.4 793 13.4
465.tonto 733 13.4 734 13.4 733 13.4 709 13.9 711 13.8 709 13.9
470.lbm 841 16.3 841 16.3 839 16.4 701 19.6 701 19.6 701 19.6
481.wrf 618 18.1 618 18.1 618 18.1 619 18.0 619 18.1 620 18.0
482.sphinx3 886 22.0 886 22.0 885 22.0 883 22.1 885 22.0 883 22.1

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 7/2007:
 http://usa.asus.com/products.aspx?l1=3&l2=11&l3=534&l4=0&model=1645&modelmenu=1
 The system bus runs at 1333 MHz
 System has a discrete gfx card - Asus EN8800GTX/HTDP/768M w/ nVidia 8800GTX
 Binaries were built on Windows XP Professional SP2 with 4GB of RAM and /3GB boot switch

Base Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000

Benchmarks using both Fortran and C:

 -fast   /F950000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Oa   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   /F950000000
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec_div-   -Qunroll0   -Qscalar-rep-   /F950000000
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   /F950000000
436.cactusADM:  basepeak = yes
454.calculix:  -fast   /F950000000
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.xml.
