SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3655 (AMD Opteron 2212)

SPECint®2006 = 10.7

CPU2006 license: 11 Test date: Jul-2007
Test sponsor: IBM Corporation Hardware Availability: Oct-2006
Tested by: IBM Corporation Software Availability: Mar-2007

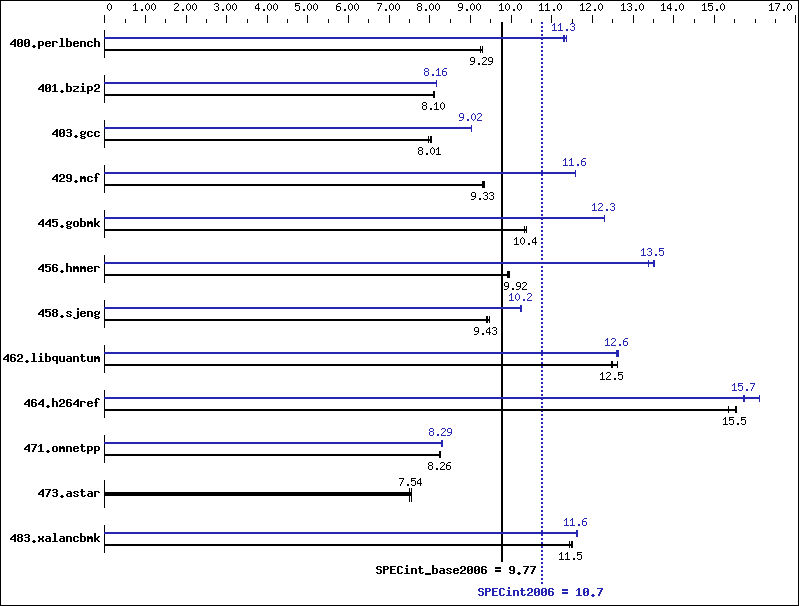

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2212
CPU Characteristics:
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB DDR2-5300 ECC)
Disk Subsystem: 1 x 36 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler: QLogic PathScale
Compiler Suite, Release 3.0
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap 8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 1056 9.25 1050 9.31 1052 9.29 863 11.3  860 11.4  866 11.3
401.bzip2 1190 8.11 1191 8.10 1192 8.09 1183 8.16 1182 8.16 1182 8.16
403.gcc 1006 8.01 1002 8.03 1010 7.97 892 9.02 893 9.01 892 9.02
429.mcf 975 9.35 978 9.33 981 9.30 788 11.6  788 11.6  787 11.6
445.gobmk 1015 10.3  1011 10.4  1011 10.4  853 12.3  853 12.3  853 12.3
456.hmmer 941 9.91 938 9.95 940 9.92 691 13.5  697 13.4  690 13.5
458.sjeng 1279 9.46 1287 9.40 1284 9.43 1181 10.2  1182 10.2  1180 10.3
462.libquantum 1657 12.5  1661 12.5  1644 12.6  1638 12.6  1643 12.6  1645 12.6
464.h264ref 1424 15.5  1427 15.5  1442 15.3  1406 15.7  1373 16.1  1408 15.7
471.omnetpp 756 8.26 757 8.26 759 8.24 754 8.29 752 8.32 754 8.29
473.astar 931 7.54 931 7.54 938 7.49 931 7.54 931 7.54 938 7.49
483.xalancbmk 600 11.5  601 11.5  603 11.4  595 11.6  594 11.6  594 11.6

General Notes

 taskset utility used to bind CPU(s) to processes

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast   -OPT:malloc_alg=1

C++ benchmarks:

 -Ofast   -m32   -L/tools/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:opt=0
401.bzip2:  -O3   -LNO:ou_prod_max=10   -OPT:Ofast   -OPT:alias=disjoint
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -m32   -O3   -ipa   -L/tools/SmartHeap_8.1/lib -lsmartheap
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -LNO:simd=0   -LNO:minvariant=off   -WOPT:retype_expr=on
456.hmmer:  -O2   -OPT:alias=disjoint   -OPT:malloc_alg=1   -CG:cflow=0
458.sjeng:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=50000   -IPA:pu_reorder=2
462.libquantum:  -O3   -ipa   -CG:local_fwd_sched=on   -IPA:space=1000
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0

C++ benchmarks:

471.omnetpp:  -Ofast   -CG:gcm=off   -m32   -L/tools/SmartHeap_8.1/lib -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  -Ofast   -m32   -OPT:unroll_times_max=8   -L/tools/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.xml.
