SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter LS21 (AMD Opteron 2220)

CPU2006 license: 11 Test date: Mar-2007
Test sponsor: IBM Corporation Hardware Availability: Feb-2007
Tested by: IBM Corporation Software Availability: Mar-2007

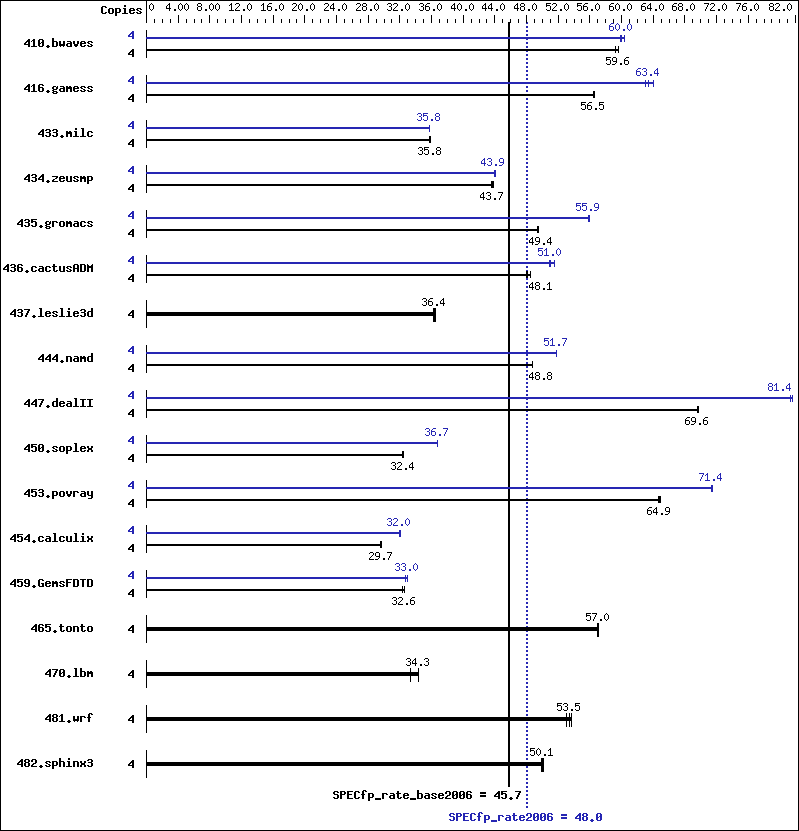

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2220
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB DDR2-5300 ECC)
Disk Subsystem: 1 x 36 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler: QLogic PathScale
Compiler Suite, Release 3.0
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 911 59.7 912 59.6 918 59.2 4 906 60.0 901 60.3 909 59.8
416.gamess 4 1388 56.4 1387 56.5 1385 56.6 4 1236 63.4 1224 64.0 1242 63.1
433.milc 4 1025 35.8 1026 35.8 1024 35.8 4 1028 35.7 1026 35.8 1027 35.8
434.zeusmp 4 830 43.8 835 43.6 833 43.7 4 826 44.1 828 43.9 829 43.9
435.gromacs 4 579 49.4 578 49.4 577 49.5 4 511 55.9 511 55.9 510 56.0
436.cactusADM 4 995 48.1 987 48.4 995 48.0 4 938 50.9 928 51.5 938 51.0
437.leslie3d 4 1033 36.4 1036 36.3 1032 36.4 4 1033 36.4 1036 36.3 1032 36.4
444.namd 4 658 48.8 658 48.8 658 48.8 4 620 51.7 620 51.7 620 51.7
447.dealII 4 657 69.7 657 69.6 657 69.6 4 561 81.6 562 81.4 562 81.4
450.soplex 4 1032 32.3 1028 32.4 1028 32.4 4 907 36.8 909 36.7 909 36.7
453.povray 4 329 64.7 328 64.9 327 65.0 4 298 71.4 298 71.4 298 71.3
454.calculix 4 1112 29.7 1113 29.7 1115 29.6 4 1030 32.0 1031 32.0 1031 32.0
459.GemsFDTD 4 1314 32.3 1301 32.6 1301 32.6 4 1295 32.8 1286 33.0 1287 33.0
465.tonto 4 690 57.0 689 57.1 690 57.0 4 690 57.0 689 57.1 690 57.0
470.lbm 4 1647 33.4 1601 34.3 1600 34.4 4 1647 33.4 1601 34.3 1600 34.4
481.wrf 4 835 53.5 831 53.7 842 53.1 4 835 53.5 831 53.7 842 53.1
482.sphinx3 4 1557 50.1 1564 49.8 1554 50.2 4 1557 50.1 1564 49.8 1554 50.2

General Notes

 taskset utility used to bind CPU(s) to processes
DSPEC_CPU_TABLE_WORKAROUND was used for portability when compiling 447.dealII
due to compilation being performed on SLES 9 SP3

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast   -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1

Base Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Fortran benchmarks:

 -IPA:max_jobs=2

Benchmarks using both Fortran and C:

 -IPA:max_jobs=2

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_TABLE_WORKAROUND
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:cflow=off   -LNO:prefetch=1   -OPT:malloc_alg=1
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-exceptions
447.dealII:  -Ofast   -INLINE:aggressive=on   -LNO:opt=0   -OPT:alias=disjoint   -m32   -fno-exceptions
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -LNO:prefetch=1   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Ofast   -CG:local_fwd_sched=on   -LNO:blocking=off   -LNO:interchange=off   -LNO:fu=10   -LNO:full_unroll_outer=on
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Ofast   -LNO:fission=2   -LNO:prefetch=0
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -Ofast   -LNO:simd=0   -WOPT:mem_opnds=on
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Fortran benchmarks:

 -IPA:max_jobs=2

Benchmarks using both Fortran and C:

 -IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.xml.
