SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL580 G4
(3.2 GHz, Intel Xeon processor 7130M)

CPU2006 license: 3 Test date: Jul-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Aug-2006
Tested by: Hewlett-Packard Company Software Availability: May-2007

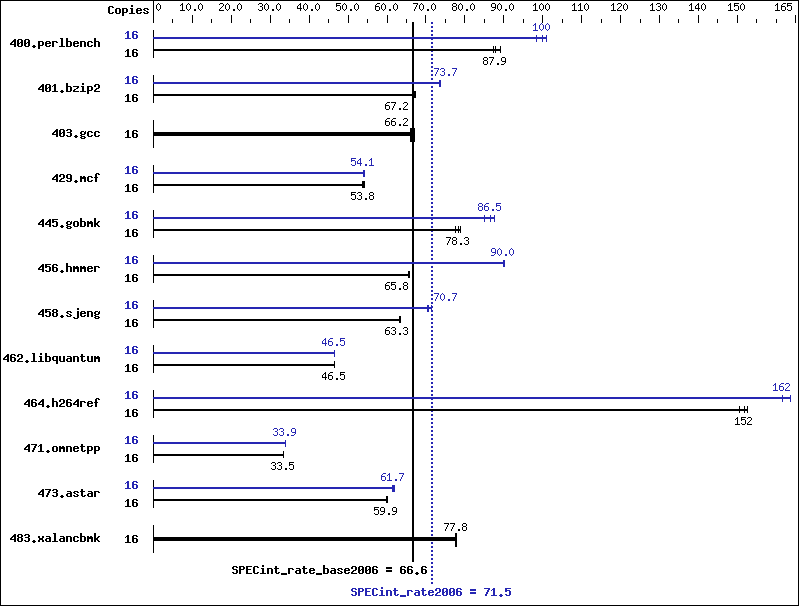

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7130M
CPU Characteristics: 3.2 GHz, 800 MHz system bus
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16x2 GB PC2-3200R)
Disk Subsystem: 1x72 GB 15 K SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for IA32/EM64T
applications, Version 10.0
Build 20070426 Package ID: l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap 8.1 libraries

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 16 1779 87.9 1791 87.3 1755 89.1 16 1563 100   1590 98.3 1547 101
401.bzip2 16 2296 67.2 2299 67.2 2295 67.3 16 2095 73.7 2098 73.6 2093 73.8
403.gcc 16 1948 66.1 1920 67.1 1945 66.2 16 1948 66.1 1920 67.1 1945 66.2
429.mcf 16 2711 53.8 2712 53.8 2697 54.1 16 2699 54.1 2698 54.1 2700 54.0
445.gobmk 16 2164 77.6 2144 78.3 2131 78.8 16 1941 86.5 1972 85.1 1915 87.6
456.hmmer 16 2267 65.8 2275 65.6 2269 65.8 16 1657 90.1 1658 90.0 1660 90.0
458.sjeng 16 3065 63.2 3048 63.5 3057 63.3 16 2712 71.4 2739 70.7 2750 70.4
462.libquantum 16 7126 46.5 7126 46.5 7128 46.5 16 7129 46.5 7134 46.5 7133 46.5
464.h264ref 16 2351 151   2330 152   2320 153   16 2164 164   2192 162   2190 162
471.omnetpp 16 2989 33.5 2988 33.5 2986 33.5 16 2944 34.0 2946 33.9 2948 33.9
473.astar 16 1875 59.9 1876 59.9 1872 60.0 16 1818 61.8 1828 61.4 1820 61.7
483.xalancbmk 16 1418 77.8 1418 77.8 1421 77.7 16 1418 77.8 1418 77.8 1421 77.7

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

 BIOS configuration:
  Power Regulator Disabled
  Adjacent Sector Prefetch Enabled
  Hardware Prefetcher Enabled
  Hyper-Threading Technology Enabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xP   -ipo   -O3   -static   -no-prec-div

C++ benchmarks:

 -xP   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/cpu2006.1.0/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div
403.gcc:  basepeak = yes
429.mcf:  -xP   -ipo   -O3   -static   -no-prec-div   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll4
462.libquantum:  Same as 458.sjeng
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/cpu2006.1.0/SmartHeap_8.1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic10-flags.20090714.03.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic10-flags.20090714.03.xml.
