SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS H250, Intel Core 2 Duo T7700 processor

CPU2006 license: 22 Test date: Aug-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Jul-2007
Tested by: Fujitsu Siemens Computers Software Availability: Jun-2007

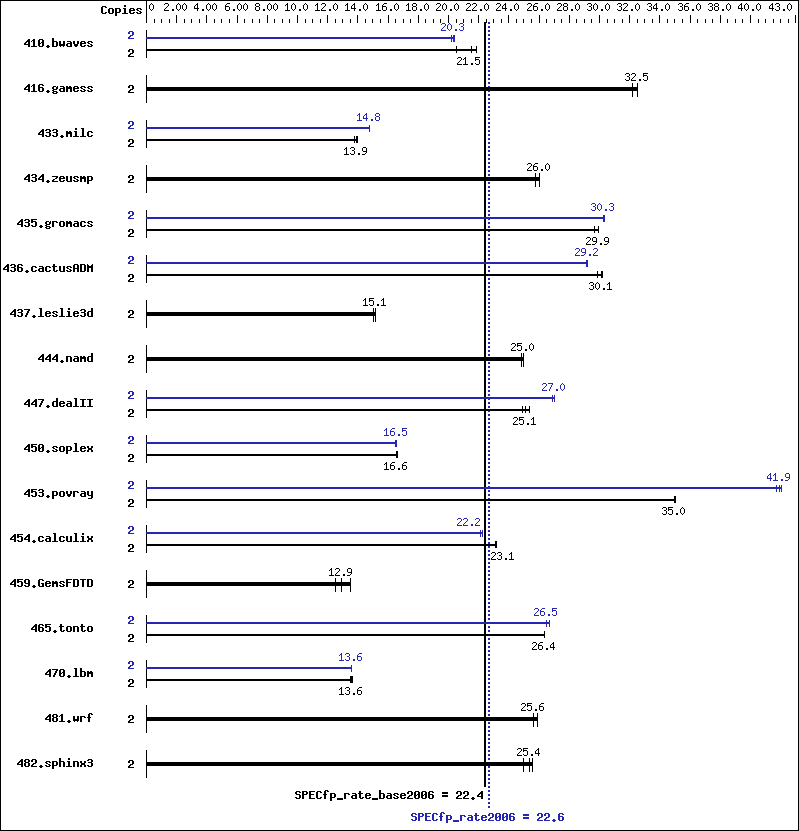

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo T7700
CPU Characteristics:
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2x1 GB 667 MHz CL5 DDR2 SDRAM)
Disk Subsystem: 1 x 80 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate, 64 bit Version
Compiler: Intel C++ Compiler
. for applications running on Intel 64,
. Version 10.0.026, Build 20070613
Intel Visual Fortran Compiler
. for applications running on Intel 64,
. Version 10.0.026, Build 20070613
Microsoft Visual Studio 2005 with SP1
. (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: Microquill SmartHeap Library 8.0 (64-bit version)

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1264 21.5 1245 21.8 1326 20.5 2 1331 20.4 1347 20.2 1337 20.3
416.gamess 2 1204 32.5 1204 32.5 1217 32.2 2 1204 32.5 1204 32.5 1217 32.2
433.milc 2 1316 13.9 1322 13.9 1330 13.8 2 1243 14.8 1244 14.8 1243 14.8
434.zeusmp 2 699 26.0 698 26.1 707 25.7 2 699 26.0 698 26.1 707 25.7
435.gromacs 2 477 29.9 477 29.9 481 29.7 2 472 30.3 471 30.3 471 30.3
436.cactusADM 2 793 30.1 791 30.2 801 29.9 2 819 29.2 820 29.1 818 29.2
437.leslie3d 2 1242 15.1 1242 15.1 1250 15.0 2 1242 15.1 1242 15.1 1250 15.0
444.namd 2 643 25.0 642 25.0 646 24.8 2 643 25.0 642 25.0 646 24.8
447.dealII 2 902 25.4 912 25.1 919 24.9 2 846 27.0 846 27.0 851 26.9
450.soplex 2 1002 16.6 1006 16.6 1008 16.6 2 1007 16.6 1009 16.5 1011 16.5
453.povray 2 304 35.0 304 35.0 304 35.0 2 255 41.7 253 42.0 254 41.9
454.calculix 2 715 23.1 712 23.2 714 23.1 2 745 22.1 742 22.2 742 22.2
459.GemsFDTD 2 1573 13.5 1646 12.9 1693 12.5 2 1573 13.5 1646 12.9 1693 12.5
465.tonto 2 746 26.4 747 26.4 747 26.3 2 743 26.5 738 26.7 743 26.5
470.lbm 2 2011 13.7 2029 13.5 2021 13.6 2 2021 13.6 2021 13.6 2021 13.6
481.wrf 2 862 25.9 871 25.6 872 25.6 2 862 25.9 871 25.6 872 25.6
482.sphinx3 2 1524 25.6 1561 25.0 1535 25.4 2 1524 25.6 1561 25.0 1535 25.4

Platform Notes

BIOS default settings have been used.

General Notes

'start /b /wait /affinity' command is used to bind CPU(s) to processors.
The Windows command "start /b /wait /affinity <hex_affinity_mask> application"
  starts the specified application without creating a new window (/b)
  and waits for its termination (/wait). Only the processors specified
  in <hex_affinity_mask> are allowed to execute the application.
  See the Windows documentation for the description of other parameters
  of the start command.


For information about Fujitsu Siemens Computers in your country please see:
http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -F950000000   shlW64M.lib

C++ benchmarks:

 -fast   -Qcxx-features   -F950000000   shlW64M.lib

Fortran benchmarks:

 -fast   -F950000000

Benchmarks using both Fortran and C:

 -fast   -F950000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
470.lbm:  Same as 433.milc
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F950000000
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
436.cactusADM:  Same as 435.gromacs
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.32.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.32.xml.
